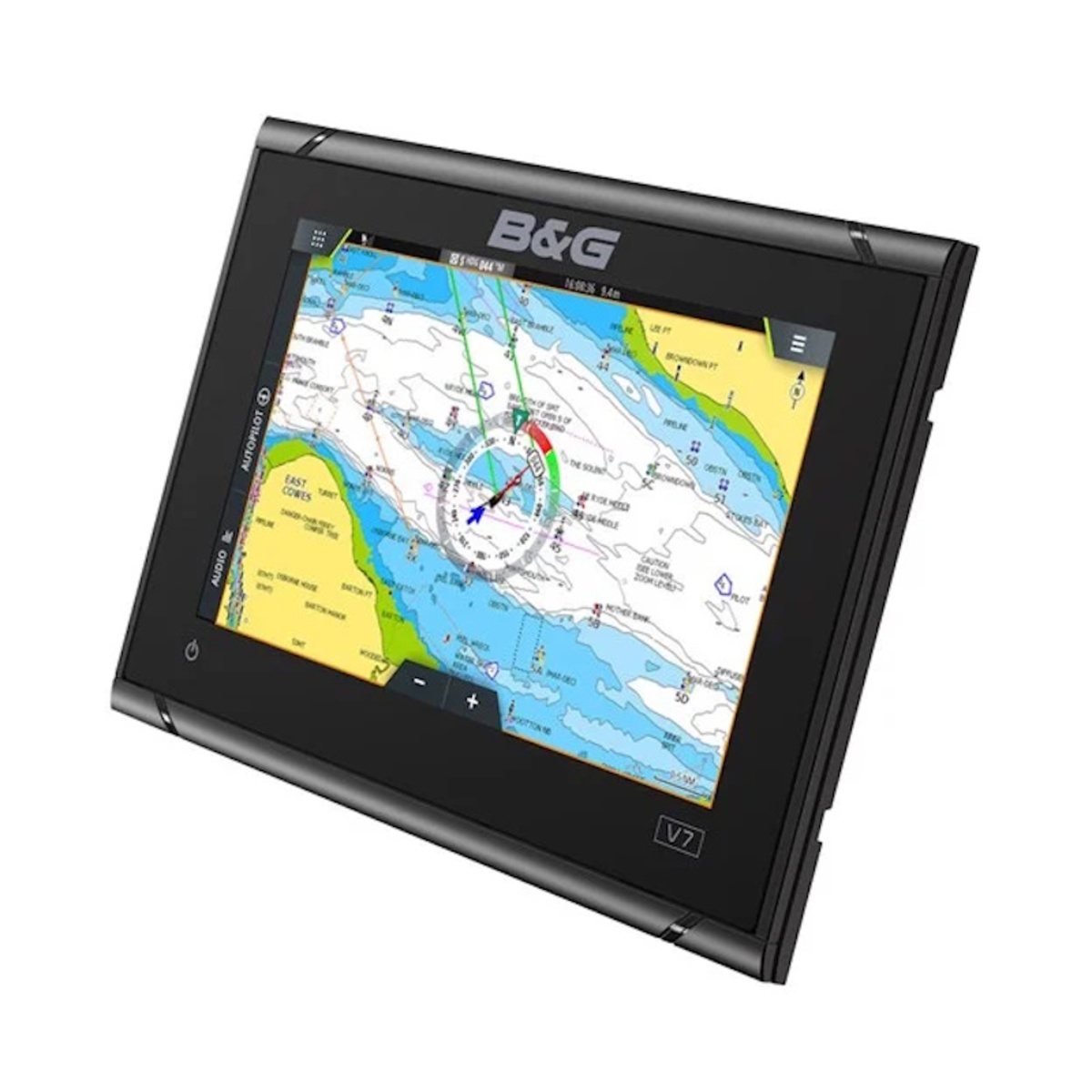

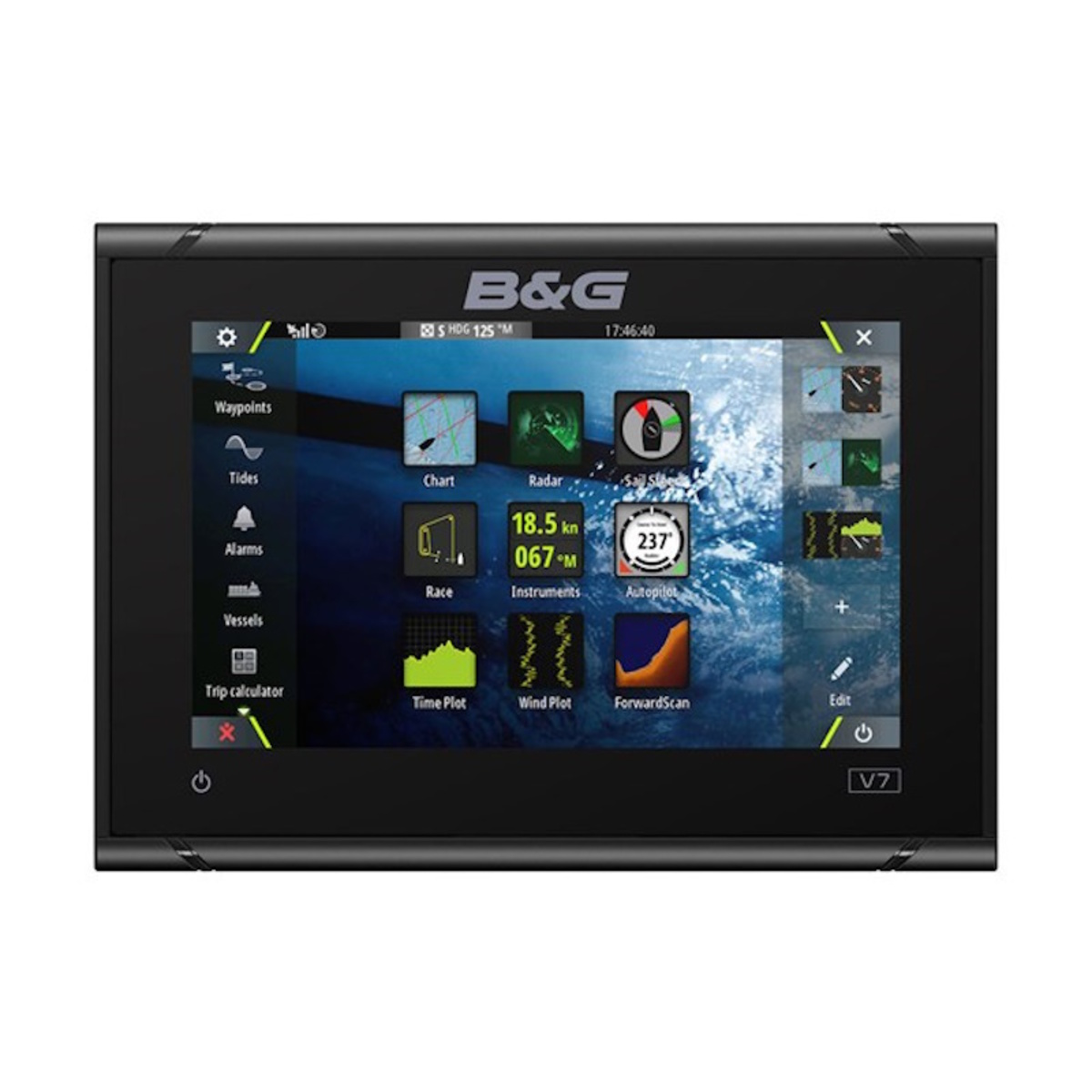

B&G Vulcan 7 7" Sailing Chartplotter – No XD
The B&G Vulcan 7 is a 7-inch multi-touch sailing chartplotter designed for coastal cruising and club racing. It combines an intuitive touchscreen interface with B&G's dedicated sailing features, including SailSteer, Laylines, SailingTime and RacePanel. With built-in 10Hz GPS and Wi-Fi, plus support for NMEA 2000, radar, ForwardScan and B&G autopilots, the Vulcan 7 can operate as a standalone chartplotter or form the centre of a larger marine electronics system.
Features:
- 7-inch high-visibility multi-touch display
- 800 × 480 pixel resolution
- 1200-nit screen brightness
- Dedicated B&G sailing features

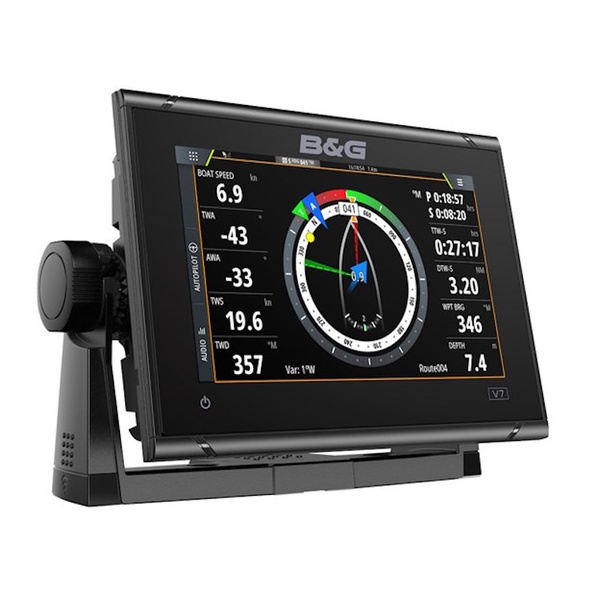

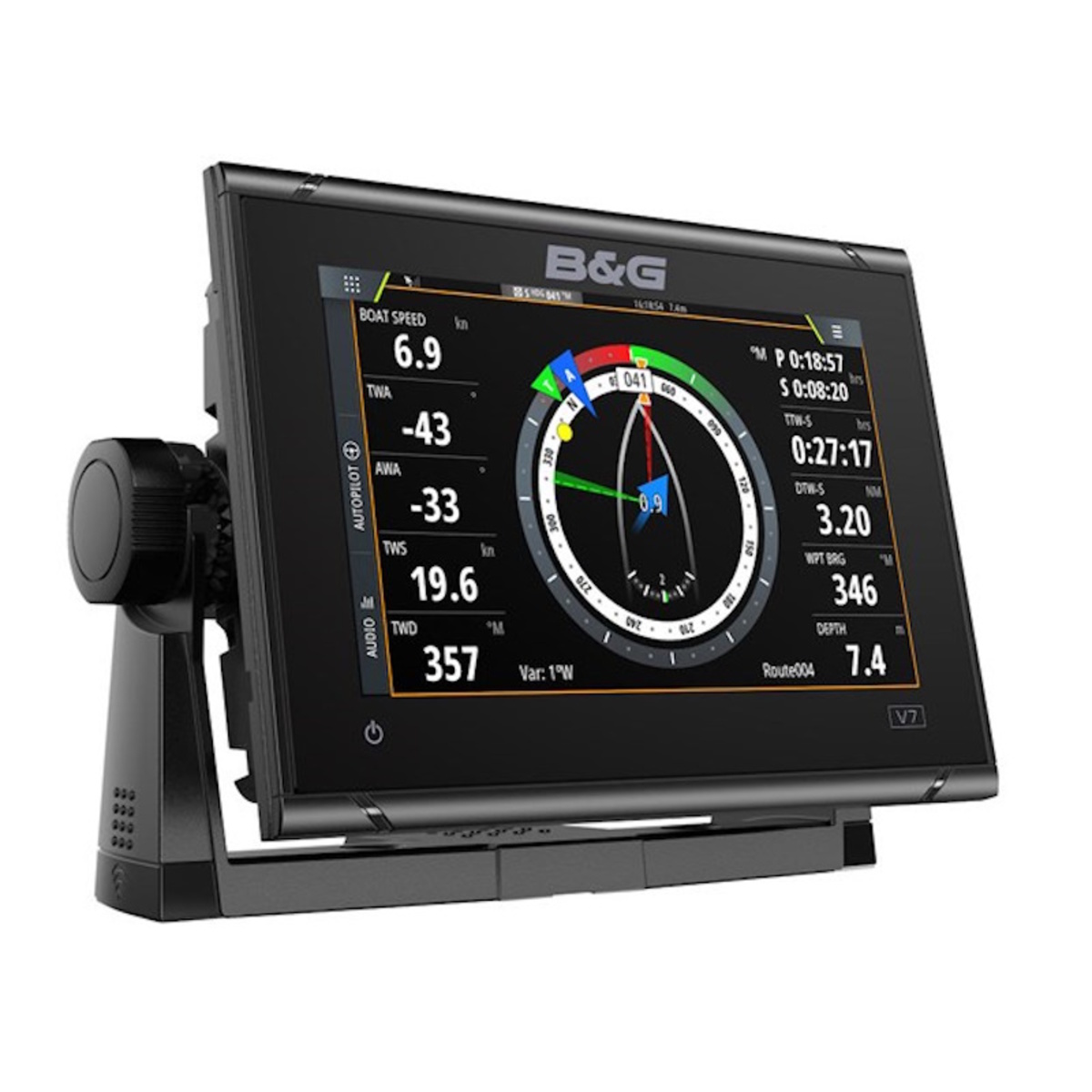

- SailSteer displays wind, speed, tide, heading, COG, laylines and waypoint information
- Laylines help optimise tacking and routing
- SailingTime calculates estimated time to waypoint based on wind and tidal effects
- RacePanel provides start-line information including time, distance and positioning
- Built-in 10Hz GPS
- Integrated Wi-Fi and Bluetooth
- NMEA 2000 connectivity

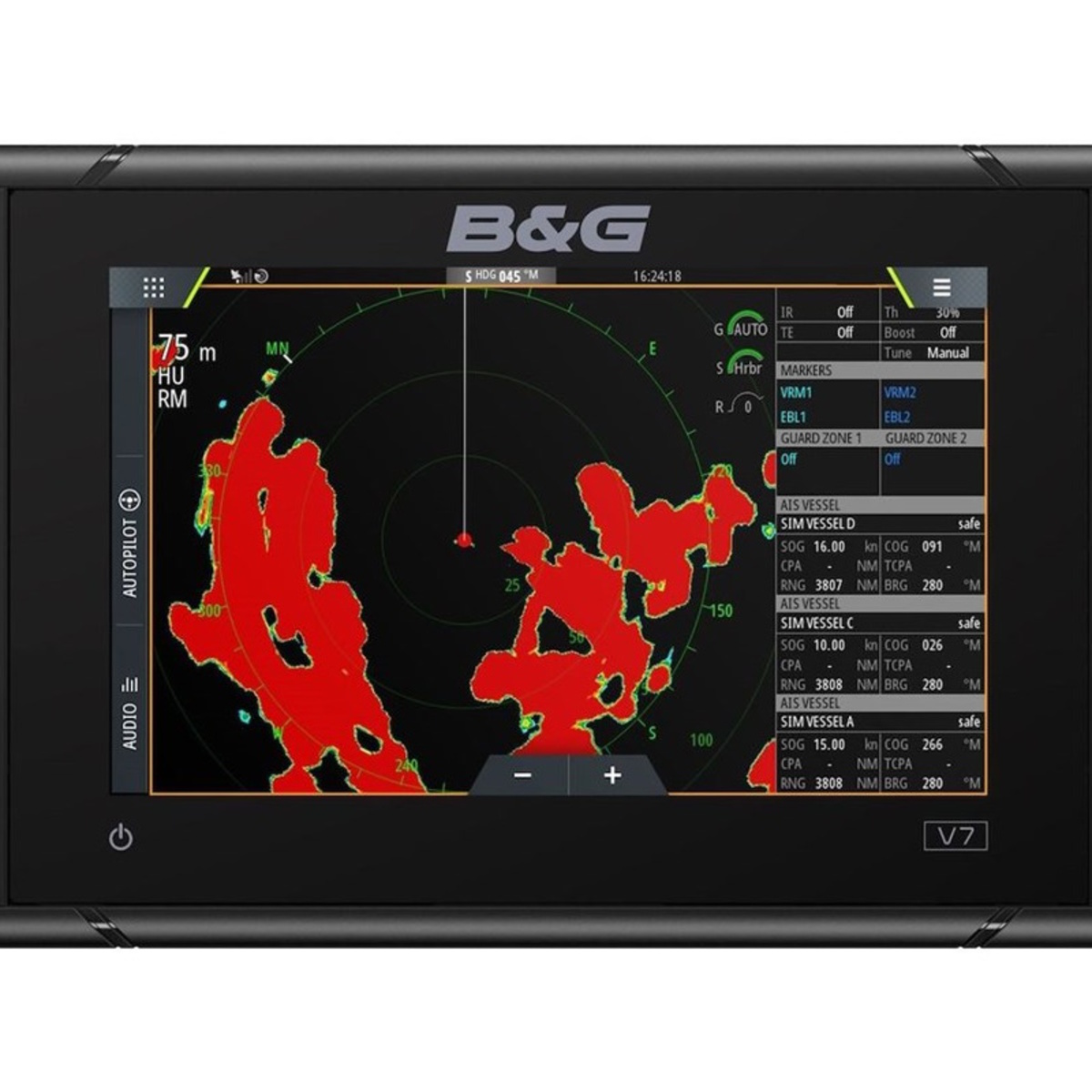

- Radar ready
- ForwardScan ready
- Integrated CHIRP, DownScan and ForwardScan sonar capability
- B&G autopilot integration
- AIS data support via NMEA 2000
- BEP C-Zone digital switching support
- FusionLink and SonicHub2 multimedia support
- GRIB weather support
- MicroSD card slot
- Bracket or panel mounting
- IPX6 and IPX7 waterproof rating
Ideal For:
- Sailing yachts
- Coastal cruising
- Club racing
- Sailors wanting dedicated sailing navigation features
- Boats requiring an expandable marine electronics system
- Integration with B&G instruments, radar and autopilot systems
Specifications:
- Brand: B&G
- Model: Vulcan 7
- Display size: 7 inches
- Display resolution: 800 × 480 pixels
- Screen brightness: 1200 nits
- Viewing angles: 80° top/bottom and 80° left/right
- GPS: Internal 10Hz
- GPS accuracy: Approximately 3m horizontal accuracy
- GPS receiver: 32 channels
- NMEA 2000: 1 × Micro-C port, 1 LEN
- Ethernet: 1 × 5-pin yellow connector
- Wi-Fi: Built in
- Bluetooth: Built in
- MicroSD: 1 × slot, up to 32GB
- Internal storage: 90MB
- Sonar: Integrated CHIRP / DownScan / ForwardScan
- Sonar connector: 1 × 9-pin Xsonic
- Supported charts: Insight, Navionics and C-MAP
- Waypoints: 6,000
- Routes: 500, with up to 100 points per route
- Tracks: 50, with up to 12,000 track points
- Supply voltage: 12V DC (10–17V)
- Maximum power consumption: 20W
- Typical power consumption: 12W
- Recommended fuse: 3A
- Waterproof rating: IPX6 & IPX7
- Operating temperature: -15°C to +55°C
- Mounting: Bracket or panel
- Dimensions: 197W × 141H × 82.7D mm
- Weight: 1.32kg
What's Included:
- B&G Vulcan 7 display
- Mounting hardware
- Power/data connection components
- Documentation
Why You'll Love It:
The Vulcan 7 is designed specifically around the needs of sailors rather than being a general-purpose chartplotter. Its dedicated sailing functions make it particularly useful for both cruising and racing, while built-in GPS, Wi-Fi, NMEA 2000 and support for radar, ForwardScan and autopilot systems allow it to grow with your boat's electronics setup.
