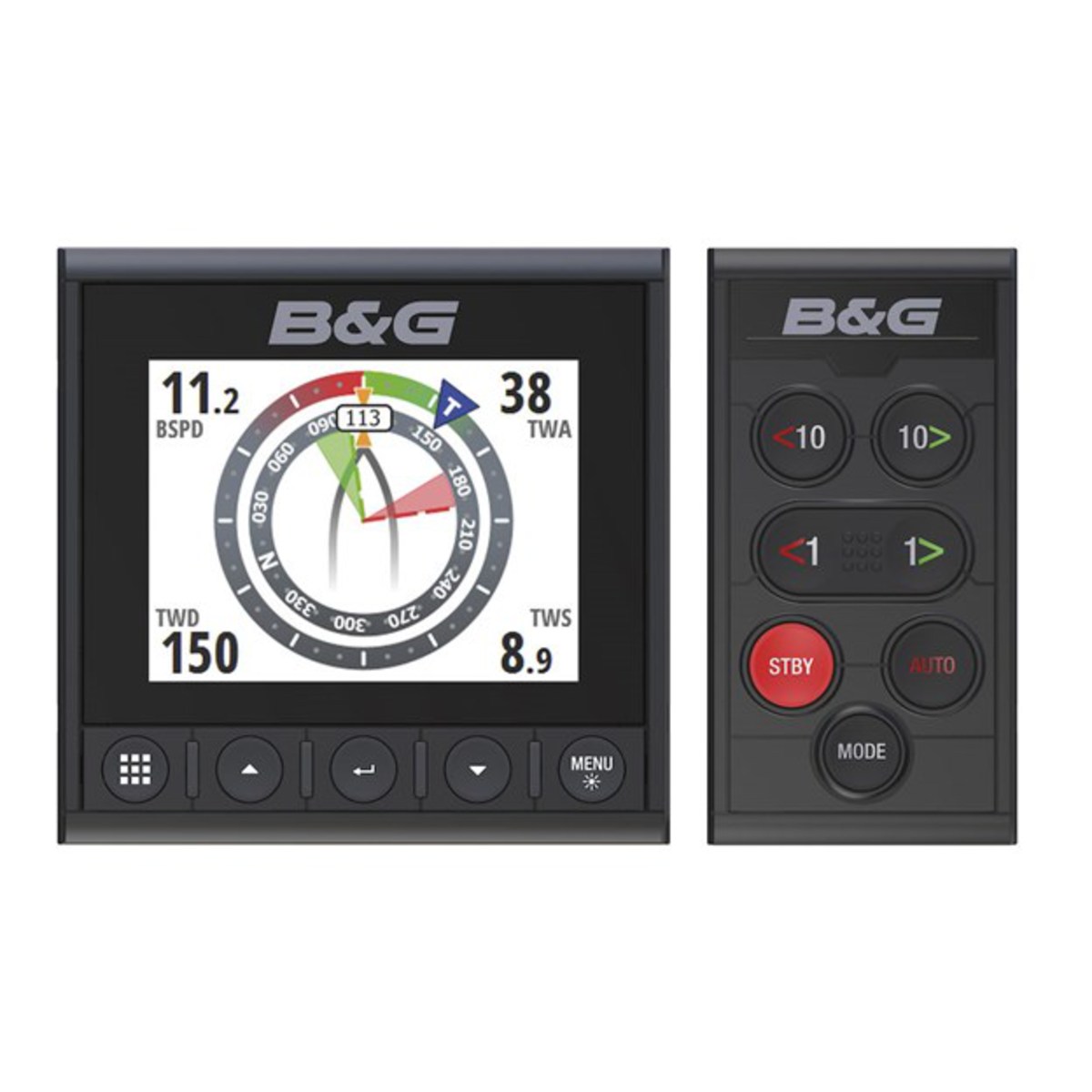

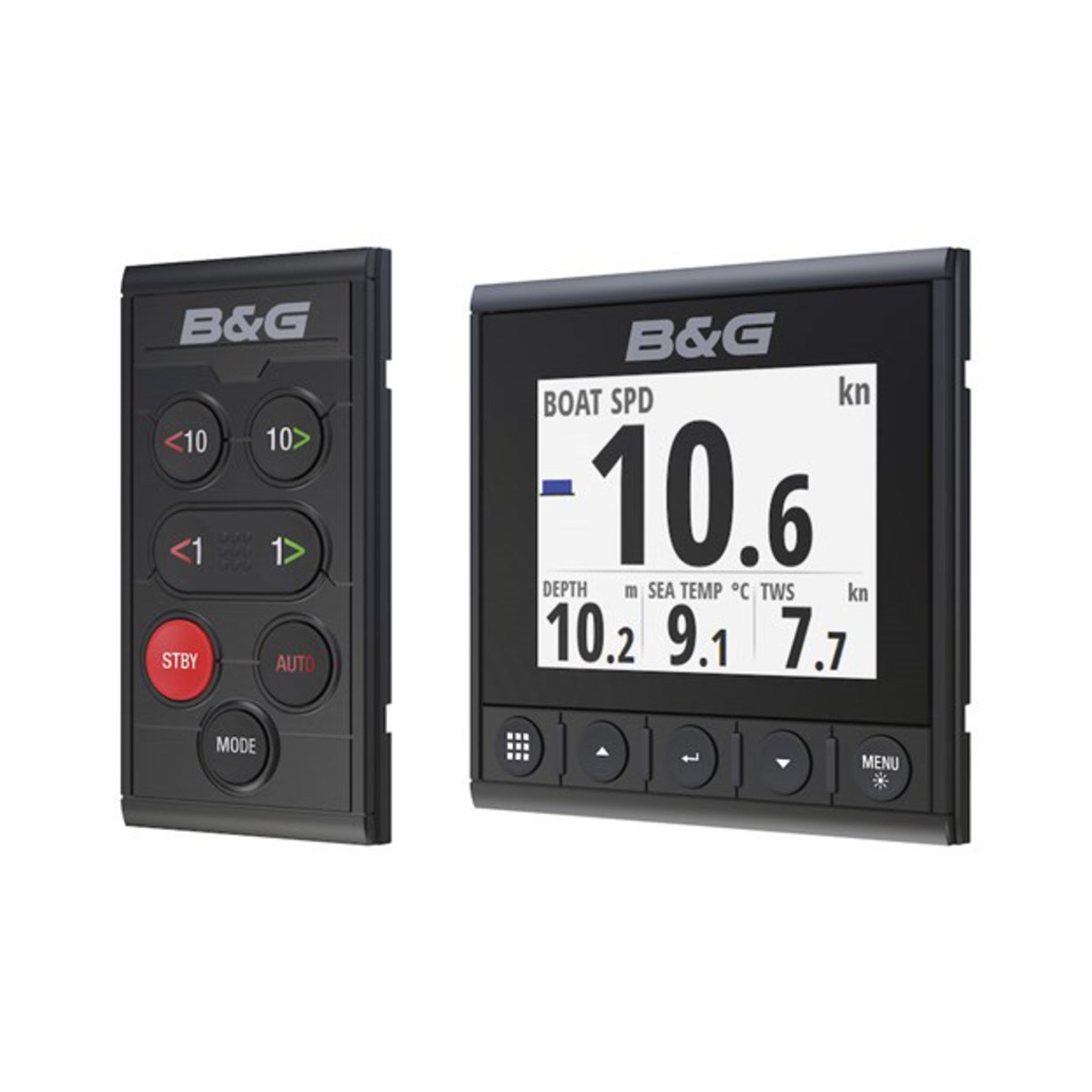

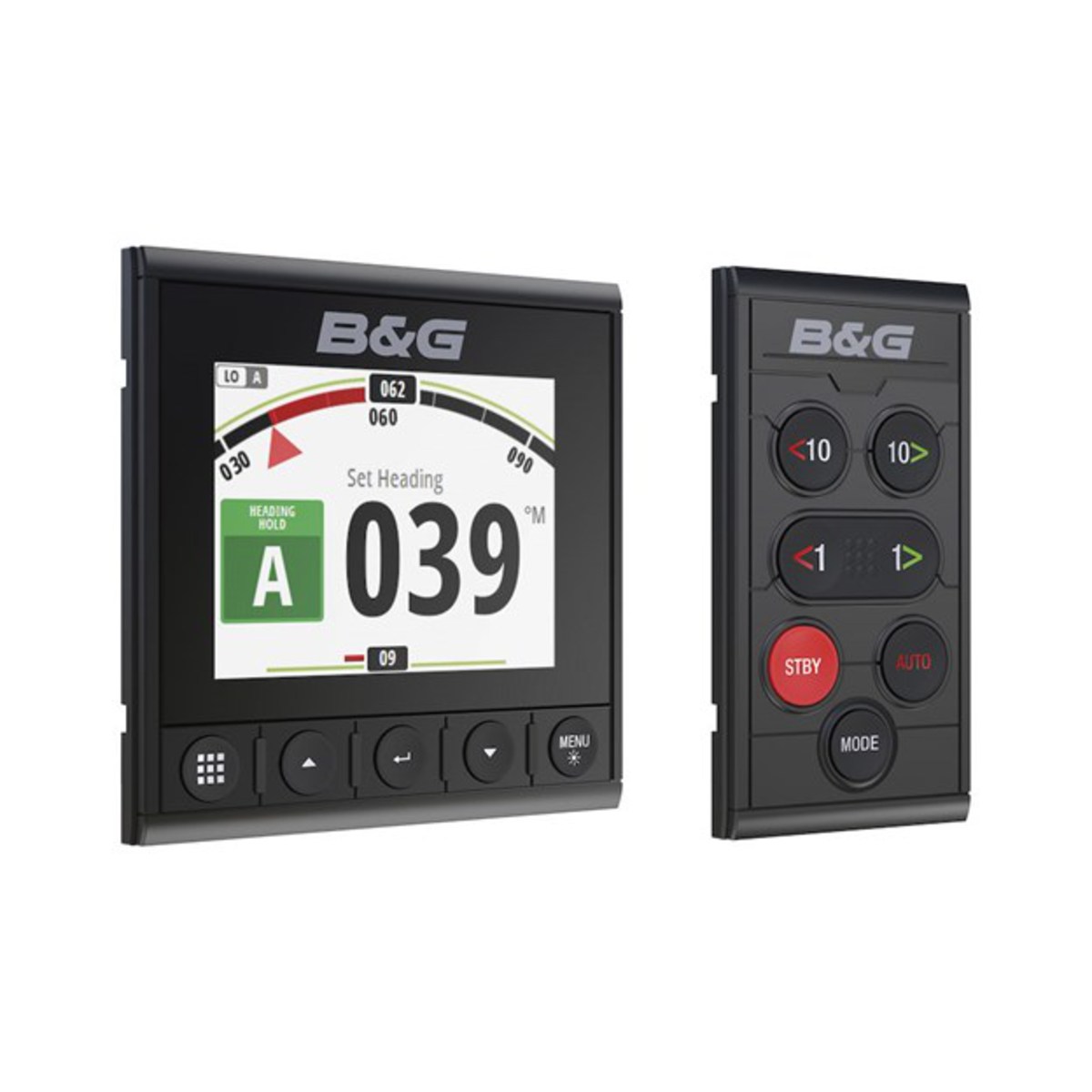

B&G Triton² Autopilot Controller & Display Pack – 000-13561-001
The B&G Triton² Autopilot Controller & Display Pack combines a 4.1-inch Triton² Digital Display with the dedicated Triton² Pilot Controller, creating a versatile autopilot control and sailing instrument solution designed specifically for sailors.
The Triton² display features a bright, optically bonded colour screen with transflective LCD technology, providing excellent visibility across a wide range of lighting conditions. Its low-profile design sits just 8mm proud when flush mounted, while NMEA 2000® connectivity allows it to display compatible sailing and navigation data available across your onboard network.
Paired with the Triton² Pilot Controller, the system provides dedicated autopilot control including compass steering, wind steering, Smart Manoeuvre tacking controls and chartplotter integration for waypoint and route navigation when connected to a compatible B&G autopilot system and network equipment.
Features
- Triton² Digital Display and dedicated Pilot Controller package
- 4.1-inch optically bonded colour display
- Transflective LCD technology for excellent daylight visibility
- LED backlighting for low-light and night use
- Customisable sailing data displays
- B&G SailSteer™ display functionality
- Dedicated autopilot status display
- Intelligent Sail Steering
- Compass and wind steering modes
- Smart Manoeuvre controls for tacking at the touch of a button
- Chartplotter integration for waypoint and route navigation
- Dedicated Auto and Standby autopilot controls
- Course adjustment in 1° and 10° increments
- NMEA 2000® certified
- Low-profile design
- Simple front-mount installation
- Designed specifically for sailing applications
Triton² Digital Display Specifications
- Brand: B&G
- Display: Triton² Digital Display
- Screen Size: 4.1"
- Display Resolution: 320 × 240
- Aspect Ratio: 4:3
- Display Technology: Optically Bonded Transflective LCD
- Backlight Colours: White, Red, Green & Blue
- Interface: Keypad
- NMEA 2000: 1 × Micro-C Port
- Supply Voltage: 12V DC (10–16V DC)
- Typical Power Consumption: 1.4W
- Maximum Power Consumption: 1.8W
- Recommended Fuse: 5A
- Waterproof Rating: IPX7
- Mounting: Flush Mount
- Dimensions: 118mm W × 115mm H × 37mm D
- Mounting Profile: Approximately 8mm
- Weight: 0.32kg
- Compass Safe Distance: 300mm
- Operating Temperature: -25°C to +65°C
- Warranty: 2 Years
Autopilot Controller Functions
The included Triton² Pilot Controller provides dedicated push-button control of a compatible B&G autopilot system, including:
- Auto and Standby controls
- Wind steering mode
- Navigation steering mode
- Compass heading control
- Smart Manoeuvre tacking
- Port and starboard course adjustments
- 1° and 10° course adjustment buttons
- Tactile controls designed for use with wet or gloved hands
The controller works alongside the Triton² display, which provides clear autopilot status and steering information.
What's in the Pack
- 1 × B&G Triton² Digital Display
- 1 × B&G Triton² Autopilot Controller / Pilot Keypad
- Associated installation components supplied with the pack
Note: This is an autopilot controller and display pack, not a complete autopilot system. A compatible autopilot computer, heading sensor, steering drive and other components may be required depending on your vessel and existing system.
Specifications
- Brand: B&G
- Product: Triton² Autopilot Controller & Display Pack
- SKU / Part Number: 000-13561-001
- Display Size: 4.1"
- Display Type: Colour Transflective LCD
- Autopilot Controller: Triton² Pilot Controller
- Networking: NMEA 2000®
- Application: Sailing Instrument & Autopilot Control
- Display Waterproof Rating: IPX7
Why You'll Love It
- Combines sailing instrumentation and dedicated autopilot control
- Bright, clear display designed for excellent visibility on the water
- Dedicated physical autopilot buttons provide quick access to key steering functions
- Smart Manoeuvre makes tacking control straightforward
- NMEA 2000 integration allows access to compatible sailing and navigation data
- Low-profile design provides a clean helm installation
- Purpose-built by B&G for sailing
