Vision EV Series Batteries provide superior performance, capacities and reliability.Using state of art dry cell technology the EV series is designed for environmentally sensitive areas that require enhanced cycle life capabilities in commercial, industrial, residential, and private applications.
The maintenancefree(VRLA) construction and advanced design features makes the EV Series the definitive choice for a wide variety of markets; Solar and Renewable Energy Storage; Electric Vehicle and Golf cart; Industrial equipment, Floor Machines,Forklifts, Aerial lifts, and Robotics; Marine, RV,and no-idle solutions; Mobility and Medical Equipment; Telecom, Broadband and Cable TV; UPS systems.
Features:
- High density lead paste and specialized paste formula for deep cycle application.
- High strength ABS or PP case & cover and valveregulated construction.
- Maintenance-free.
- High capacities.
- Environmentally friendly, Classified as “ Non-Spillable Battery” for transportation.
- High tin alloy grids offer: Less gassing, High corrosionresistant, Low self discharge, Alloy sheeting material for
deep cycle applications. - Exceptional adaptability to operate at high and low temperature environments.
- Durable copper and stainless steel terminals for high electric conductivity.
- Excellent cycle life: 80% DOD 800 cycles.
- Exclusive electrolyte formula and separator, For protecting the electrolyte density from stratification.
- Superior design allows for fast charge acceptance and resistance to over-discharge.

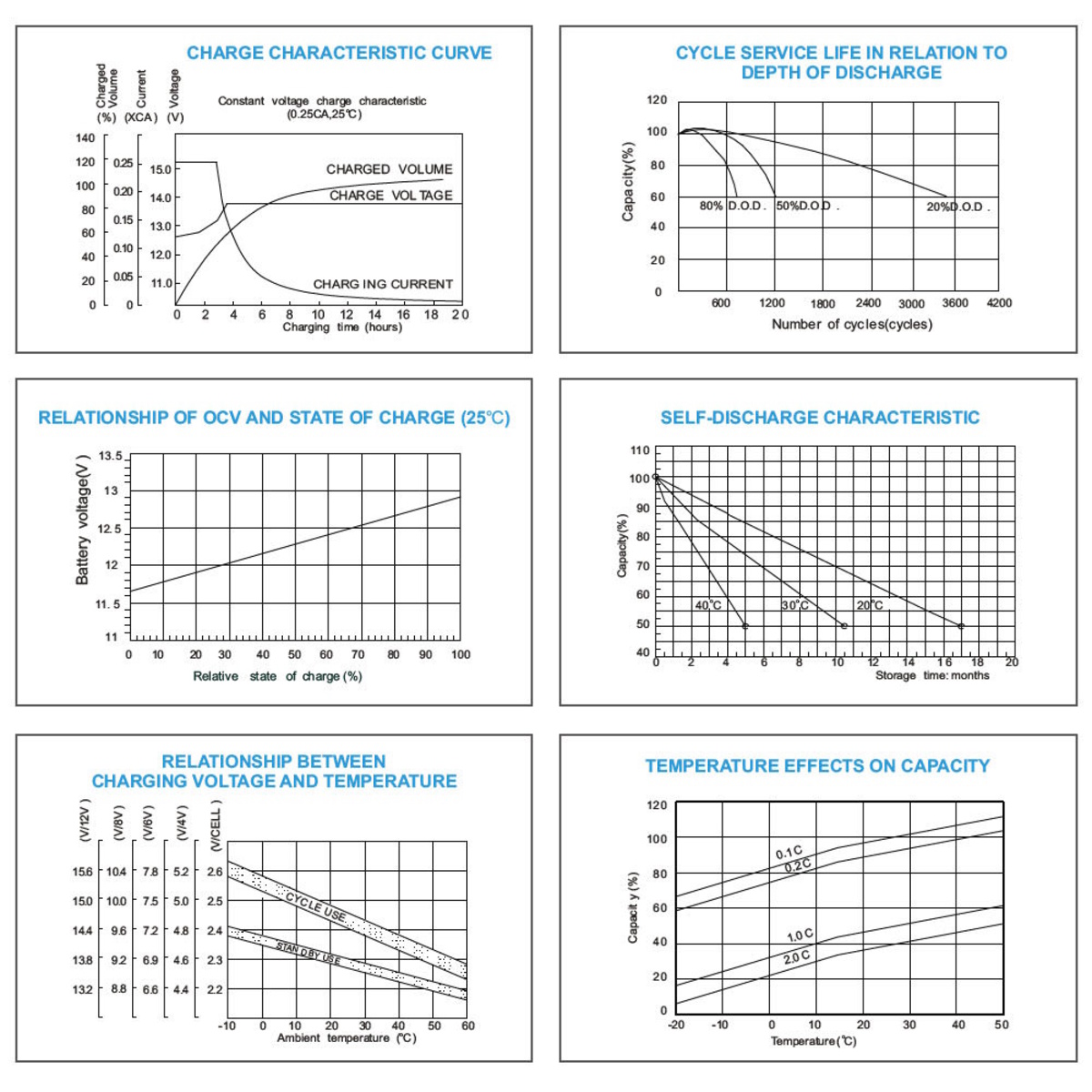

Performance Characteristics:
- Nominal Voltage: 12V
- Number of cell: 6
- Industry Type No.: 27
- Terninal: AM
- Container material: PP
- Amp Hours(AH)@( 77F25C):
20 hour rate (1.75V/Cell ) 100Ah F.V.
10 hour rate (1.75V/Cell) 95Ah F.V.
5 hour rate (1.75V/Cell) 86Ah F.V.
3 hour rate (1.75V/Cell) 80Ah F.V.
2 hour rate (1.75V/Cell) 70Ah F.V.
1 hour rate (1.75V/Cell) 60Ah F.V - Minutes of Discharge @ (80F/27C)
25A F.V.(1.75V/Cell) 195min
75A F.V.(1.75V/Cell) 53min - Internal Resistance
Fully Charged battery 77F (25C) <3.5 mOhms
Self-Discharge
3% of capacity declined per month at 20Caverage) - Cranking Amps
32F/0C 650
0F/-18C 500 - Max. Discharge Current 77F(25C): 800A(5s)
- Charge Methods: Constant Voltage Charge 77F(25C)
- Cycle use: 2.40-2.45VPC
- Initial Charging Current: 30.0A
- Float use: 2.20-2.30VPC
Dimensions and Weight:
- Length(mm / inch): 323 / 12.7
- Width(mm / inch): 172 / 6.8
- Height(mm / inch): 206 / 8.1
- Total Height(mm / inch): 226 / 8.9
- Approx. Weight(Kg / lbs): 29.5 / 65.0
* Weight deviation: ± 3%
