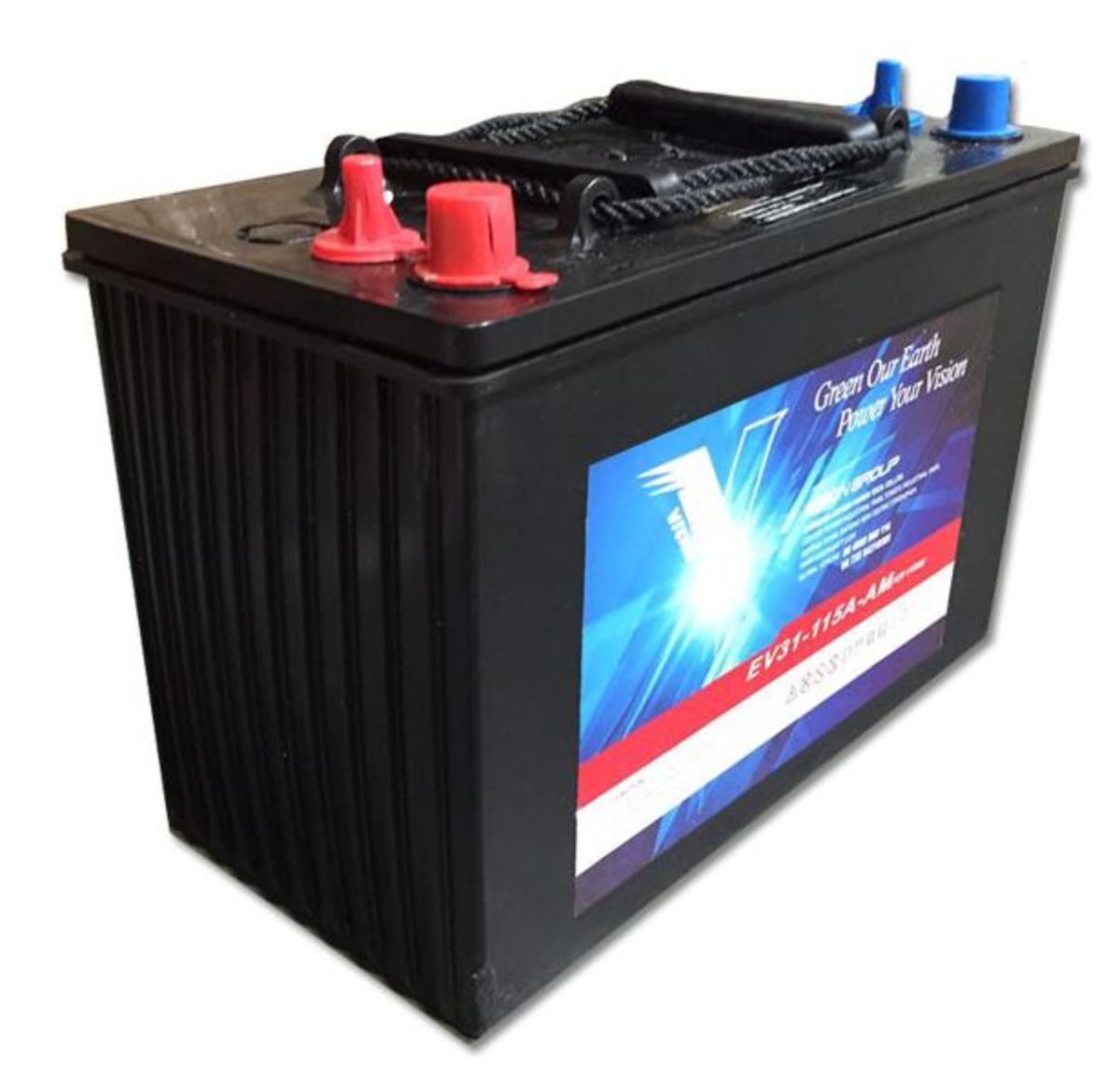

Vision EV Series Batteries provide superior performance, capacities and reliability. Using state of art dry cell technology the EV series is designed for environmentally sensitive areas that require enhanced cycle life capabilities in commercial, industrial, residential, and private applications.
The maintenancefree(VRLA) construction and advanced design features makes the EV Series the definitive choice for a wide variety of markets; Solar and Renewable Energy Storage; Electric Vehicle and Golf cart; Industrial equipment, Floor Machines,Forklifts, Aerial lifts, and Robotics; Marine, RV,and no-idle solutions; Mobility and Medical Equipment; Telecom, Broadband and Cable TV; UPS systems.
Features:
- Completely sealed valve regulated construction.
- Computer-aided 99.994% pure heavy-duty lead calcium grid designs.
- Wide range of operating temperatures (-40C to 60F).
- Low self discharge rates (Approx. 1%-3% monthly at 20C–25C / 68F–77F).
- Multi-terminal options.
- Terminal protectors.
- Compatible with sensitive electronic equipment.
- Quality Assurance processes with ISO (4400/992579), QS and TUV Certification EMC tested, CE, ETTS Germany (G4M19906-9202-E-16). UL recognized and approved components (MH25860).
- Tellcordia and Bellcore compliant.
Performance Characteristics:
- Nominal Voltage: 12V
- Industry Type No: 31
- Terninal: AM
- Ampere Hour Capacity:
20 hour rate 115AH
10 hour rate 105AH
5 hour rate 96AH - Minutes of Discharge: @25A 228min @75A 63min
- R/C @25A: 205
- Cranking Amps
32F/0C 975
0F/-18C 750 - Operatine Tempreture Range:
Discharge -20-60C
Charge -10-60C
Storage -20-60C - Short circuit current 20C: 3100A
- Charge Methods: constant voltage charging at 20C 968F)
- Standby use:
Maximum charging current: 0.3C10A
Charge Voltage: 13.6-13.8V
Tempreture Cpmpensation: -20mVC - Cyclic use:
Maximum charging current: 0.3C10A
Charge Voltage: 14.4-14.7V
Tempreture Cpmpensation: -30mVC
Dimensions and Weight:
- Length(mm / inch): 330 / 13.0
- Width(mm / inch): 169 / 6.7
- Height(mm / inch): 216 / 8.5
- Total Height(mm / inch): 236 / 9.3
- Approx. Weight(Kg / lbs): 74.1 / 33.6
* Weight deviation: ± 3%
