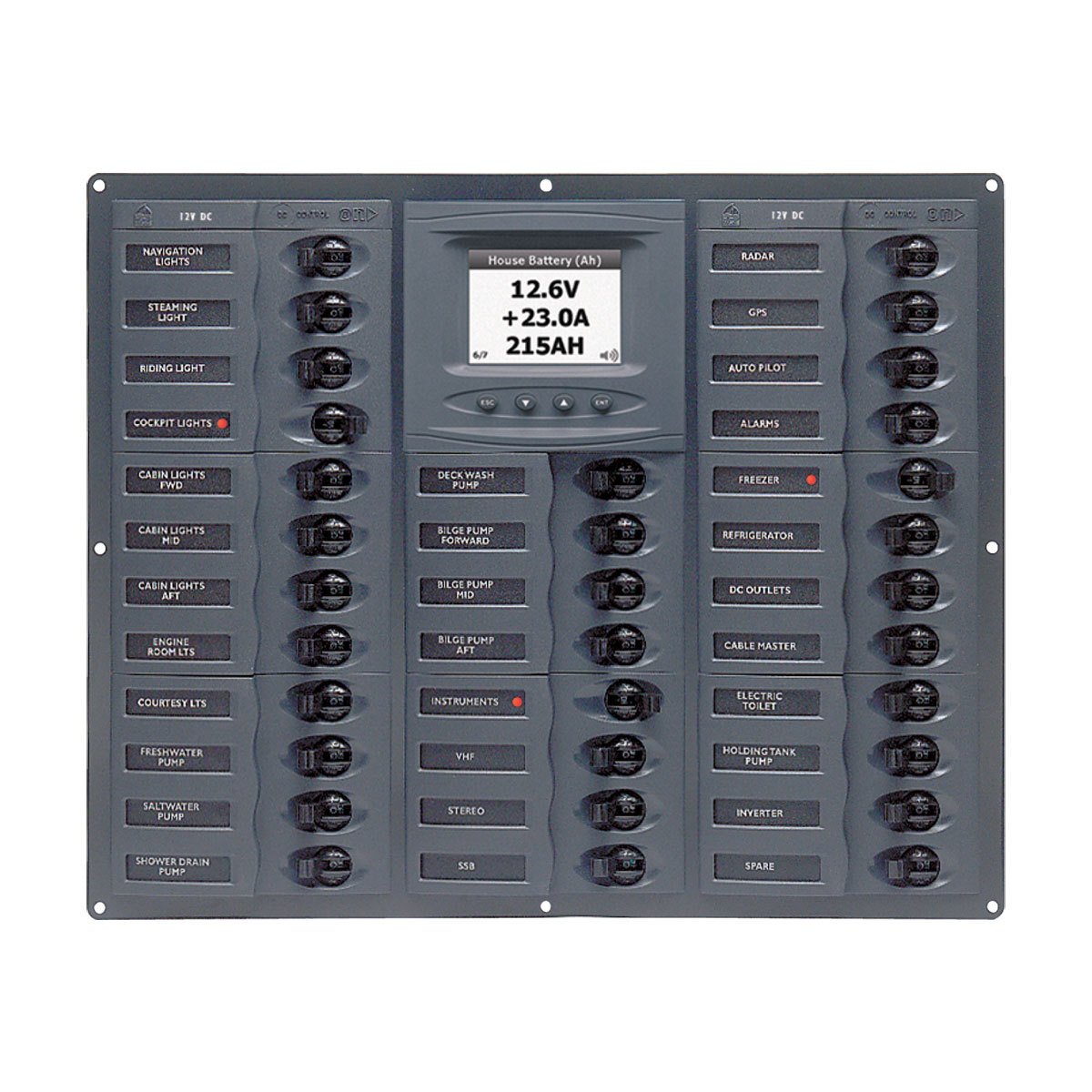

The BEP Millennium M32-DCSM is a 32-way DC circuit breaker panel with an integrated digital meter, designed for comprehensive electrical distribution, circuit protection and battery monitoring on boats and other marine applications.
The panel provides 32 single-pole circuit breaker positions and is suitable for 12V or 24V DC systems. The integrated BEP multifunction meter monitors voltage across up to three battery banks, while also displaying charge/discharge current and amp-hours remaining on the main battery bank.
Built with compact dimensions and a durable marine-grade construction, the Millennium panel features marine-quality magnetic, hydraulic, UL-listed, trip-free circuit breakers, backlit labels and a 24-way negative bus. The panel is rated for up to 160A per bus and is supplied with a 450A/50mA shunt for the digital monitoring system.
The M32-DCSM is an excellent choice for boats requiring a high-capacity, neatly organised DC electrical distribution and monitoring solution.
Features:
- BEP Millennium Series DC branch circuit breaker panel
- 32 individual circuit positions
- Integrated digital DC Systems Monitor
- Suitable for 12V or 24V DC systems
- Monitors voltage on up to 3 battery banks
- Displays charge/discharge current
- Displays amp-hours remaining on the main battery bank
- 160A maximum per bus
- 24-way negative bus
- Marine-quality magnetic, hydraulic, UL-listed, trip-free circuit breakers
- Single-pole circuit breakers
- Compact panel design
- Backlit circuit labels
- Durable marine-grade construction
- Digital meter provides comprehensive battery monitoring
- Supplied with 450A / 50mA shunt
- Suitable for marine electrical distribution applications
Circuit Breaker Configuration - The 32 circuits are supplied with:
- 7 × 5A
- 11 × 10A
- 11 × 15A
- 1 × 20A
- 1 × 25A
- 1 × 30A
- Total: 32 circuit positions
Specifications:
- Brand: BEP
- Series: Millennium
- Model: M32-DCSM
- System Voltage: 12V / 24V DC
- Number of Loads: 32
- Meter: Digital
- Breaker Type: Single-pole
- Maximum Amperage: 160A per bus
- Negative Bus: 24-way
- Panel Height: 285mm
- Panel Width: 351mm
- Depth / Intrusion: Approx. 64–65mm
- Shunt: 450A / 50mA
- Label Sheet: 1–4 & 6
Digital Meter Functions:
- Voltage monitoring for up to 3 battery banks
- Charge current monitoring
- Discharge current monitoring
- Amp-hour monitoring
- Amp-hours remaining on the main battery bank
- Battery monitoring through the BEP multifunction meter
- Can be used for additional monitoring functions depending on system configuration
- 24V Installation Note
