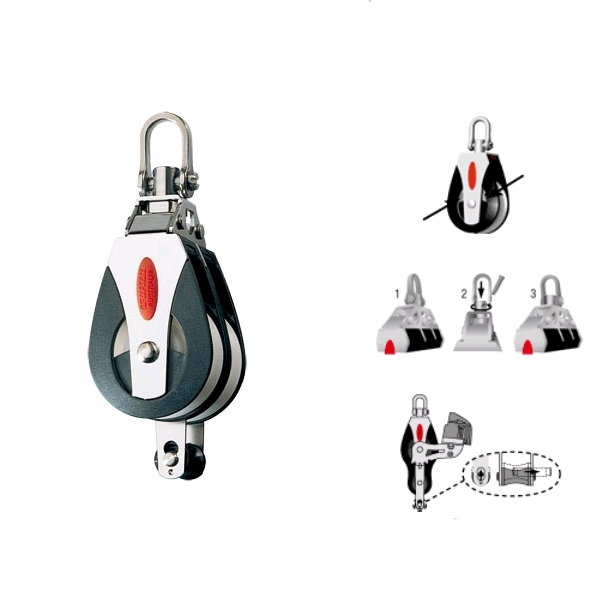

For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. Head can be locked at 0° or 90° by removing the shackle and changing the headpost orientation. . Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
- Sheave Ø 40 mm
- Max. Rope Ø 10 mm
- Max. Cable Ø - mm
- Pin Ø 5.0 mm
- M.W.L. 600 kg
- B. L. 1200 kg
- Weight 143 g
Features:
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Slotted pin shackle eliminates fouled lines
- Two way head post
- Snap fit removable becket pin
- Spare parts - RF41010 Replacement Becket Pin, RF150 shackle
Applications:
- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials:
- U.V. stabilised Acetal sheaves
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
