SKU #

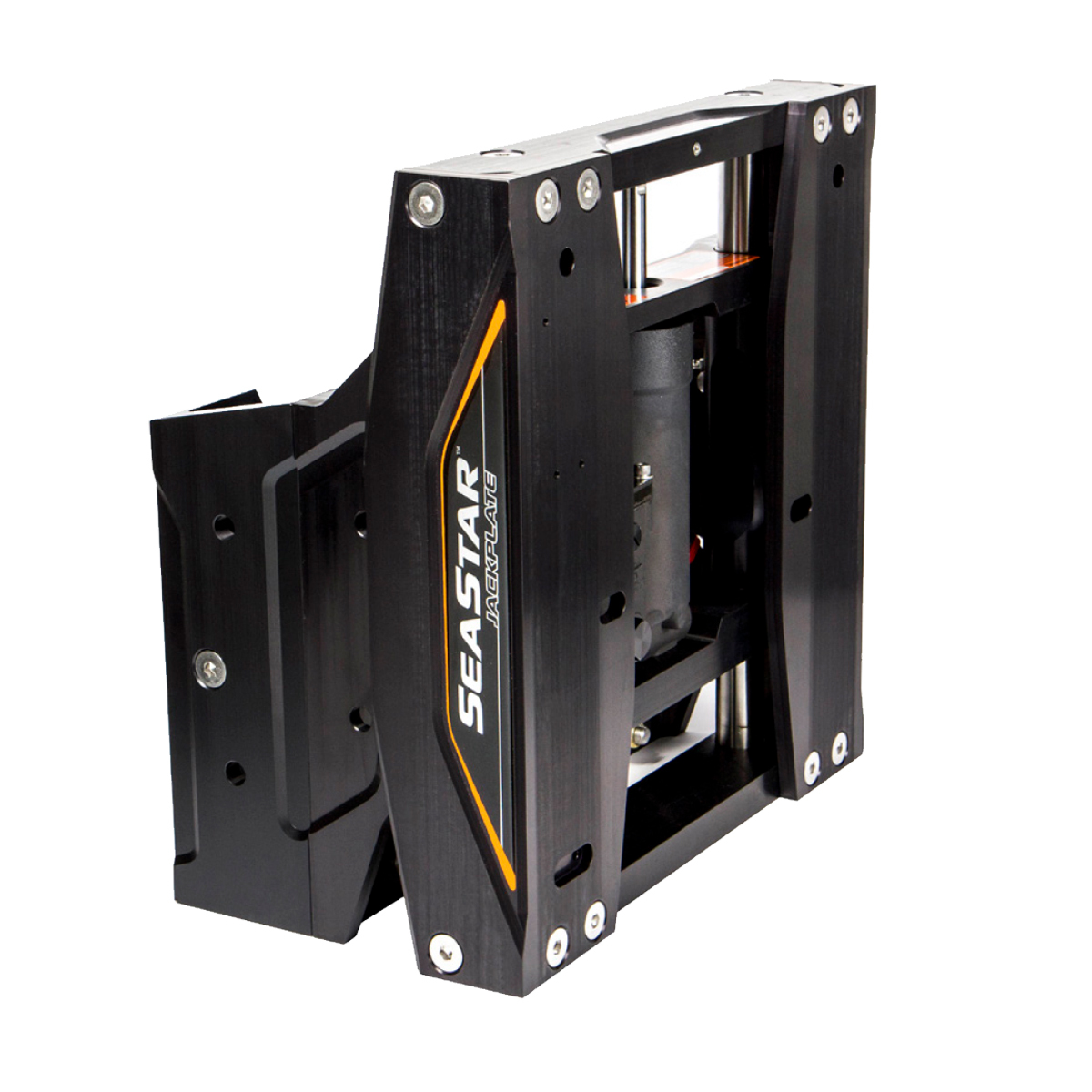

The SeaStar Standard Hydraulic Jack Plate is designed to optimise boat performance by allowing precise adjustment of your outboard engine height while underway. Featuring a powerful integrated hydraulic actuator and a 10" (254mm) setback, it offers potential improvements in speed, fuel economy and shallow-water operation.

Built for demanding marine conditions, this heavy-duty jack plate provides 5.8" (147mm) of vertical travel with a rapid 8.5-second hydraulic lift time. Suitable for outboard engines up to 300HP, its rigid construction delivers reliable engine support, while the setback design provides additional clearance for engine tilt and steering systems.

Features:

Hydraulic engine height adjustment for optimised boat performance
10" (254mm) setback for improved engine positioning
5.8" (147mm) of vertical travel
Rapid 8.5-second hydraulic lift time
High-output integrated hydraulic actuator
Suitable for outboard engines up to 300HP
Rigid construction provides engine support under full thrust
Allows engine height adjustment while underway
Designed to maximise engine tilt clearance with SeaStar steering cylinders
Compatible with Power-Pole and Talon anchoring systems using a separate adapter kit

Specifications:

Type: Hydraulic Outboard Jack Plate
Setback: 10" (254mm)
Vertical Travel: 5.8" (147mm)
Hydraulic Lift Time: 8.5 Seconds
Maximum Engine Rating: 300HP
Weight: 27.6kg
SmartStick Position Sensor: Not Included (Optional Accessory)
