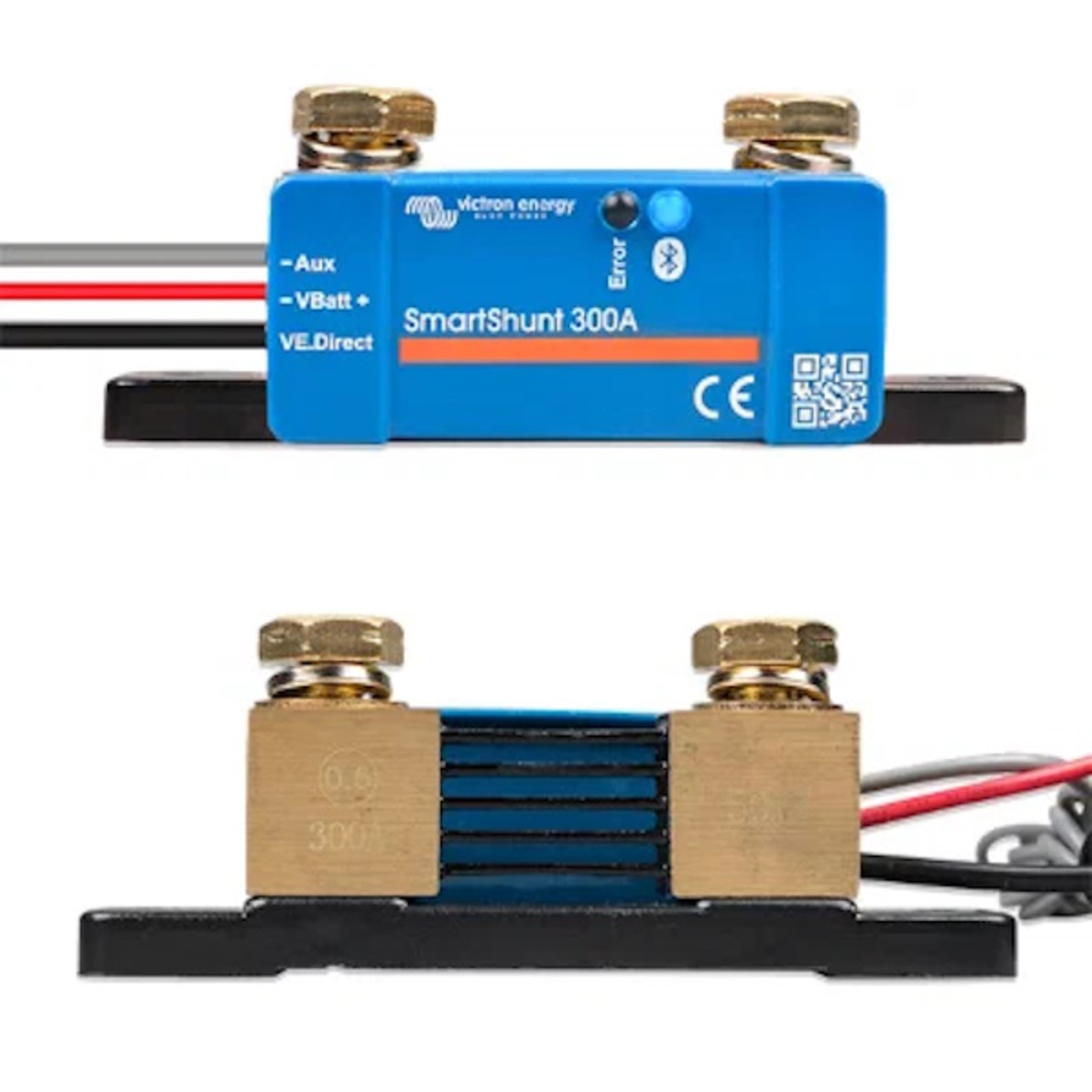

Victron SmartShunt IP65 300A/50mV Battery Monitor
The Victron SmartShunt IP65 300A/50mV is an all-in-one battery monitor designed to accurately track your battery's state of charge, voltage, current, power consumption and remaining runtime—all from your smartphone or tablet. Replacing the need for a traditional battery monitor display, the SmartShunt communicates wirelessly via Bluetooth using the free VictronConnect app, making installation simple while providing detailed battery performance data.
With an IP65 weather-resistant enclosure, this SmartShunt is ideal for marine, RV, caravan, off-grid and industrial applications where reliable battery monitoring is essential. It is suitable for monitoring 6.5V to 70V battery systems and features an auxiliary input that can be configured to monitor a second battery, midpoint voltage or temperature sensor.
Features
- All-in-one Bluetooth battery monitor and shunt
- 300A / 50mV current shunt
- IP65 weather-resistant housing
- Built-in Bluetooth Smart connectivity
- Works with the free VictronConnect app
- Monitors battery state of charge (SOC)
- Displays battery voltage and current
- Tracks power consumption and amp hours
- Calculates remaining runtime
- Historical battery performance logging
- Auxiliary input for second battery, midpoint or temperature monitoring
- VE.Direct communication port
- Supports firmware updates via Bluetooth
- Compact design for easy installation
- No separate display required
Ideal For
- Boats and marine electrical systems
- Caravans and motorhomes
- Campervans
- Off-grid solar systems
- 4WD dual battery systems
- Backup battery banks
- Industrial battery monitoring
- Lithium, AGM, Gel and Lead Acid batteries
Specifications
- Brand: Victron Energy
- Model: SmartShunt IP65
- Part Number: SHU065130050
- Product Type: Bluetooth Battery Monitor
- Continuous Current Rating: 300A
- Shunt Rating: 50mV
- Operating Voltage Range: 6.5–70V DC
- Current Consumption: Less than 1mA
- Communication: Bluetooth Smart & VE.Direct
- Enclosure Rating: IP65
- Auxiliary Input: Yes
- Temperature Monitoring: Optional
- Second Battery Monitoring: Yes
- Compatible App: VictronConnect
- Dimensions: 120 × 54 × 46mm
- Weight: 0.4kg
Why You'll Love It
- Monitor your batteries directly from your smartphone
- Eliminates the need for a separate battery monitor display
- Weather-resistant design suitable for harsh environments
- Accurate battery monitoring improves battery life
- Simple installation with integrated Bluetooth
- Ideal for modern lithium battery systems
- Trusted Victron Energy reliability and performance
