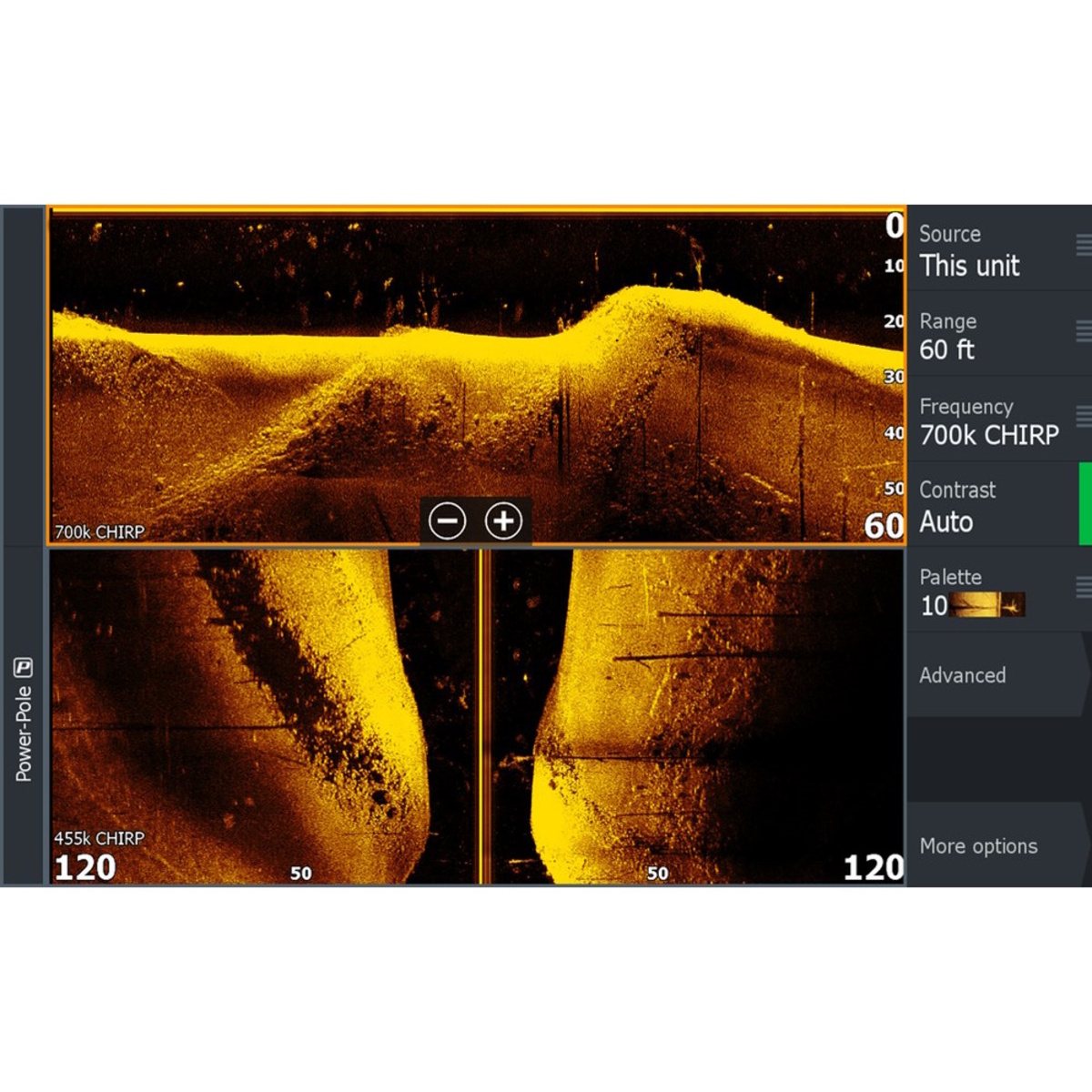

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easy.

Features:

High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
CHIRP with superb clarity and target separation
FishReveal™ with new SideScan* view as well DownScan
Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
Smart transducer design boosts signal clarity
Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
*Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO and NSS 4

Specifications:

Mounting TypeTransducer:Bracket Mount
WeightTransducer:2.67 lbs (1.21 kg)
Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range-22°F to 158°F (-30°C to 70°C )
Waterproof rating: IP67
Interface Direct Connect to: HDS ProS3100 Ehternet to:*HDS Live* Elite FS* Requires S3100 Module
