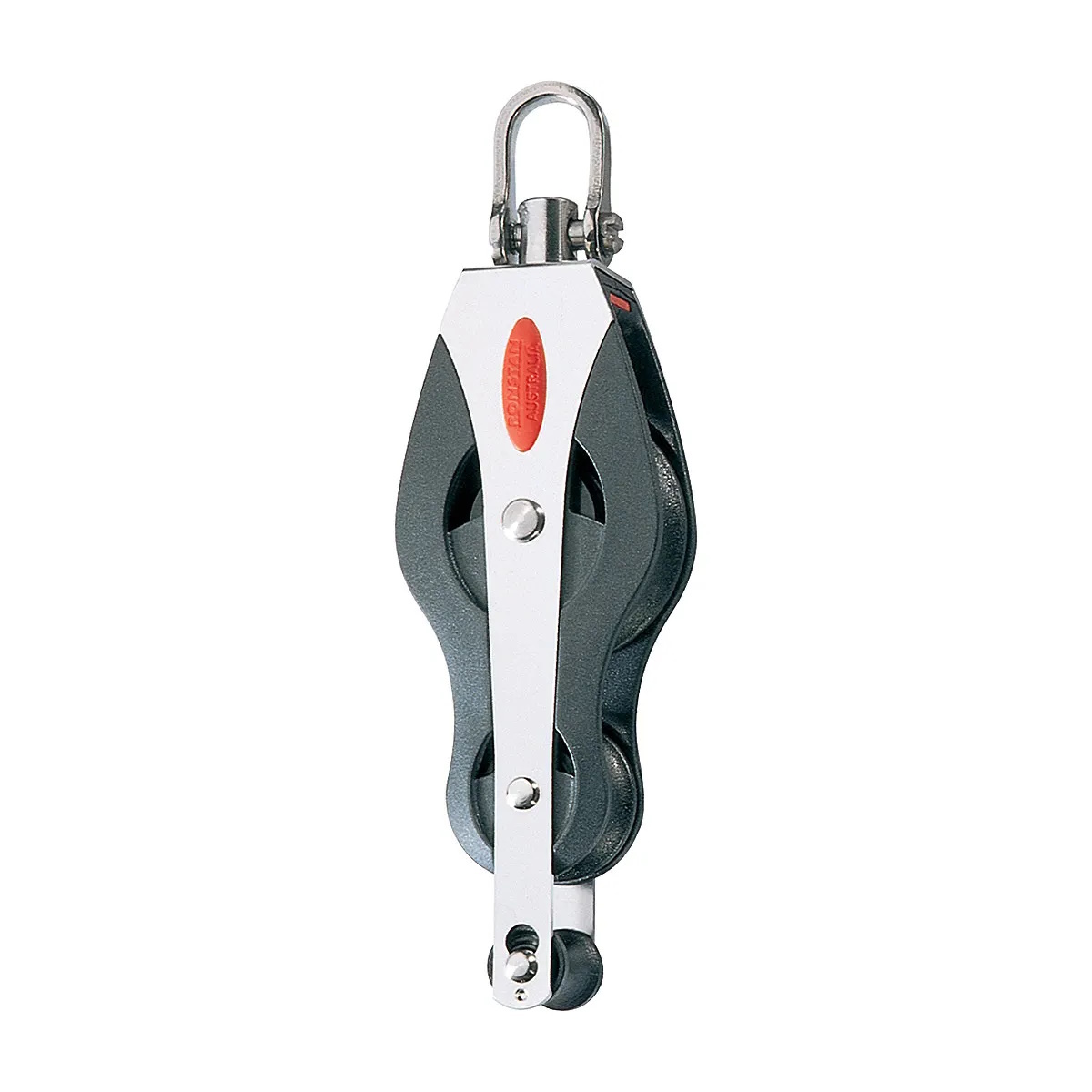

Sheaves running on Acetal ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Features:
- Low friction Acetal bearing system
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Captive Lock™ universal head
- Low friction, 2-stage ball bearing system
- High static and dynamic load capacity
- Lightweight
- Cheek cut-outs for easy bearing maintenance
Specifications:
- Type of Block: Stand-Up
- Sheave diameter: 40mm
- B.L.: 800kg
- M.W.L.: 350kg
- Max. Rope diameter: 10mm
- Weight: 71g
- Fastener: 5mm
- Qty. Fasteners: 2
Applications:
- Mainsheet. Halyard. Vang. Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials:
- Acetal ball bearings. UV stabilised Acetal sheave. Grade 316 stainless steel load strap and head fitting. Impact and UV resistant, fibre reinforced Nylon cheeks
