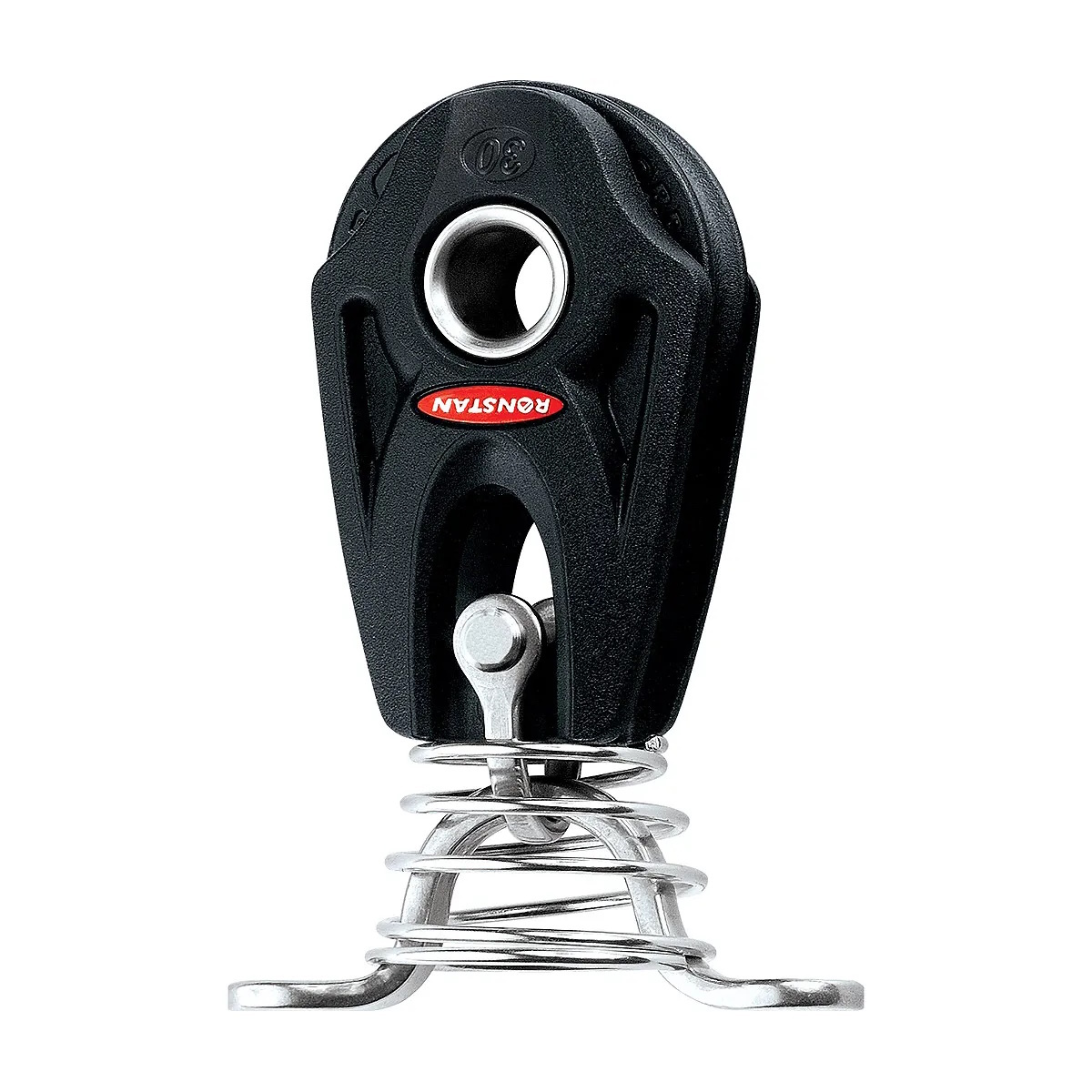

Ball Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fibre-reinforced composites in the block head, cleat arms and beckets
Lightweight Kilogram for kilogram of working load BB Orbit Blocks™ are the world’s lightest. To gain peak performance, we engineered out the heavy steel load straps, head post, shackle and cleating accessories. Through extensive research and development, we replaced virtually all metal components with high-tech polymers and fibre equivalents. Weight and bulk are further reduced in the different block configurations.
The ball bearing single and becket block has a through-sheave becket arrangement. The result? The lowest weight possible. Multi-sheave blocks have only single intermediate cheeks and an ultra-light and efficient head arrangement. Other brands just link together their single blocks with a heavy steel channel across the top of the block, with unnecessary extra cheeks adding extra weight and bulk not found in Ronstan Orbit Blocks™.
Features:
- Lightweight
- Highest working load in its class
- Secure, versatile attachment
- Ultra low profile thru-sheave becket
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range
- SP versions feature a Nylatron® sheave suitable for both rope and wire
Specifications:
- Type of Block: Stand-up
- Sheave diameter: 30mm
- B.L.: 500kg
- M.W.L.: 250kg
- Max. Rope diameter: 8mm
- Weight: 36g
Technical Information
Applications: Mainsheet systems and spinnaker sheets on dinghies to 5m (16ft). Halyard, vang and backstay applications on boats to 5m (16ft). Control line applications on larger yachts
Materials
Sheave: High compression strength carbon black Acetal. Ball Bearings: High compression strength Acetal. Frame/Cheeks: Toughened, glass fibre reinforced Nylon. Link: UV stabilised, multi-strand impregnated SK75 Dyneema®
