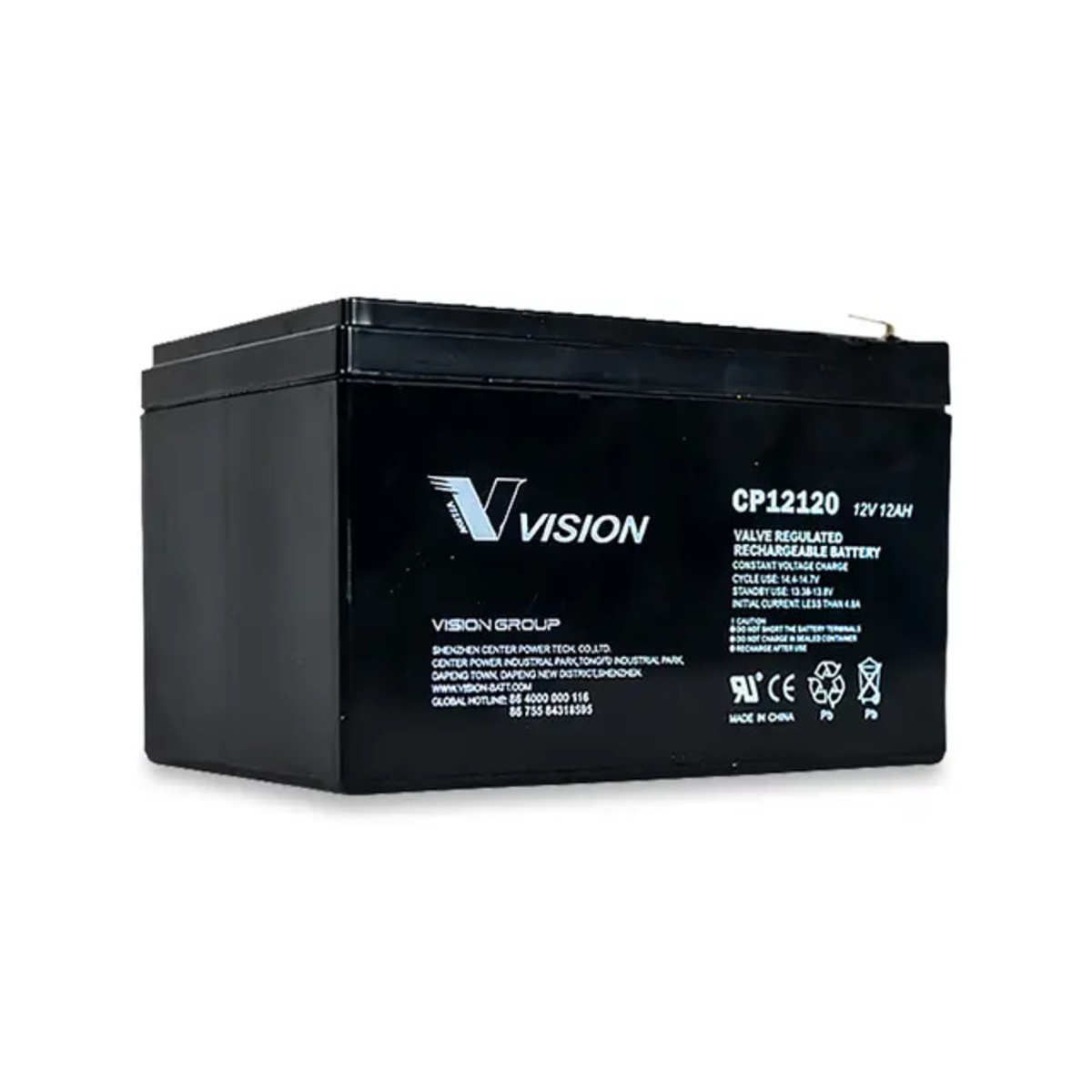

Vision Hi-Perf Vrla Agm Battery 12V 12Ah

{{ getFromPrefix }} SMART VIP CARD PRICE

Mix 'N' Match Deal: Buy {{ selectedOption.mixnMatch.quantity }} + and save {{ selectedOption.mixnMatch.price }}% {{ selectedOption.mixnMatch.quantity }} x for {{ selectedOption.mixnMatch.description }}

Buy now pay later, no extra cost!

Serves: {{selectedOption.serves}} ( per serve)

save {{ selectedOption.saleSavingsPercent }}%

{{product.options[0].name}}

{{packitem.quantity}} x {{packitem.item.name}} {{packitem.options[0].name}}

{{packitem.quantity}} x

Quantity

- +

Stock Notification

Name

Email Address

Name

Message

Item excluded from freight specials, Bulky and Oversized products are delivered to depots only, unless quoted prior to shipment.
$14.99 Sml Dg North Island
$29.98 Sml Dg South Island

For Rural Deliveries please read Shipping T&Cs – Click Here

Store Availability

{{b.name}} Low Stock In Stock Out of Stock

Select a variation to see branch availability

SKU #

Vision’s CP series of VRLA batteries are designed with AGM (Absorbent Glass Mat) technology and for general application purposes, such as UPS, telecom, and electrical utilities. With 5 years design life, the batteries comply to the most popular international standards, such as IEC896-2, BS6290-4, Eurobat Guide. The battery container and cover are available both in V0 class flame retardant ABS or HBO ABS plastics.

Features:

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte
maintenance or water adding.
Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
UL-recognized component.
Can be mounted in any orientation.
Computer designed lead, calcium tin alloy grid for high power density.
Long service life, float or cyclic applications.
Maintenance-free operation.
Low self discharge.

Dimensions and Weight:

Length(mm/inch): 151 / 5.94
Width(mm/inch): 98 / 3.86
Height(mm/inch): 95 / 3.74
Total Height(mm/inch): 101 / 3.98
Approx. Weight(Kg/lbs): 3.9 / 8.6

Specifications:

Nominal Voltage: 12V
Number of cell: 6
Design Life: 3~5 years
Nominal Capacity 77oF(25oC): 20 hour rate (0.6A, 10.5V) 12Ah / 10 hour rate (1.14A, 10.5V) 11.4Ah
5 hour rate (2.05A, 10.5V) 10.25Ah / 1 hour rate (8.14A, 9.6V) 8.14Ah
Internal Resistance: Fully Charged battery 77oF(25oC) 17mOhms
Self-Discharge: 3% of capacity declined per month at 20oC(average)
Operating Temperature Range: Discharge -20~60oC / Charge -10~60oC / Storage -20~60oC
Max. Discharge Current 77oF(25oC): 180A(5s)
Short Circuit Current: 600A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use: 14.5-14.9V
Maximum charging current: 4.8A
Temperature compensation: -30mV/oC
Standby use 13.6-13.8V
Temperature compensation -20mV/oC
