Lowrance ActiveTarget® 2 Live Sonar System – 000-15959-001

The Lowrance ActiveTarget® 2 Live Sonar System gives anglers high-resolution, real-time views of fish, structure and lure movement beneath and around the boat. By seeing how fish react to your lure as it happens, you can adjust your presentation, positioning and casting direction based on what you see underwater.

ActiveTarget 2 provides Forward, Down and Scout views, allowing you to target fish ahead of the boat, see directly beneath you or scan a wide area in front for fish, bait schools and structure.

This complete 000-15959-001 package includes the ActiveTarget 2 sonar module, transducer and mounting hardware, providing the core components required to add ActiveTarget 2 live sonar to a compatible Lowrance display.

Features

High-resolution live sonar imaging
See fish, structure and lure movement in real time
Improved image clarity and detail
Optimised image and stabilisation settings for a clear picture, including in rough conditions
Detailed imaging at greater distances from the boat
Three primary live sonar views: Forward, Down and Scout
Forward View helps locate and target fish ahead of the boat
Down View provides detailed live imaging directly beneath the boat
Scout View provides a wide overhead-style view in front of the boat
Compatible with selected Lowrance HDS and Elite FS displays
Multiple simultaneous views available in supported HDS PRO configurations using an additional ActiveTarget 2 system/transducer

Live Sonar Views

Forward View – See fish and structure in front of the boat, helping you determine where to cast and track your lure towards your target.

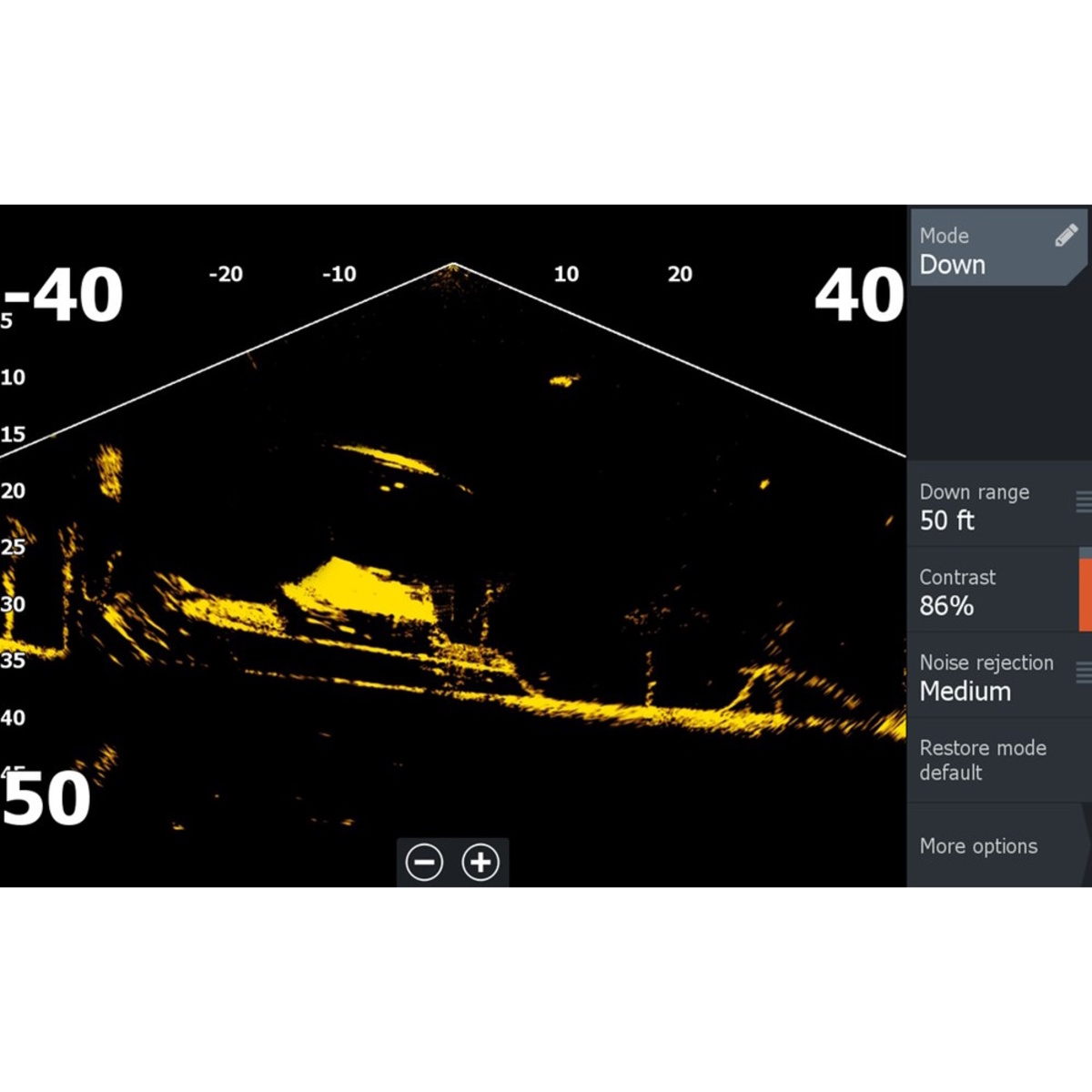

Down View – See detailed live sonar directly beneath the boat, including fish, structure and lure movement.

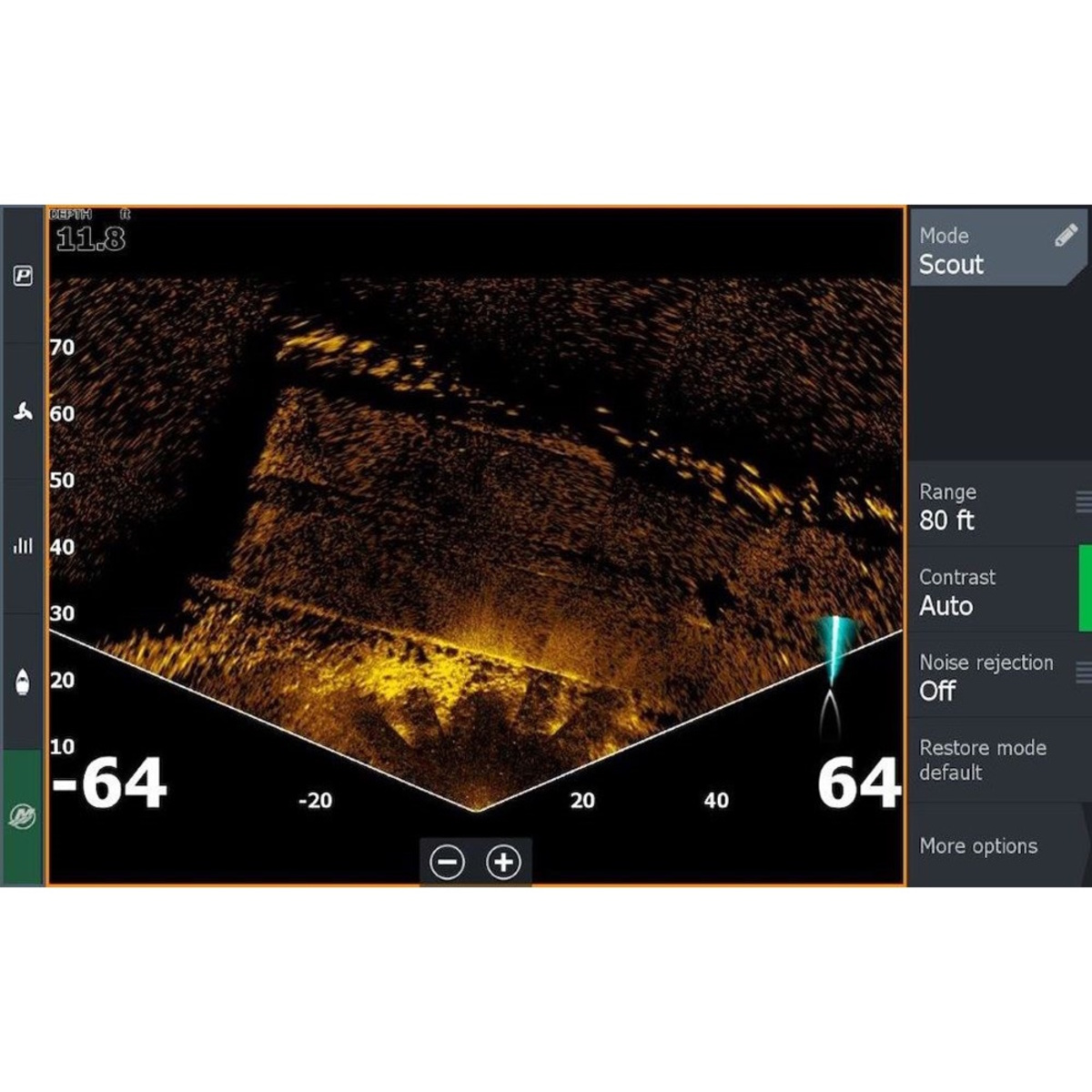

Scout View – Provides a wide live view ahead of the boat, making it useful for locating bait schools, fish and structure over a larger area.

Compatibility

ActiveTarget 2 is compatible with:

Lowrance HDS PRO
Lowrance HDS LIVE
Lowrance HDS Carbon
Lowrance Elite FS

The system connects to a compatible display via Ethernet.

Specifications

Brand: Lowrance
Model: ActiveTarget® 2
SKU / Part Number: 000-15959-001
Product Type: Live Sonar System
Sonar Views: Forward, Down & Scout
Network Connection: 1 × 100 Mbit Ethernet Port
Supply Voltage: 10.8–31.2V DC
Maximum Current Draw: 1.5A @ 13.8V DC
Waterproof Rating: IP67
Operating Temperature: -15°C to +55°C
Storage Temperature: -30°C to +70°C
Module Mounting: Surface Mount
Transducer Mounting: Bracket Mount
Transducer Cable Length: 7.62m (25ft)

Dimensions & Weight

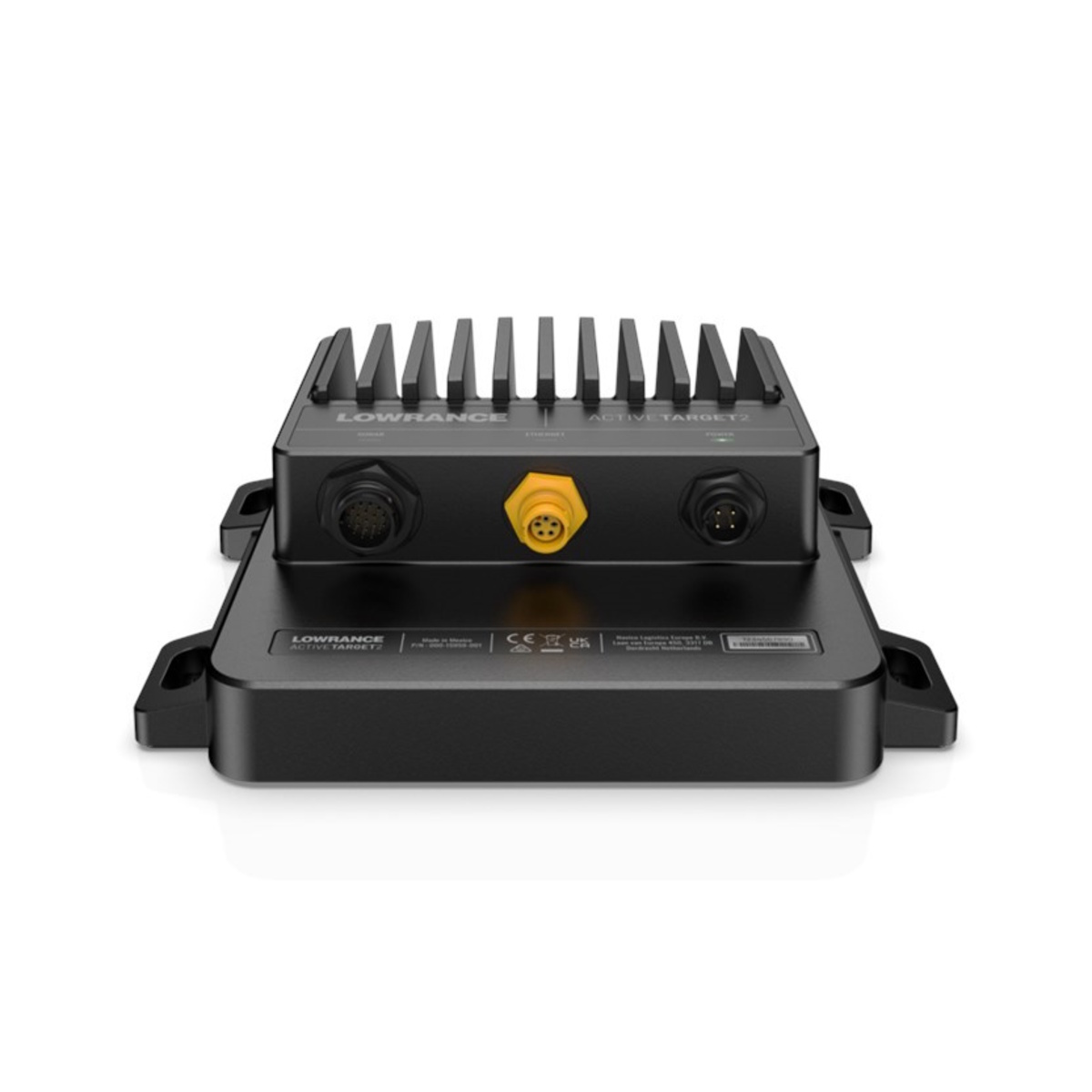

ActiveTarget 2 Sonar Module:

Width: 219.3mm
Height: 192.1mm
Depth: 72.9mm
Weight: 1.86kg

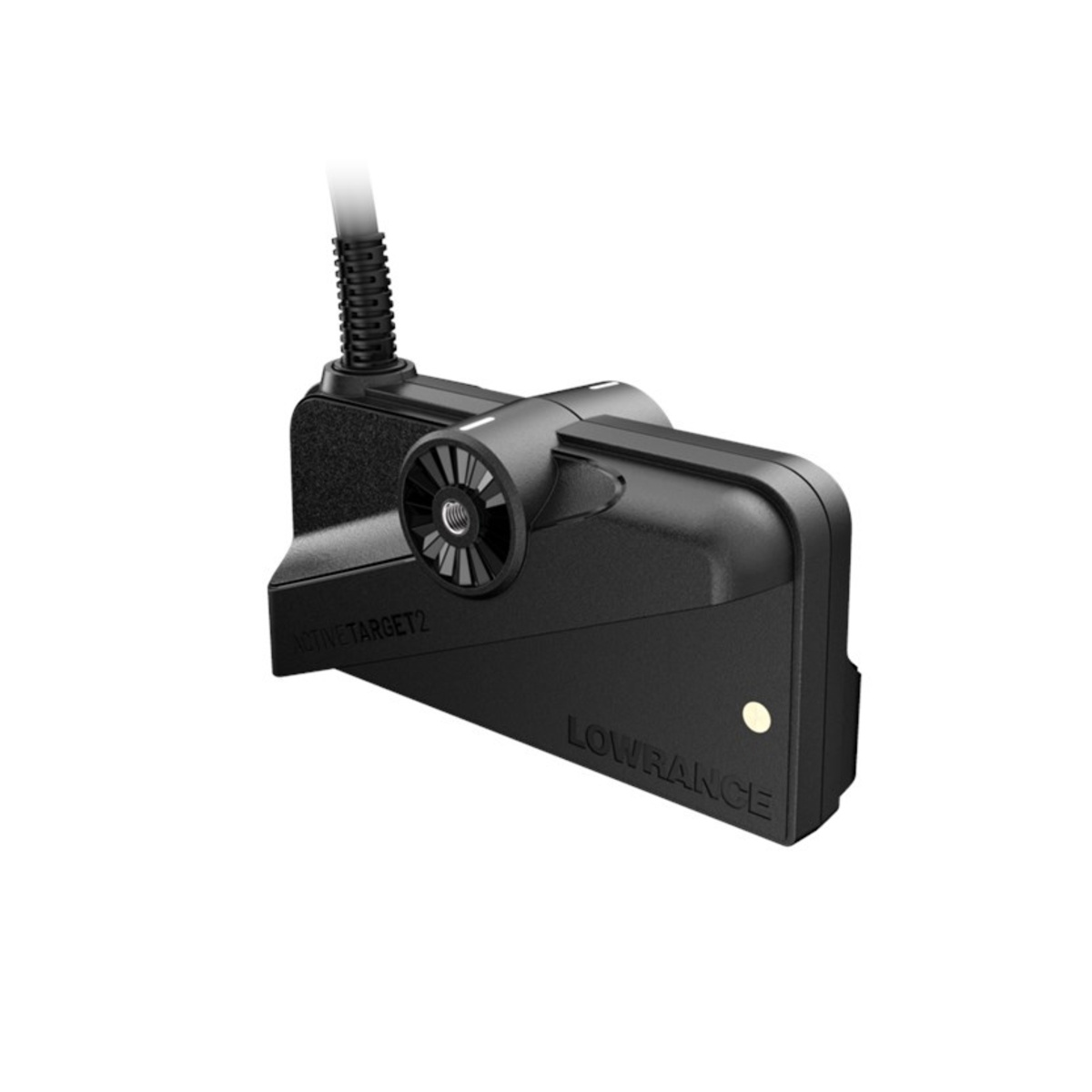

ActiveTarget 2 Transducer:

Length: 149.8mm
Height: 82.4mm
Depth: 58.0mm
Weight: 1.21kg

Mounting Options

The ActiveTarget 2 transducer supports mounting configurations for:

Trolling motor shaft
Trolling motor lower unit
Forward View
Down View
Scout View

A transom mount is available separately, and additional mounting hardware may be required for specialised configurations such as Scout Wide.

What’s in the Package

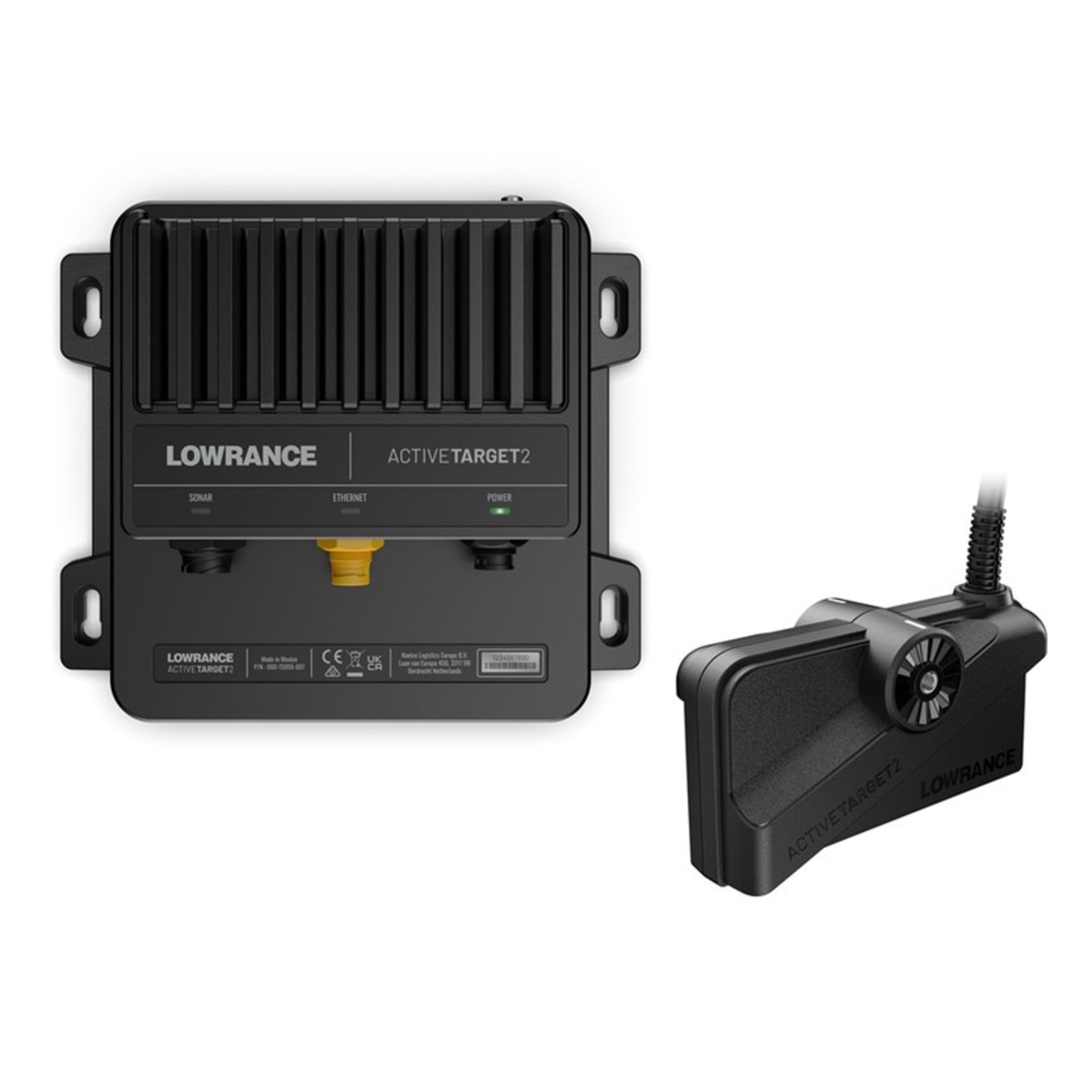

ActiveTarget® 2 Live Sonar Module
ActiveTarget® 2 Transducer
Mounting hardware for supported trolling motor configurations

This is the Module + Transducer + Mounts package, SKU 000-15959-001.

Why You’ll Love It

Watch fish movement and behaviour in real time
See how fish respond to your lure and presentation
Forward, Down and Scout modes provide flexible views around the boat
High-resolution imaging helps distinguish fish from surrounding structure
Wide Scout view helps locate bait schools and fish ahead of the boat
