Simrad NSS 4 – 16" Chartplotter and Fishfinder (SKU: 000-16019-001)
Ultimate Visibility. Precision Control. Built for Commanding Performance.
The Simrad NSS 4 – 16" is the flagship of next-gen marine electronics, delivering a powerful, streamlined solution for serious offshore anglers and professional skippers. With a massive 16-inch high-definition display, cutting-edge hardware, and ultra-responsive interface, this unit is built to take full command of your vessel in any condition.
Redesigned Inside and Out
-
Sleek edge-to-edge glass for a seamless, modern helm fit
-
Powered by a blazing-fast Qualcomm® 8-core processor for fast chart rendering, instant touch response, and smooth multitasking
-
All-new operating system delivers smart layouts and user-friendly interactions designed for the water
Hybrid Control for All Conditions
Three intuitive control modes provide maximum usability in any sea state:
-
Touchscreen – Gesture-ready interface with pinch-zoom, scroll, and tap-to-view functionality
-
Rotary Dial – Effortlessly scroll menus or dial in precise settings
-
Keypad – Physical control for rough conditions or gloved hands
Next-Level Sonar & Fishfinding
Find more fish with enhanced sonar performance and versatility:
-
Dual-channel built-in 1kW CHIRP sonar for incredible target detail and wide coverage
-
Compatible with Active Imaging™ HD for sidescan, downscan, and CHIRP sonar in photo-like clarity
-
Expand sonar capability via Simrad S3100 and S5100 modules
Full-Vessel Smart Integration
Total command through seamless ecosystem integration:
-

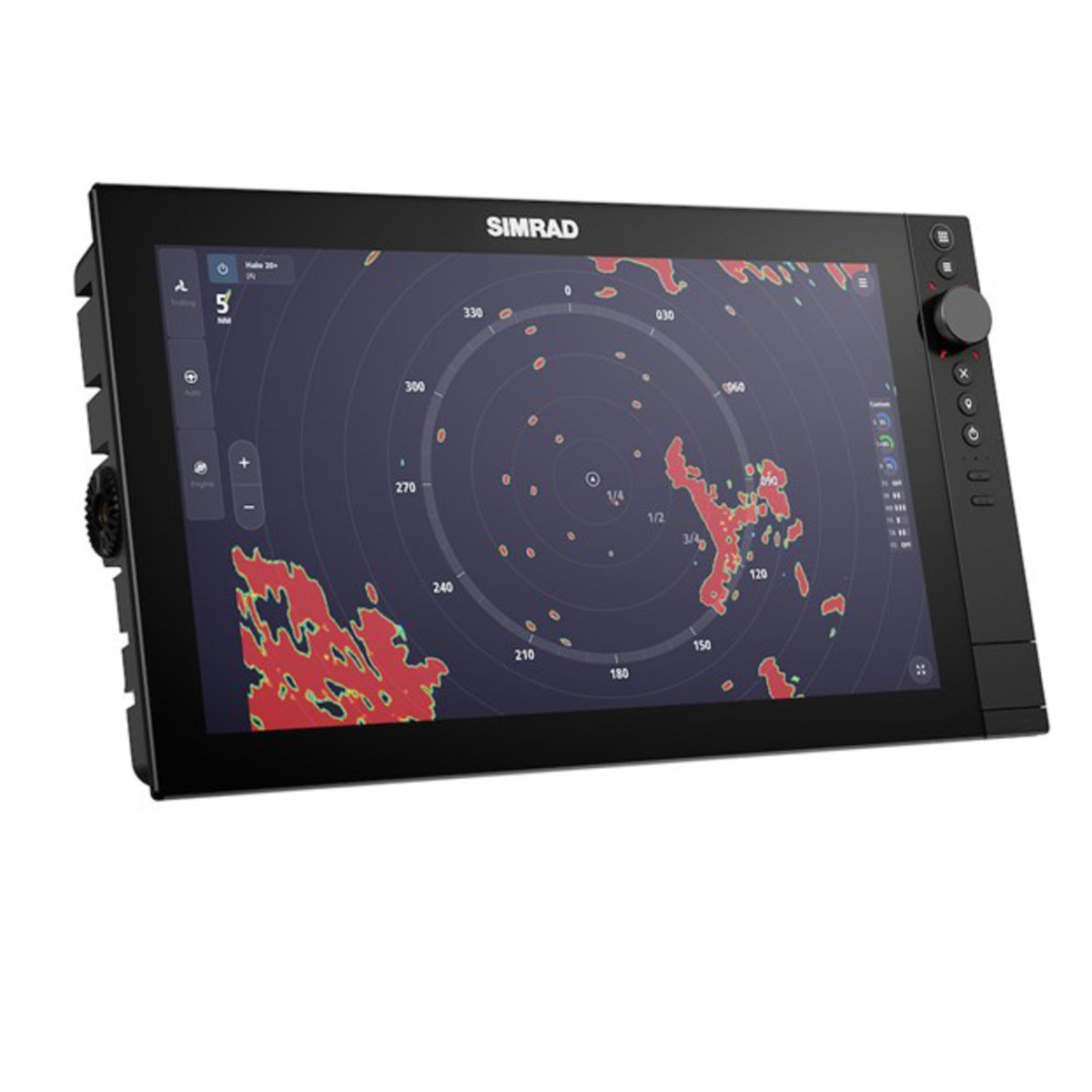

Radar: HALO® dome and open-array support
-
Trolling Motors: Full interface with Simrad RECON™, MotorGuide®, and Rhodan®
-
Digital Switching: Works with CZone® and DDS for complete onboard automation
-

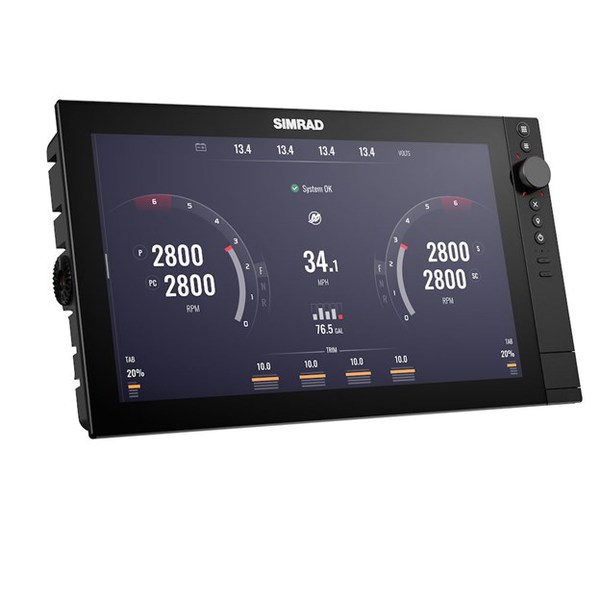

Full support for Mercury® engine data, FLIR thermal imaging, SiriusXM® weather, and more
Customisation at Your Fingertips
Tailor your experience to match your boat and fishing style:
-
Fully customizable dashboard layouts, screen splits, and instrument views
-
Flexible helm design for clean installations
Display & Design
-

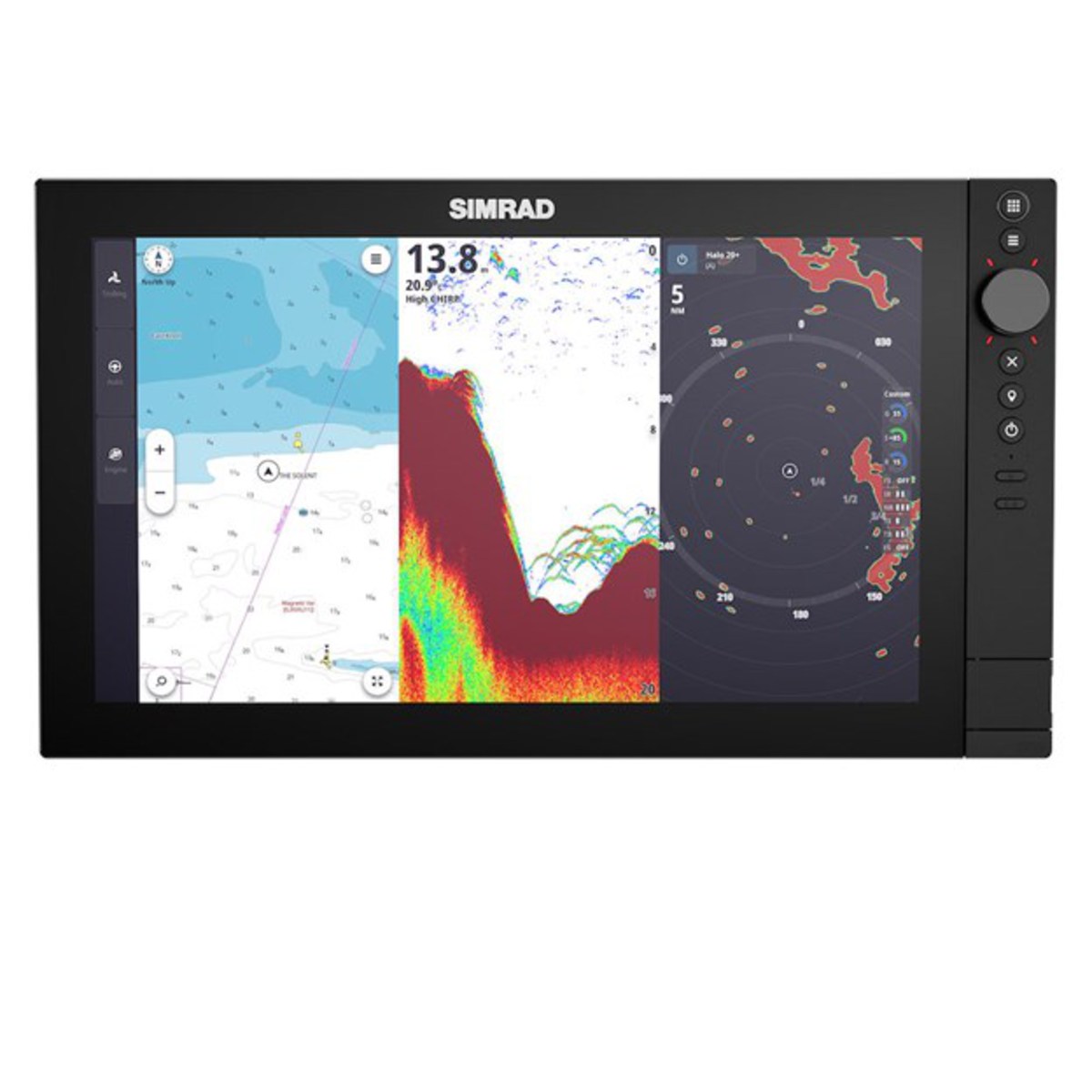

Giant 16” widescreen HD display (1920 x 1080 resolution)
-
1200 nits brightness – easily readable in direct sunlight
-
Ultra-wide 80° viewing angles and night mode white backlight
Connectivity & Expansion
-
Wi-Fi 5 (802.11ac) and Bluetooth 4.0 for updates, apps, and wireless devices
-

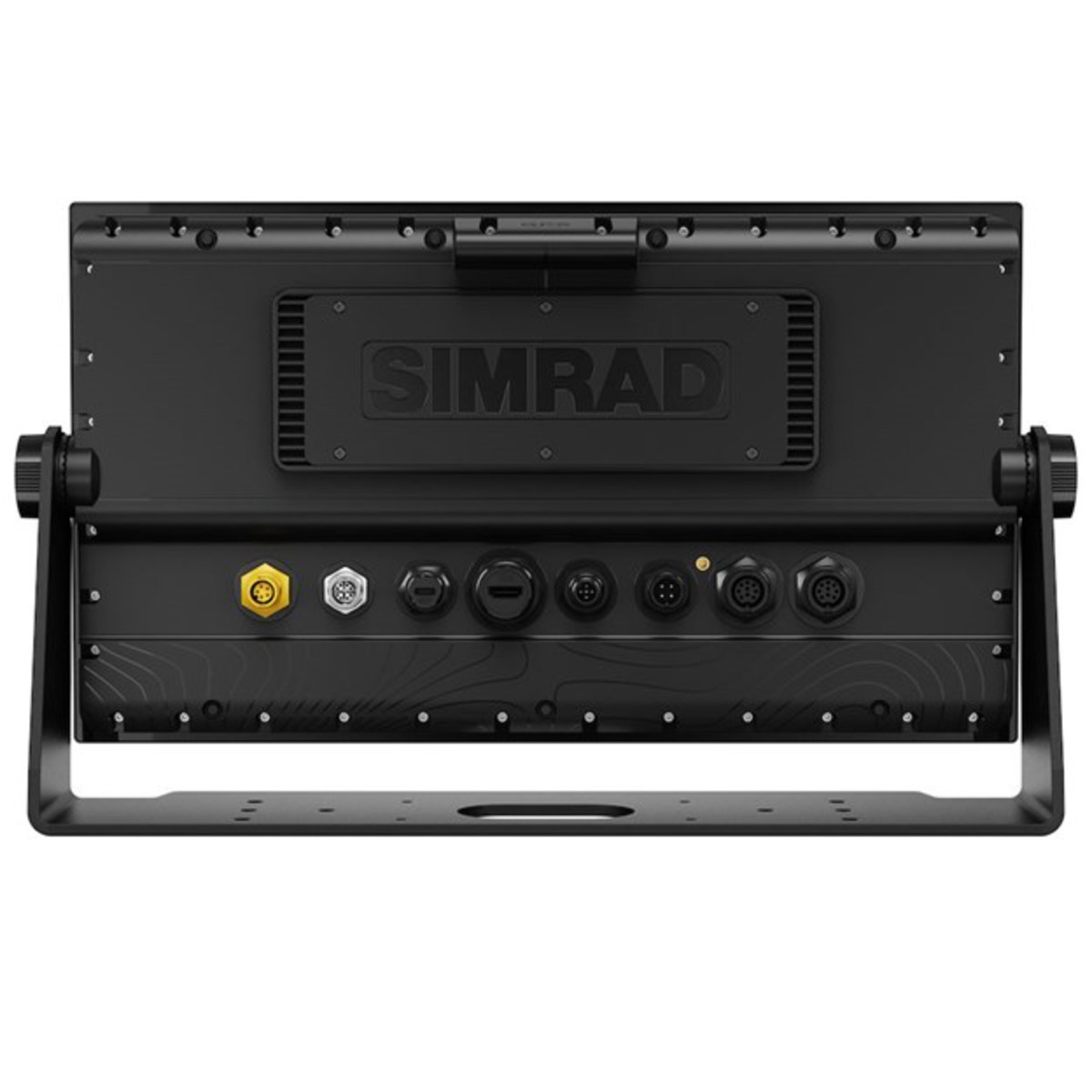

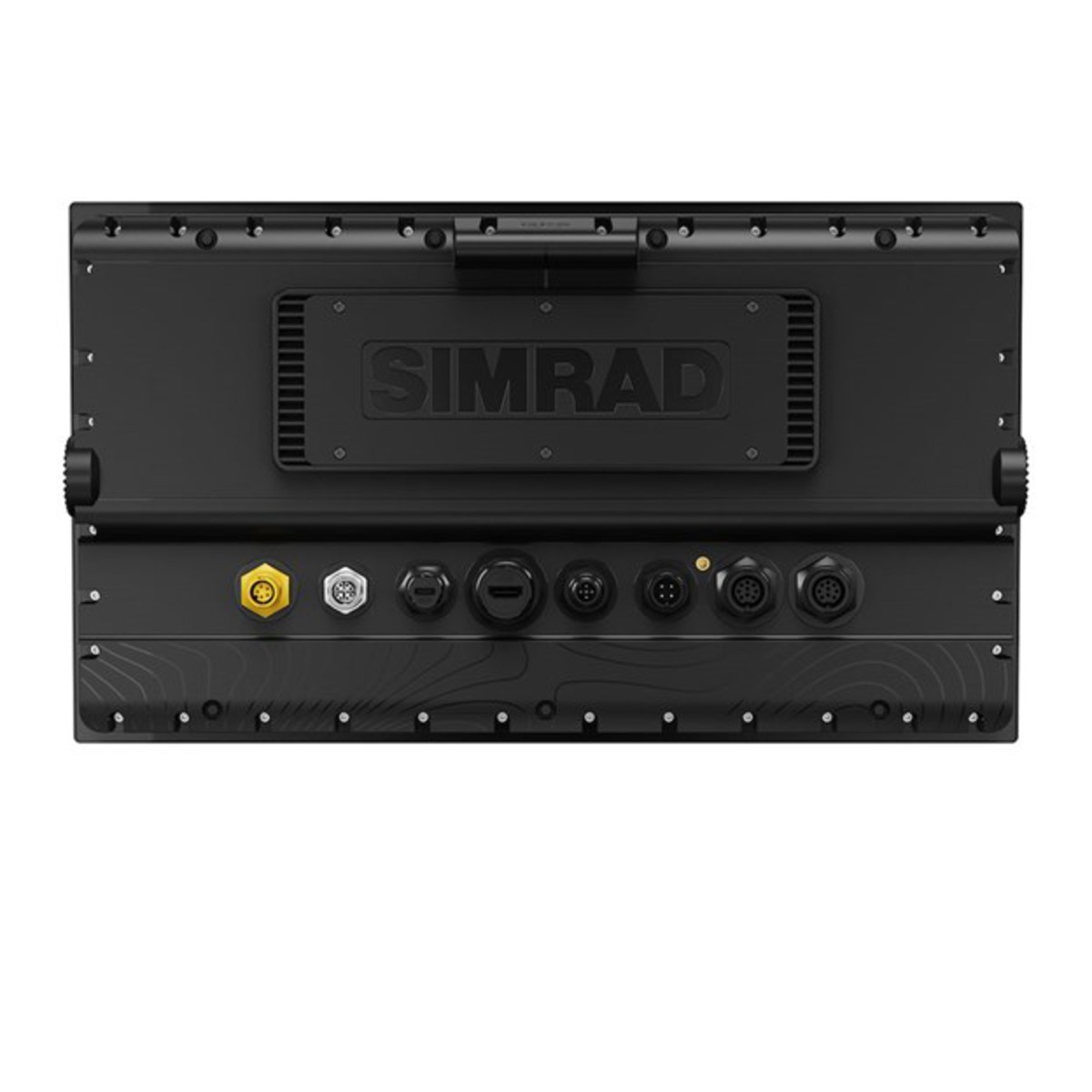

1x NMEA 2000®, Ethernet ports (M12 & 5-pin)
-
Dual microSD®, USB, video in/out for IP cameras and more
-
10–31.2 V DC power, Max 50W consumption

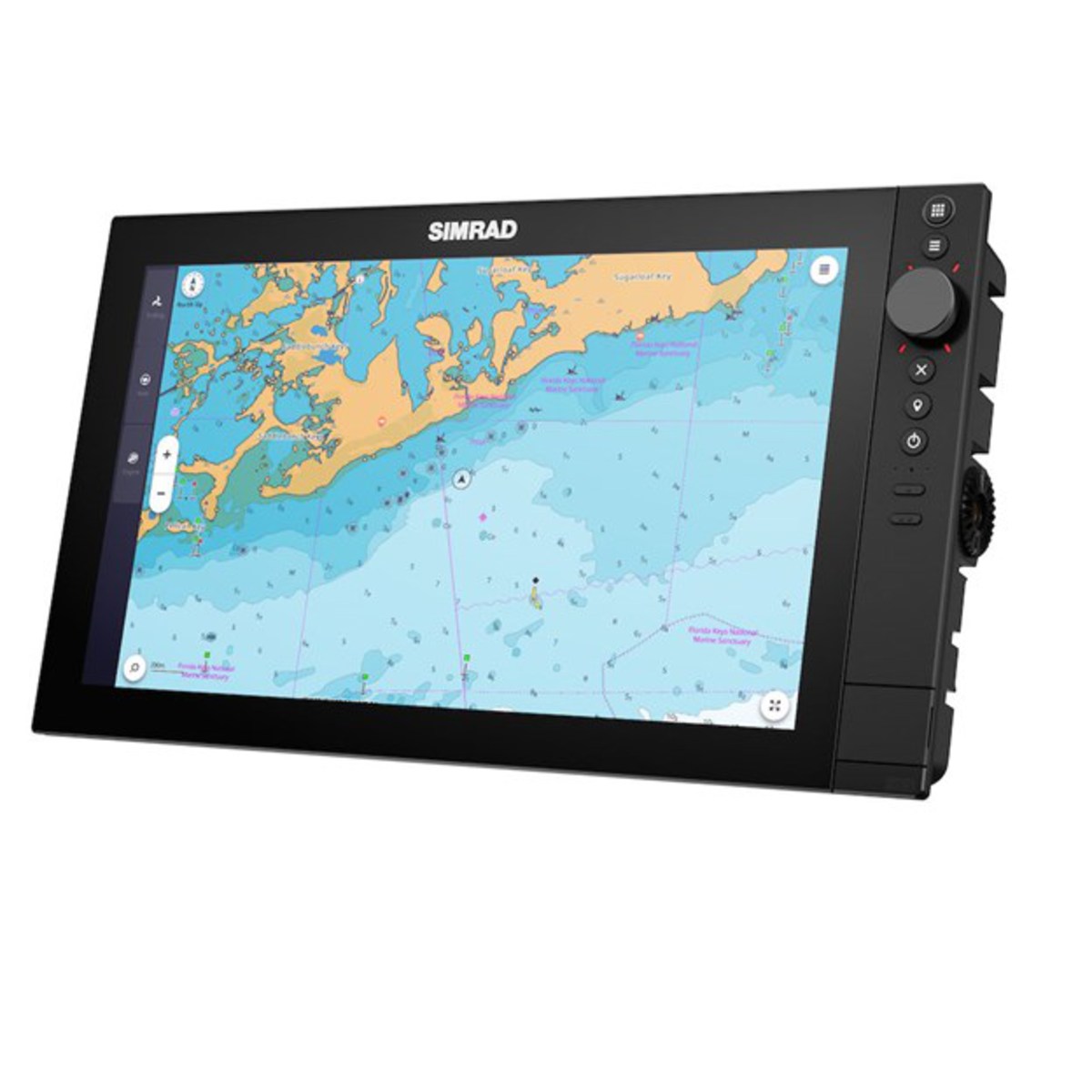

Navigation & Charting
-
10 Hz, 32-channel GPS with <3m accuracy
-
Compatible with C-MAP® Discover™ X, Reveal™ X, CMOR, Strikelines and more
-
Includes global basemap (not intended for navigation)
Data Handling & Storage
-
Stores 10,000 waypoints, 75,000 track points, and 125 routes
-
AIS support, autopilot manoeuvres, and advanced steering modes (U-turn, spiral, heading hold, and more)
Specifications Overview
| Display Size/Res | 16” / 1920 x 1080 |
| Brightness | 1200 nits |
| Processor | Qualcomm® 8-core |
| Sonar Ports | Dual 9-pin Xsonic ports |
| Imaging Frequencies | 455/800 kHz, CHIRP 700–1200 kHz |
| GPS Update Rate | 10 Hz |
| Waypoints/Routes | 10,000 / 125 |
| Power Supply | 12/24V DC (10–31.2V), Max 50W |
| Waterproofing | IPX7 (with correct installation) |
| Warranty | 2 Years |
Why Choose the Simrad NSS 4 – 16"?
-
Expansive 16” high-brightness HD display
-
Ultra-fast 8-core processor for seamless performance
-
Built-in dual-channel 1kW CHIRP sonar
-
Hybrid control – touchscreen, dial, and keypad
-
Fully integrated with radar, sonar, trolling motors, and vessel systems
-
Customizable layout and premium connectivity
