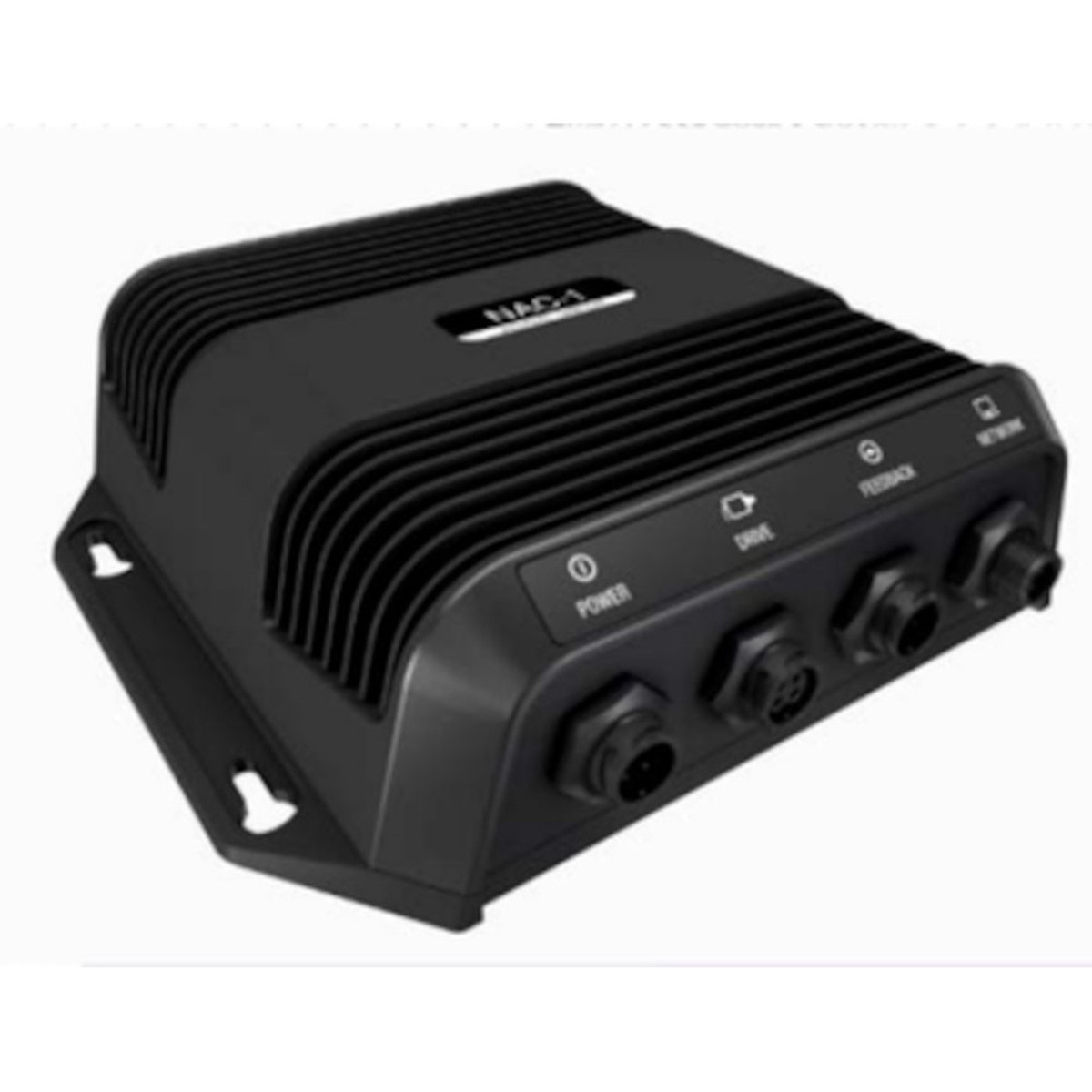

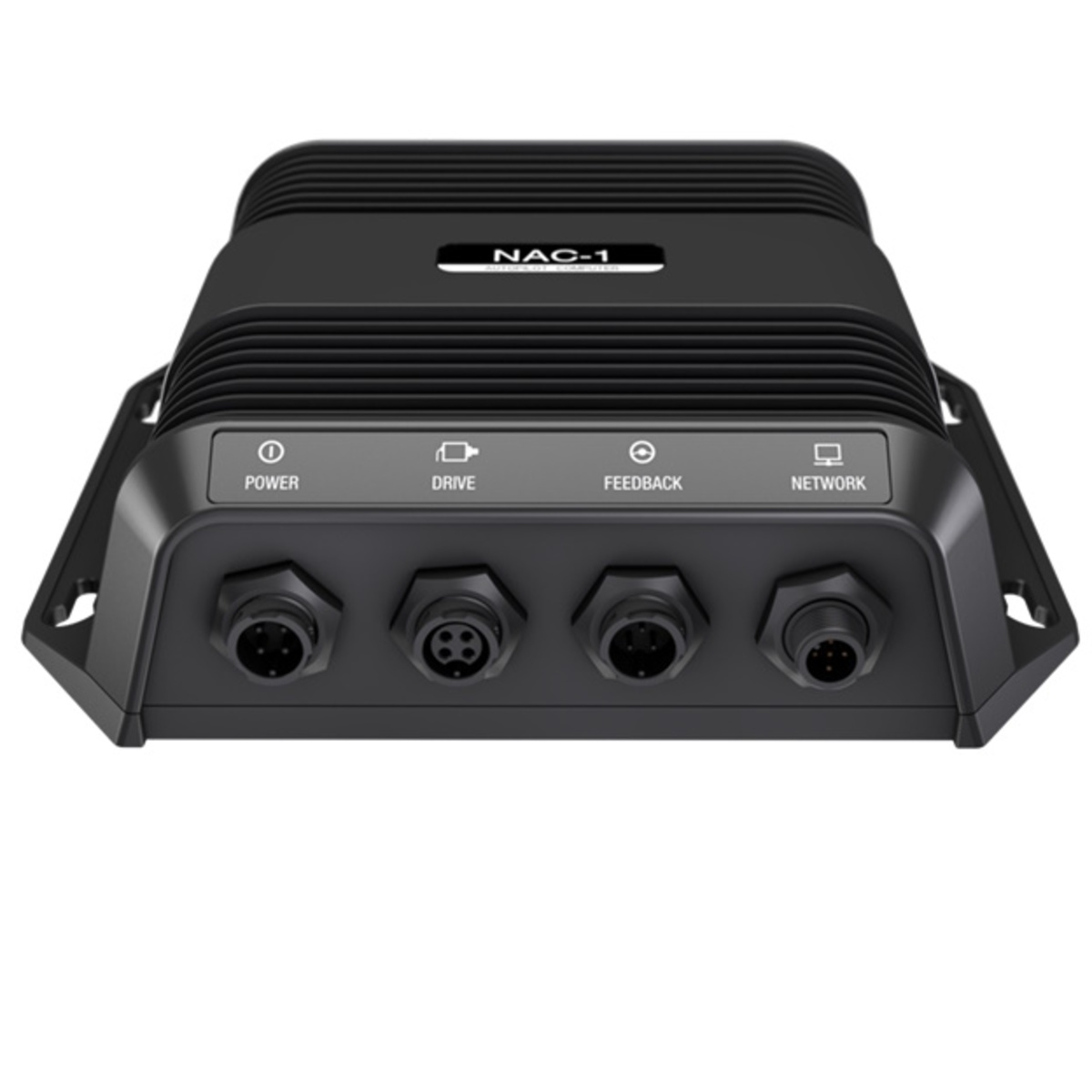

Lowrance NAC-1 Autopilot Computer – 000-11769-001
The Lowrance NAC-1 Autopilot Computer is the central control unit of a compatible Lowrance autopilot system, containing the electronics required to operate the steering drive and interface with other key autopilot components.
Designed for hydraulic or cable-steered boats up to 9 metres (30 feet), the NAC-1 works with compatible Lowrance displays to provide a fully integrated autopilot solution. It is designed to operate either the PUMP-1 reversible hydraulic pump for hydraulic-steered outboards or the HELM-1 drive unit for cable-steered vessels.
Features
- Genuine Lowrance autopilot computer
- Recommended for boats up to 9m (30ft)
- Suitable for hydraulic or cable-steered boats
- Continuum Steering technology
- Compatible with PUMP-1 reversible hydraulic pump
- Compatible with HELM-1 cable steer drive unit
- Virtual Rudder Feedback (VRF) support
- Supports RF25 rudder feedback units
- Plug-and-play connectors help simplify installation
- NMEA 2000® connectivity
- Connects with compatible heading sensors, rudder feedback units and multifunction displays
- Designed for integration with compatible Lowrance displays
Hydraulic & Cable Steering Compatibility
The NAC-1 is specifically designed to support two steering configurations:
- Hydraulic Steering: Compatible with the Lowrance PUMP-1 reversible hydraulic pump for hydraulic-steered outboards
- Cable Steering: Compatible with the Lowrance HELM-1 drive unit for cable-steered vessels
The appropriate steering drive components are required separately depending on your boat’s steering system.
Virtual Rudder Feedback
Lowrance Virtual Rudder Feedback (VRF) technology can eliminate the need to install a separate physical rudder feedback unit on suitable outboard and sterndrive (inboard/outboard) boats with planing hulls.
This can simplify the autopilot installation where fitting a physical feedback unit is impractical due to mechanical constraints.
The NAC-1 also supports RF25 rudder feedback units when physical rudder feedback is required.
Specifications
- Brand: Lowrance
- Model: NAC-1
- Product Type: Autopilot Computer
- SKU / Part Number: 000-11769-001
- Recommended Boat Length: Up to 9m / 30ft
- Steering Compatibility: Hydraulic or Cable Steering
- Compatible Drives: PUMP-1 Reversible Hydraulic Pump / HELM-1 Cable Steer Drive
- Drive Output: 12V DC, reversible motor control, 8A / 16A peak (1 sec.)
- Rudder Sensor Support: VRF, 0–5V, RF25
- Heading Sensor Support: NMEA 2000
- NMEA 2000: 1 × CAN Micro-C Port, 3 LEN
- Supply Voltage: 9–16V DC
- Recommended Fuse: 20A
- Power Consumption: 140mA + drive unit load
- Waterproof Rating: IPX5
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +70°C
- Weight: 0.6kg
- Mounting: Bulkhead
- Warranty: 2 Years
Dimensions
- Width: 204mm
- Height: 190mm
- Depth: 57mm
- Imperial: 8.03" × 7.5" × 2.24"
- Compass Safe Distance: 0.5m (19.7")
What’s in the Box
Lowrance lists the package contents as:
- NAC-1 Autopilot Computer
- NAC-1/NAC-2 2m Power Cable
Note: This is the NAC-1 autopilot computer, not a complete autopilot system. Additional compatible components such as a steering drive/pump, heading sensor, network components and compatible control display may be required to complete an installation.
Why You’ll Love It
- Central control computer for building a compatible Lowrance autopilot system
- Designed for boats up to 9m (30ft)
- Supports both hydraulic and cable-steering configurations
- VRF technology can simplify suitable outboard and sterndrive installations
- NMEA 2000 connectivity provides straightforward integration with compatible marine electronics
- Plug-and-play connections help simplify installation
