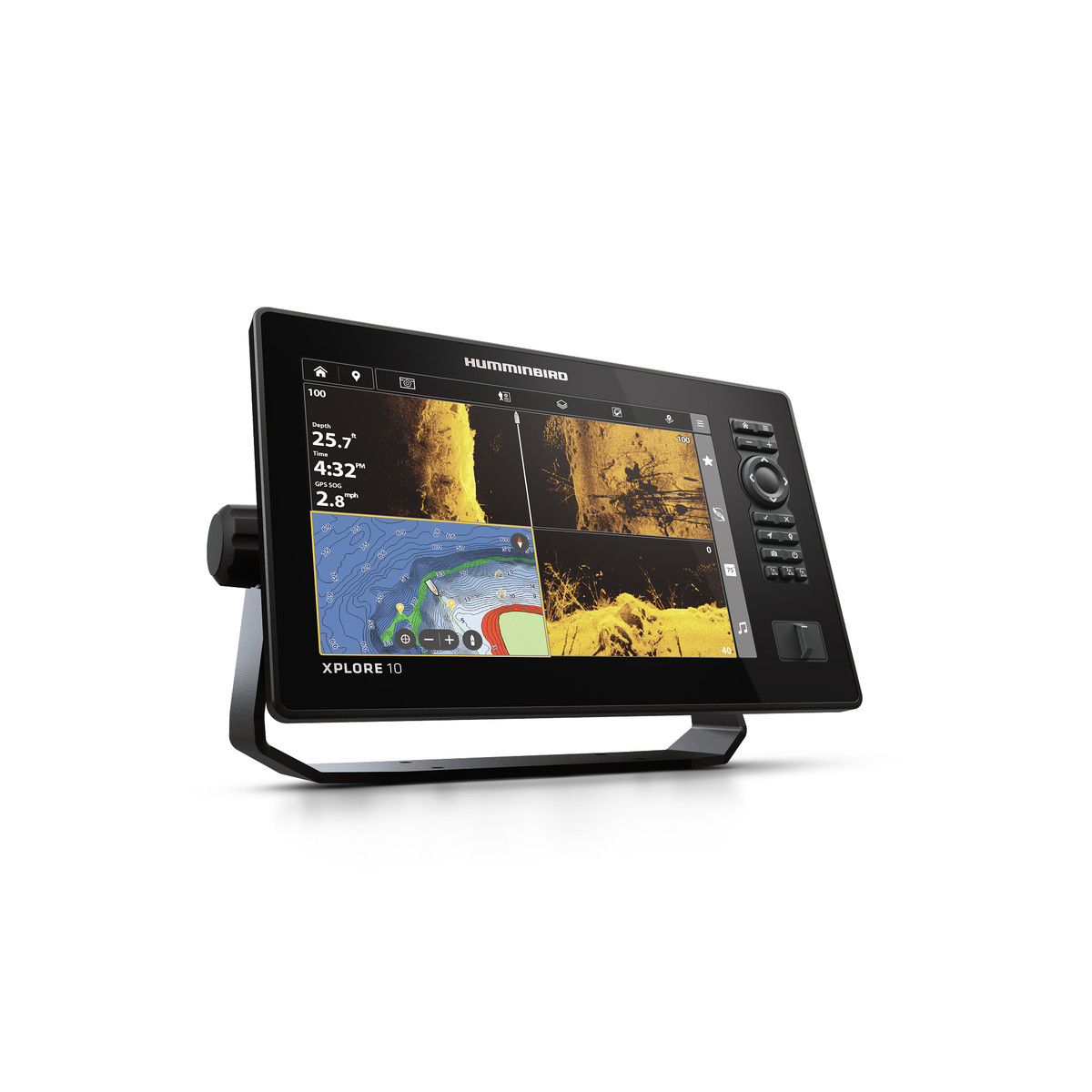

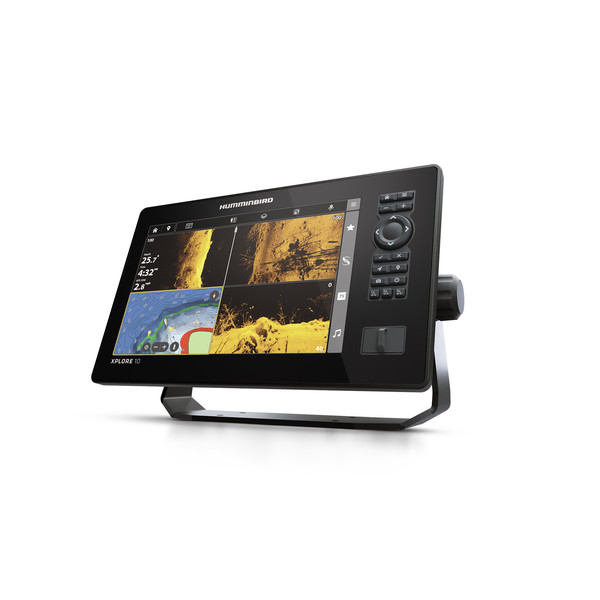

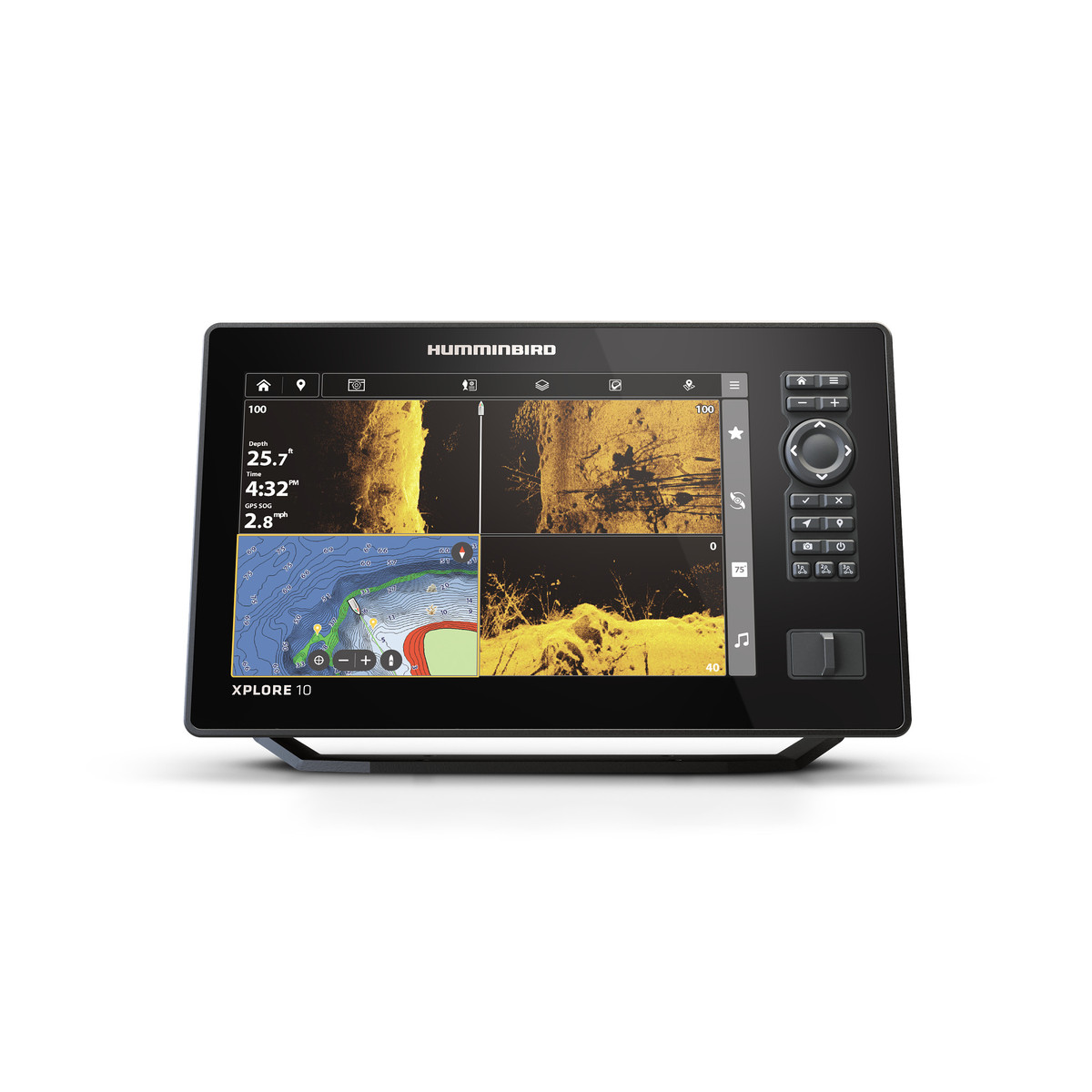

THE XPLORE 10 CMSI+ features a 10” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS. This XPLORE 9 CMSI+ model includes Wi-Fi, NMEA 2000®, Bluetooth and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.
Specifications:
- Item Number: 104678 CMSI+, 104677 CHO
- Series: XPLORE
- Display Size Diagonal: 25.65 cm
- Display Pixel Matrix: WXGA 1280 x 800
- Memory Card Slot: Duel Micro SD
- Waterproof Rating: IPX7
- Power Input: 10-20 volts
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Trackplotting: Included
- LakeMaster Compatibility: Yes
- Coast Master Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Platinum Compatibility: Yes
- Heading Sensor GPS Compatibility: Yes
- Upgradable Software: Yes
- PLUG-AND-PLAY MINN KOTA CAPABILITY: Share waypoints between XPLORE and your phone via the One-Boat Network® App
Enhancements:
- Cross Touch Interface
- In Pane Touch Targets
- Anti-glare, edge to edge screen display
- Updated Home Screen and User Interface
- Updated Menu/Setting structure
- New Keypad Design
- Two Micro SD card slots
- Twist lock cable connections
- Wi-Fi Software Updates
- Utilizes the same power cable as APEX units
- Dual Band GPS for better position accuracy
Display Features:
- High-Def Display
- Engineered for Polarized Eyewear
Sonar Capability:
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP
- MEGA Live 2 Imaging+ & MEGA 360 Compatible
CHIRP-Frequencies Supported:
- Full: 150-220 kHz @ 25/42o
- Narrow: 180-240 kHz @ 25o
- Wide: 140-200 kHz @ 42o
Depth & Range – Sonar:
- MEGA Side Imaging+®
- Range:
800ft (244m) 455 kHz: 405-505 kHz
400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® - Depth:
400ft (122m) 455 kHz: 420-520 kHz
200ft (61m) MEGA: 1125-1225 kHz
Fish Finder Functionality:
- Intuitive Cross Touch®
- Quick-Launch Home Screen
Connectivity:
- CE
- NMEA 2000®
- Bluetooth®
- Ethernet
- Wi-Fi
- MFi
Included in the box:
- XPLORE Fish Finder
- Power Cable
- Unit Cover
- Gimbal Mount with Hardware and Knobs
