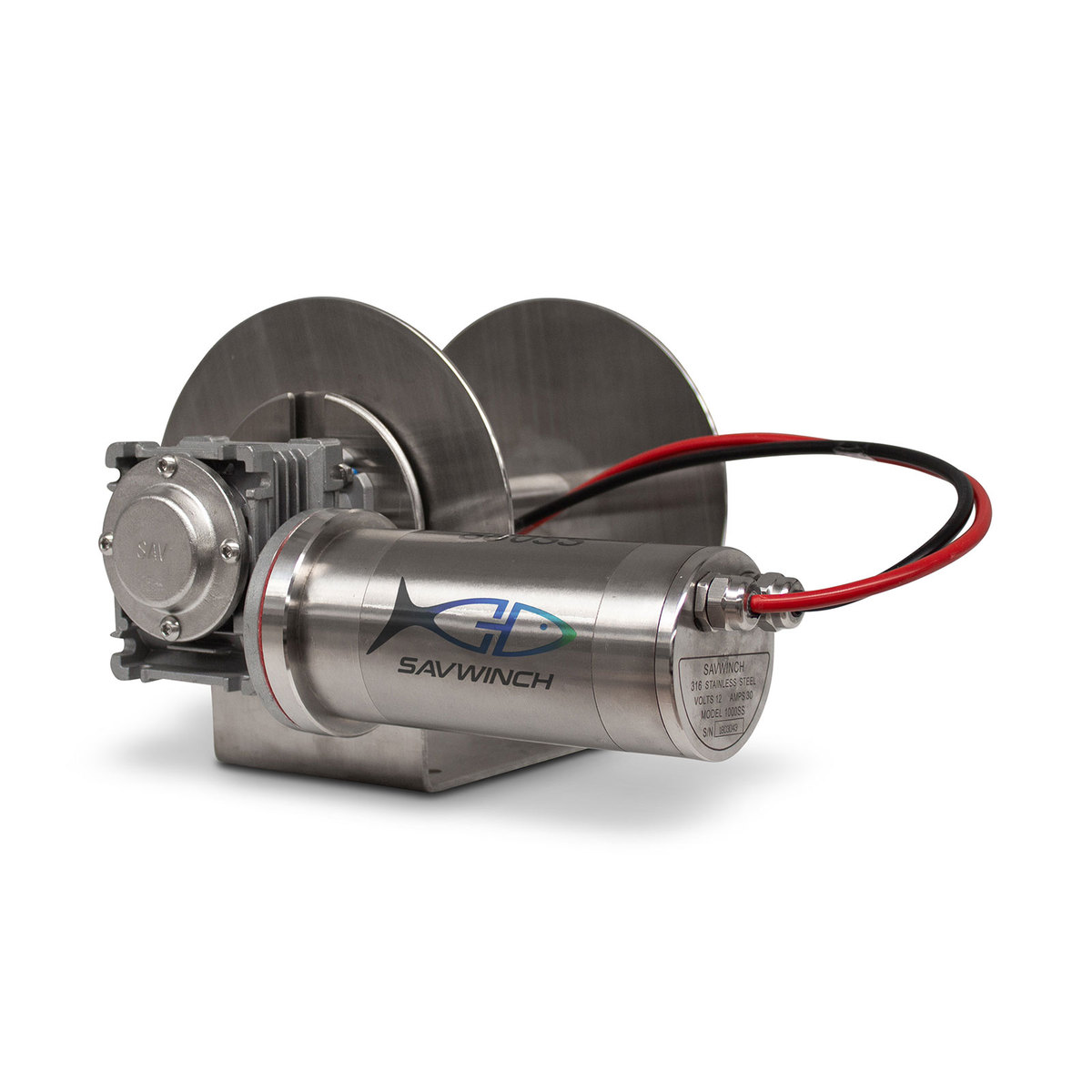

Built for serious marine conditions, the Savwinch Signature Series 880SS Stainless Drum Winch combines a purpose-built marine-grade patented motor with a heavy-duty oversized worm drive gearbox. With an IP68 waterproof rating, it's designed to handle harsh offshore environments with confidence. Savwinch's electronic fast fall system allows the anchor to deploy at speeds exceeding 100 metres per minute, while the motor can be rotated into 12 different mounting positions for greater installation flexibility across a wide range of boats.
Designed exclusively for Savwinch, the Signature Series 880SS features a fully stainless steel motor engineered to precise machining tolerances. O-ring seals provide complete waterproof protection, allowing the motor to be fully submersible without relying on sealants or adhesives. This complete package includes 65 metres of 6mm double-braided rope and 6 metres of chain, making it ideal for boats up to 5.5 metres (18ft).
Features:
- Patented marine-grade 316 stainless steel motor
- 316 stainless steel drum
- Heavy-duty alloy gearbox
- IP68 waterproof rating
- Electronic fast fall system
- Anchor deployment speeds exceeding 100m per minute
- Motor adjusts to 12 mounting positions for versatile installation
- Precision O-ring sealing for complete waterproof protection
- Includes 65m of 6mm double-braided rope and 6m of chain
Specifications:
- Full Kit Code: 153200
- Winch Model: 880-SS
- Drum Diameter: 200mm
- Recommended Boat Size: Up to 5.5m (18ft)
- Rope: 65m x 6mm double-braided
- Chain: 6m x 6mm
- Total Rode Length: 71m

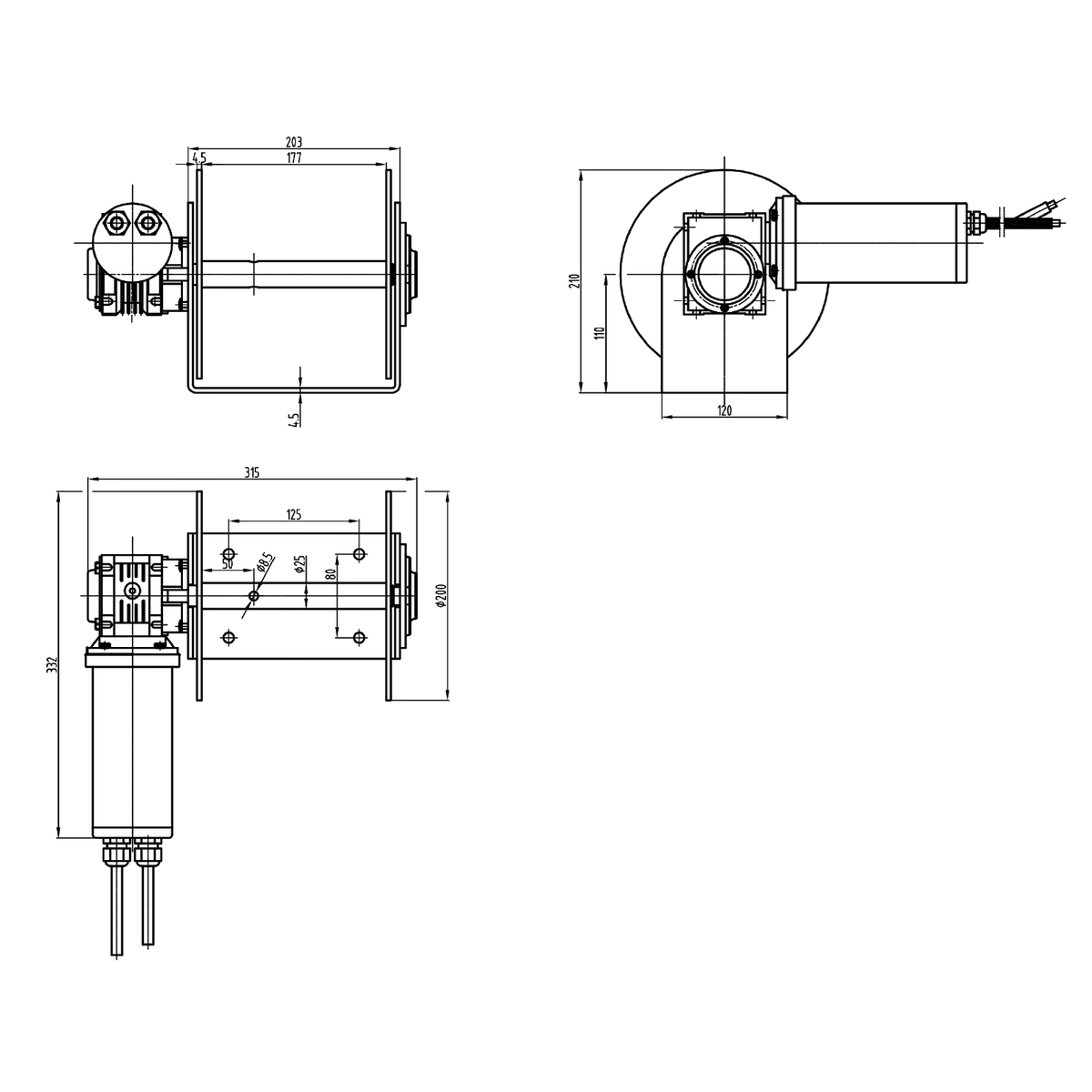

Dimensions (refer to product images for diagram)
- A: 332mm (excluding waterproof glands and wiring)
- B: 315mm
- C: 200mm
- D: 210mm
- E: 120mm
Package Includes:
- Savwinch 880SS Drum Winch
- Up/Down control switch
- Solenoid
- Circuit breaker
- 65m rope and 6m chain kit
- Mounting backing plate and bolts
- Guide roller
- Anchor swivel
