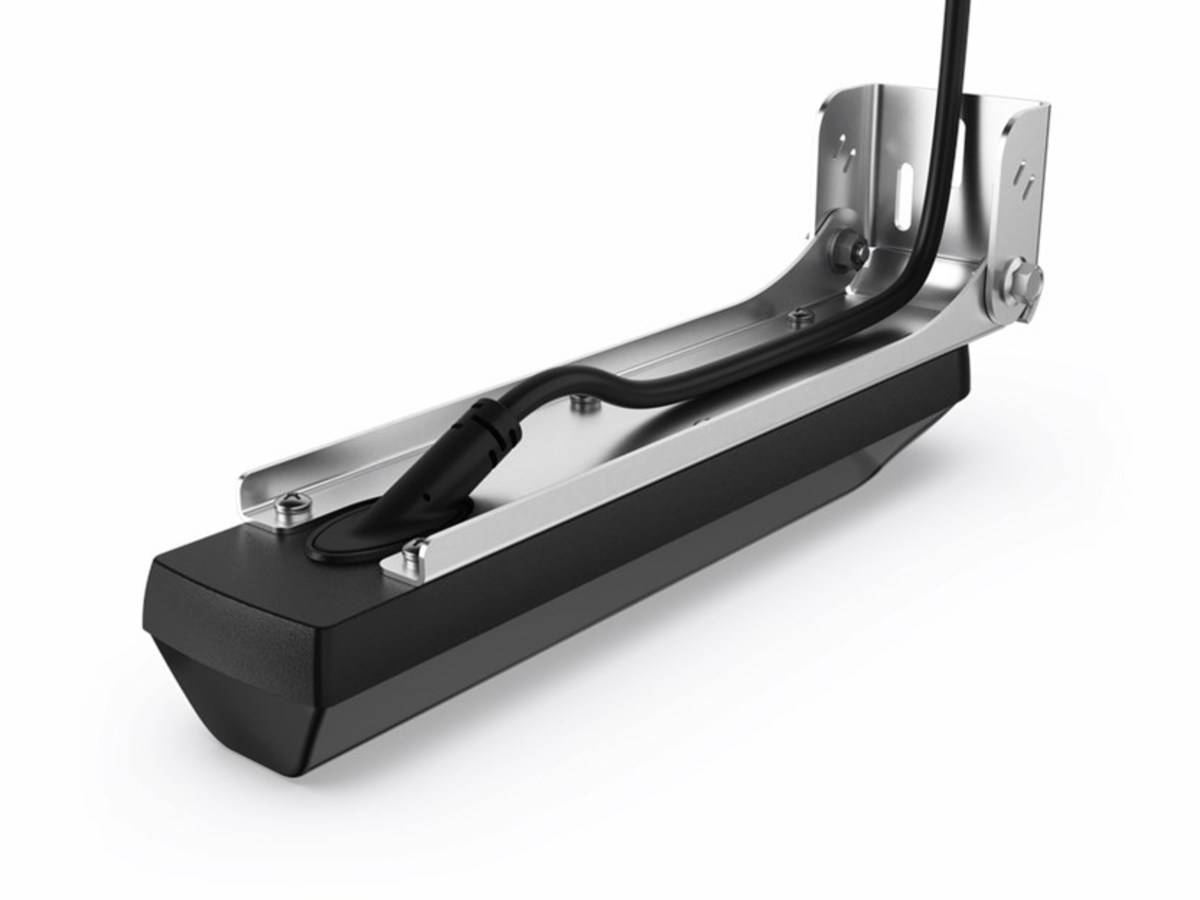

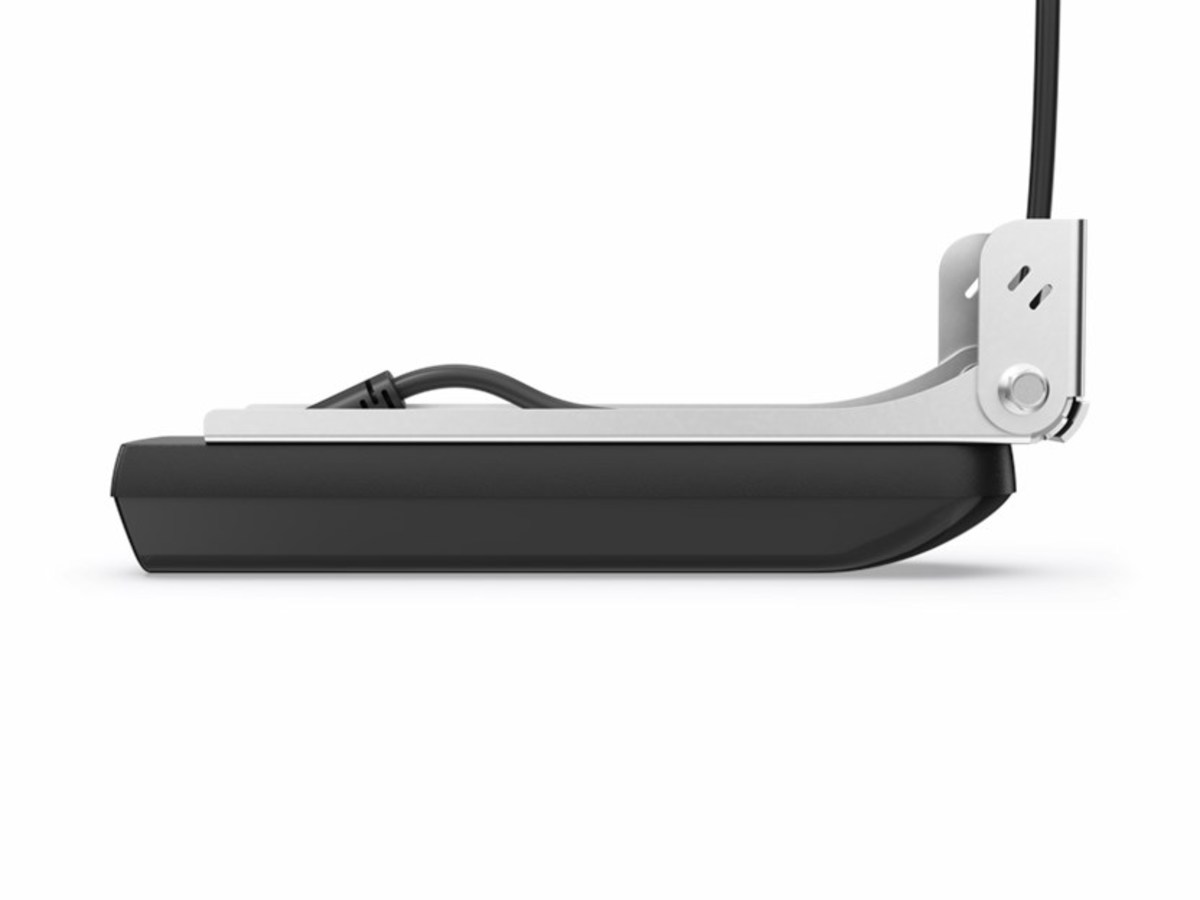

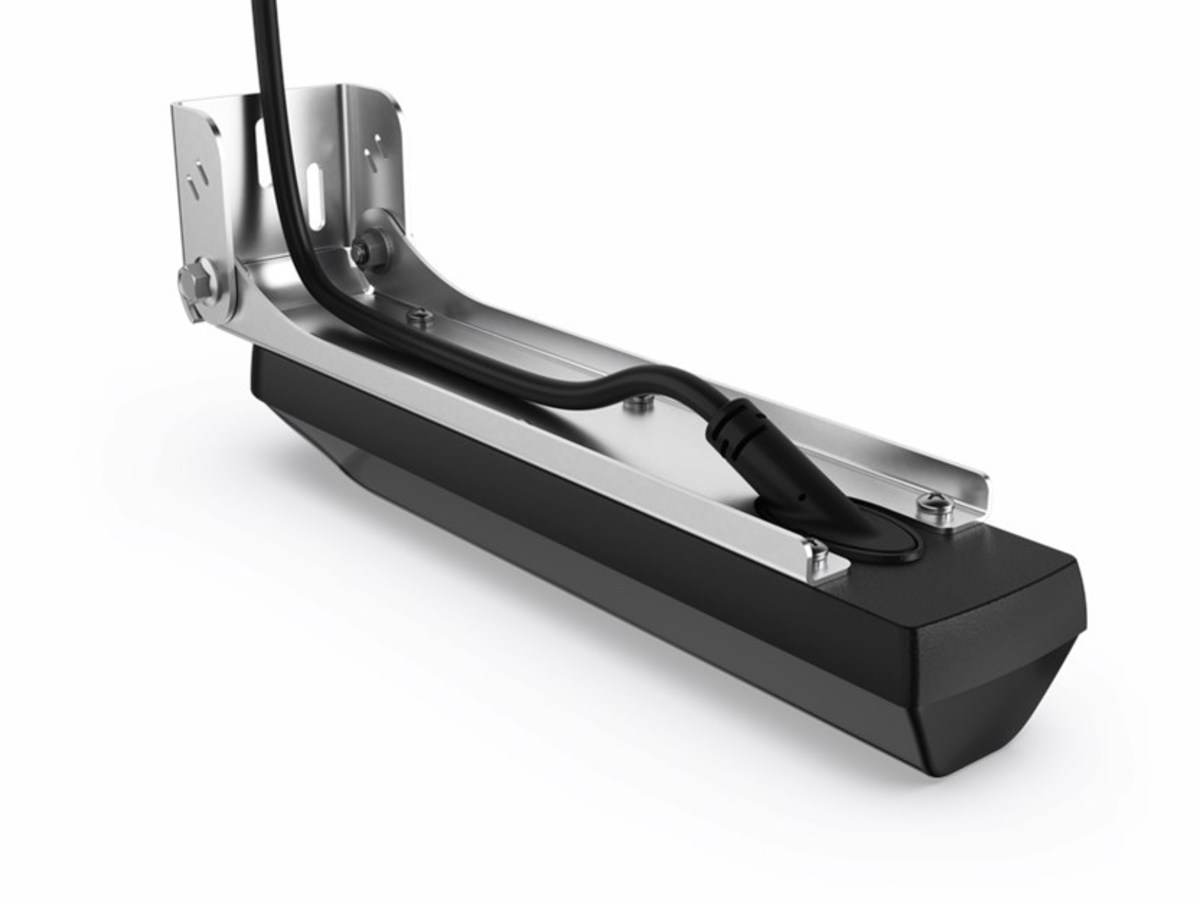

Lowrance Active Imaging™ HD 3-in-1 Transducer – 000-16062-001
The Lowrance Active Imaging™ HD 3-in-1 Transducer combines three key sonar technologies in one transom-mount package, delivering CHIRP sonar, high-definition SideScan and DownScan Imaging™ for detailed views of fish, structure and the bottom.
With high-frequency imaging up to 1.2MHz, Active Imaging HD provides improved clarity and target separation, helping anglers identify fish and fish-holding structure such as rock piles, weed beds, drop-offs, timber and other underwater features.
The transducer also supports FishReveal™ DownScan, combining CHIRP fish targets with detailed DownScan Imaging to make it easier to distinguish fish from surrounding structure.
Features
- 3-in-1 transducer combining CHIRP, SideScan and DownScan Imaging™
- High-definition imaging frequencies up to 1.2MHz
- Detailed SideScan HD for searching larger areas around the boat
- DownScan HD provides detailed views directly beneath the boat
- CHIRP sonar delivers clear fish targets and target separation
- FishReveal™ DownScan helps distinguish fish from structure
- Smart transducer design engineered to improve signal clarity
- Transom/bracket mount installation
- IP67 waterproof rating
- Compatible with selected Lowrance and Simrad displays and sonar systems
Sonar Frequencies
The Active Imaging HD 3-in-1 supports:
- Medium / High CHIRP: 83/200kHz
- SideScan / DownScan HD: 700/1200kHz
- Additional Imaging Frequencies: 455/1075kHz

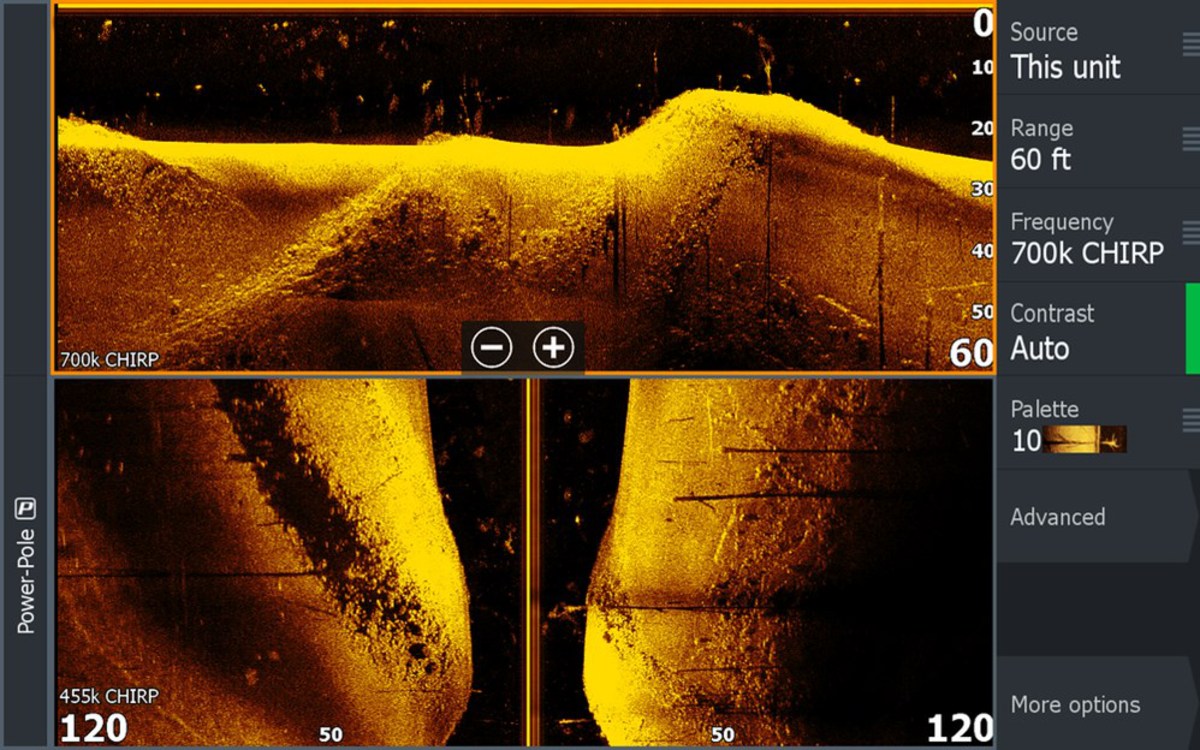

The high-frequency imaging capabilities provide detailed views of underwater structure and fish targets when used with a compatible display or sonar system.
Compatibility
Compatible with:
- Lowrance HDS® PRO – direct Active Imaging HD support
- Simrad NSS® 4 – compatible with Active Imaging HD
- Lowrance HDS® LIVE – requires S3100 Sonar Module
- Lowrance HDS® Carbon – requires S3100 Sonar Module
- Lowrance Elite FS™ – requires S3100 Sonar Module
- Simrad NSS evo3S
- Simrad NSS evo3
- Simrad NSX®
An S3100 Sonar Module is required for Active Imaging HD functionality with certain compatible displays, as specified above.
Specifications
- Brand: Lowrance
- Model: Active Imaging™ HD 3-in-1
- SKU / Part Number: 000-16062-001
- Product Type: Sonar Transducer
- Installation: Transom / Bracket Mount
- Sonar: CHIRP
- SideScan: Yes – SideScan HD
- DownScan: Yes – DownScan HD
- FishReveal™ DownScan: Yes
- CHIRP Frequencies: 83/200kHz
- Imaging Frequencies: 700/1200kHz & 455/1075kHz
- Maximum Imaging Frequency: Up to 1.2MHz
- Weight: 1.21kg (2.67lb)
- Waterproof Rating: IP67
- Operating Temperature: -15°C to 55°C
- Storage Temperature: -30°C to 70°C
- Warranty: 1 Year, with up to 4 additional years of upgrade options
Why You'll Love It
- Combines three essential sonar technologies into one transducer
- High-definition SideScan and DownScan provide detailed underwater imaging
- Up to 1.2MHz imaging frequency for enhanced detail
- FishReveal DownScan makes identifying fish amongst structure easier
- CHIRP provides clear fish targets and improved target separation
- Ideal for anglers wanting advanced fishfinding and structure imaging from a single transom-mounted transducer
