The Multiflex Multisteer OH-350 Hydraulic Outboard Steering Kit is a complete premium installation package designed for single outboard boats with engines rated up to 350 HP. It offers smooth, precise, and effortless steering handling by eliminating engine rebound feedback torque during operation.

Features:

Engine Turn Ratio: 6.15 turns from lock-to-lock for highly controllable, incremental maneuvering.
Built-in Safety: Employs an internal lock valve to block ghost movements from engine feedback and a pressure relief valve to shield the lines from sudden tension spikes.
Premium Materials: The cylinder is constructed with marine-grade 316L stainless steel, while the outer casing uses anodised, wear-resistant aluminium alloy.
Maintainability: The shaft seal and lock valve seals are easily accessible and user-replaceable without needing specialized shop tools.

Engine Compatibility:

This universal kit is widely compatible with major 2-stroke and 4-stroke marine outboards
Yamaha: 4-Stroke (90–350 HP) / 2-Stroke (90–200 HP)
Mercury: 4-Stroke (75–350 HP) / 2-Stroke (90–250 HP)
Suzuki: 4-Stroke (70–350 HP)
Honda: 4-Stroke (75–250 HP)
Evinrude/Tohatsu: Varied 4-stroke configurations between 70–300 HP

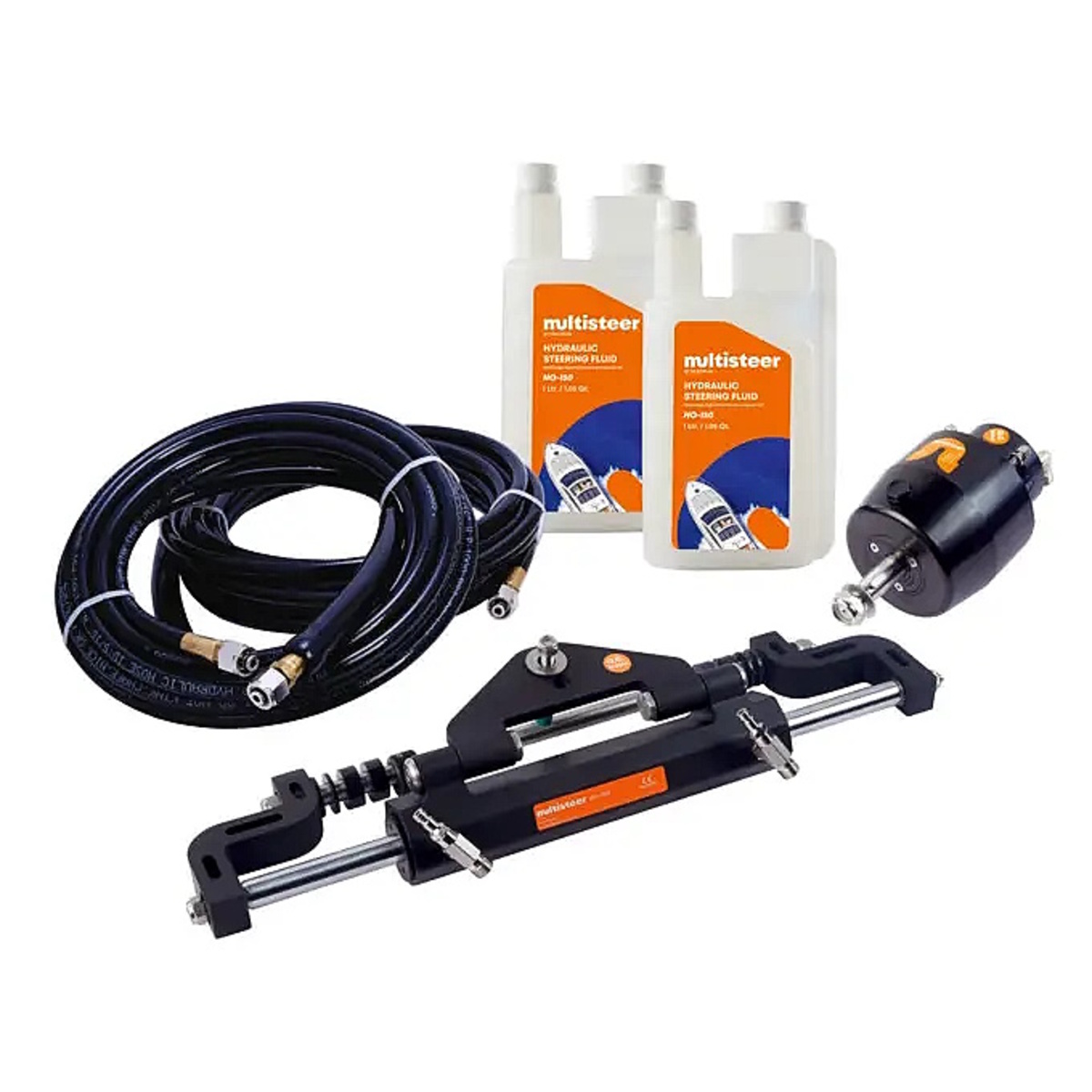

What is Included in the Box:

The standard kit contains all the core components needed to fully overhaul your vessel's steering system (excluding the steering wheel itself):
LM-HP-27 Hydraulic Helm Pump: An axial piston-driven front-mount pump with a standard 3/4" tapered shaft.
LM-OC-350AF Hydraulic Cylinder: A single balanced bullhorn-style front-mount cylinder.
LM-CT-7.5 Hose Kit: Two high-strength 7.5-metre hydraulic lines equipped with factory-crimped end connectors.
LM-HO-150 Steering Fluid: Two 1-litre bottles of specialized premium marine hydraulic oil.
Accessories: An oil filler tube, hardware kit, and dashboard mounting template.
