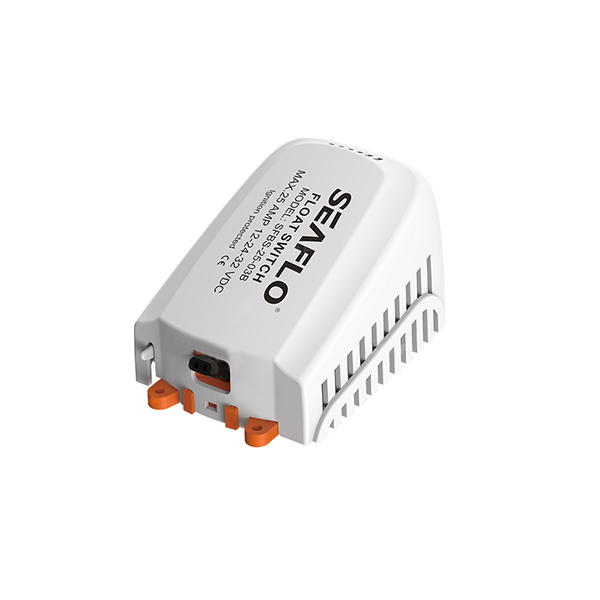

SEAFLO 03 series float switch max amps draws up to 25A.
Captains note: Switch should be mounted above height of the bilge pump base and mounted forward of the bilge pump otherwise a spacer under the switch. This is to ensure pump does not run dry in any conditions.
Features:
- Amp draws up to 25 amp pumps.
- Shells made of high quality ABS material, the internal metal contacts to ensure reliable start / stop
- Heavy duty flow switch is designed for the toughest applications
- Environmentally responsible
- Filter housing to prevent from debris
- Turn on when water level higher than 45-55mm(1.77"-1.97")
- Turn off when water level lower than 20-25mm(0.79"-0.98")
Specifications:

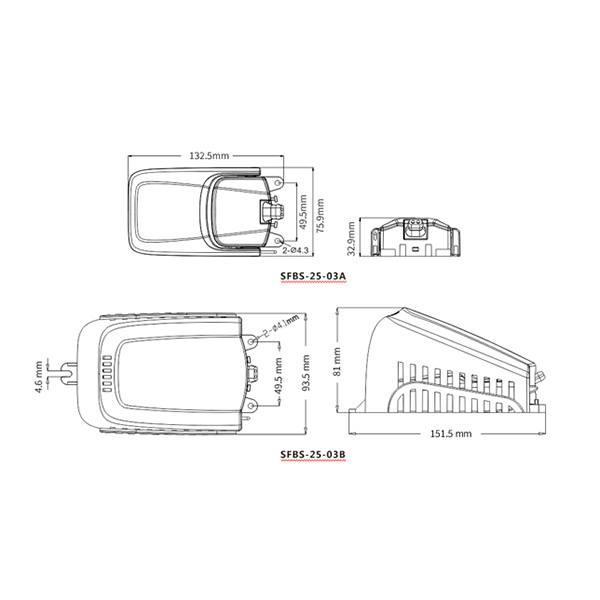

- Model: SFBS-25-03B
- Max Amps (12Volts): 25 A
- Filter Housing: YES
- Wire Lead: 1 M
- Wire Gauge Size: 14AWG
- N.W: 190 g
