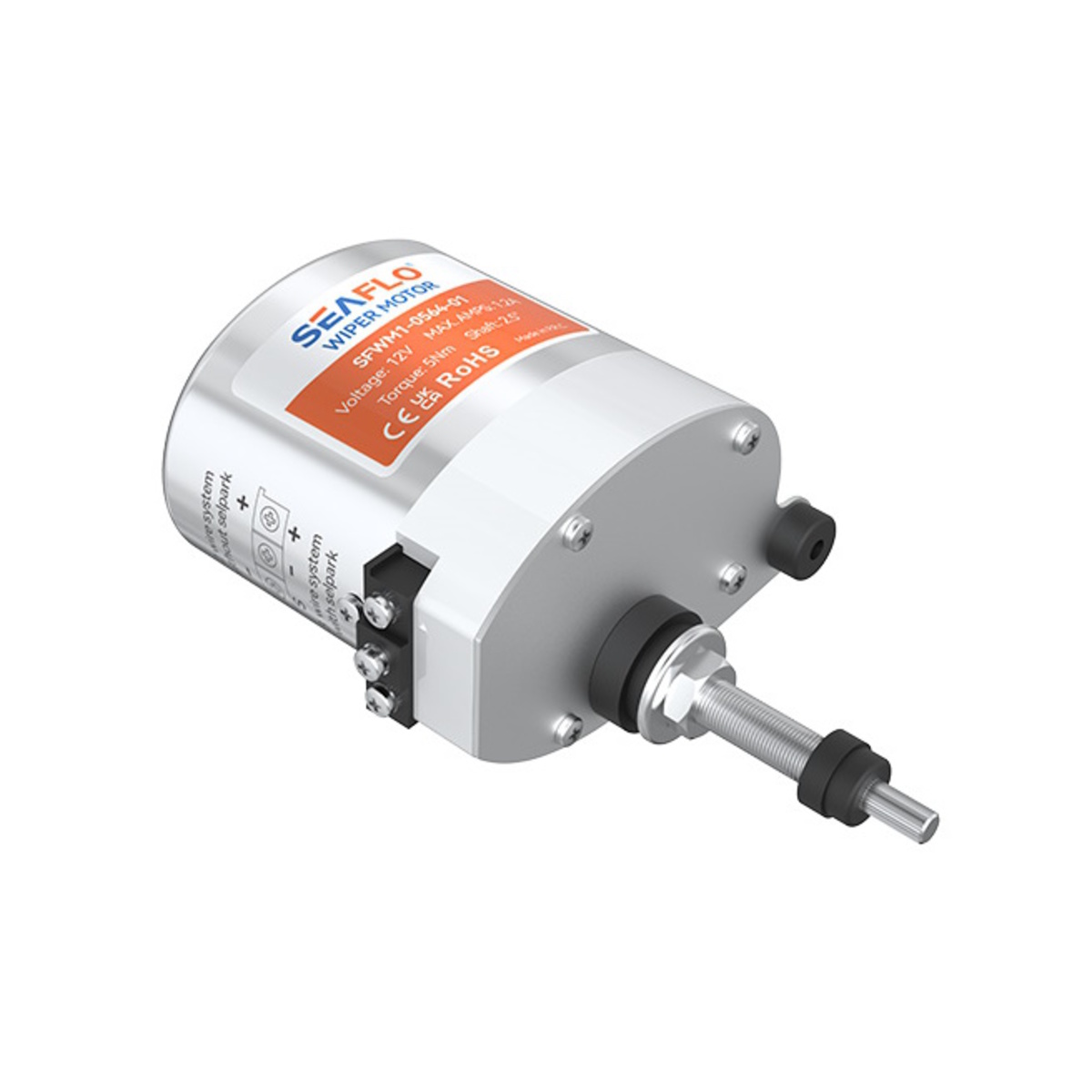

Seaflo 12V 5Nm Compact Wiper Motor 50Mm Shaft (68Mm Oa)

{{ getFromPrefix }} SMART VIP CARD PRICE

Mix 'N' Match Deal: Buy {{ selectedOption.mixnMatch.quantity }} + and save {{ selectedOption.mixnMatch.price }}% {{ selectedOption.mixnMatch.quantity }} x for {{ selectedOption.mixnMatch.description }}

Buy now pay later, no extra cost!

Serves: {{selectedOption.serves}} ( per serve)

save {{ selectedOption.saleSavingsPercent }}%

{{product.options[0].name}}

{{packitem.quantity}} x {{packitem.item.name}} {{packitem.options[0].name}}

{{packitem.quantity}} x

Quantity

- +

Stock Notification

Name

Email Address

Name

Message

Standard NZ $9.99 per order shipping deal, Bulky and Oversized products are delivered to depots only, unless quoted prior to shipment.

For Rural Deliveries please read Shipping T&Cs – Click Here

Store Availability

{{b.name}} Low Stock In Stock Out of Stock

Select a variation to see branch availability

SKU #

01 Series Wiper Motor 5Nm can adjustable sweep angles: 90°, 110°. Adjustable self-parking to the right or left position. Stainless steel driveshaft and durable metal housing. Supports multiple wiper arm and blade combinations. Powers arm/blade combinations up to 380 mm / 405 mm. Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.

Features:

5 Nm torque

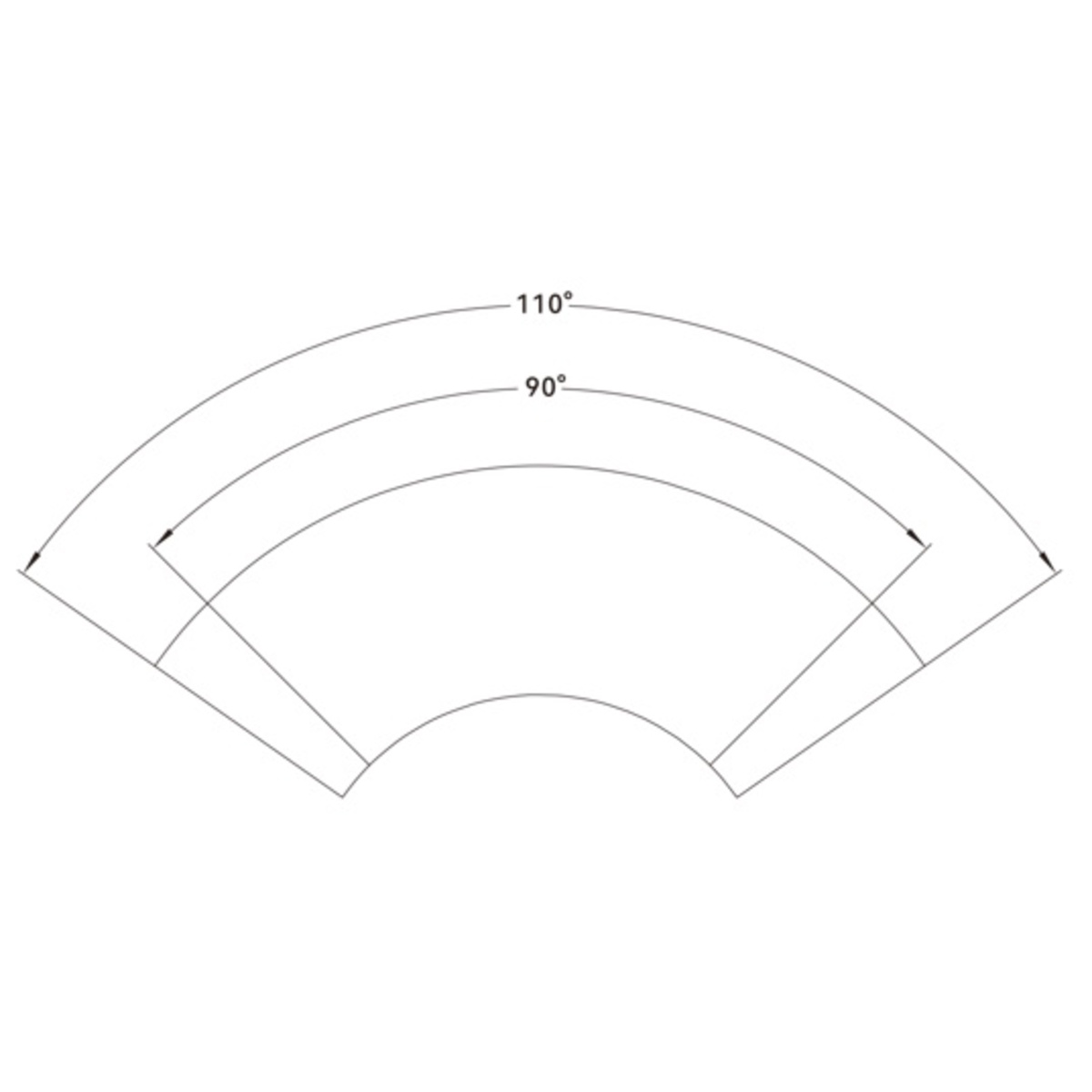

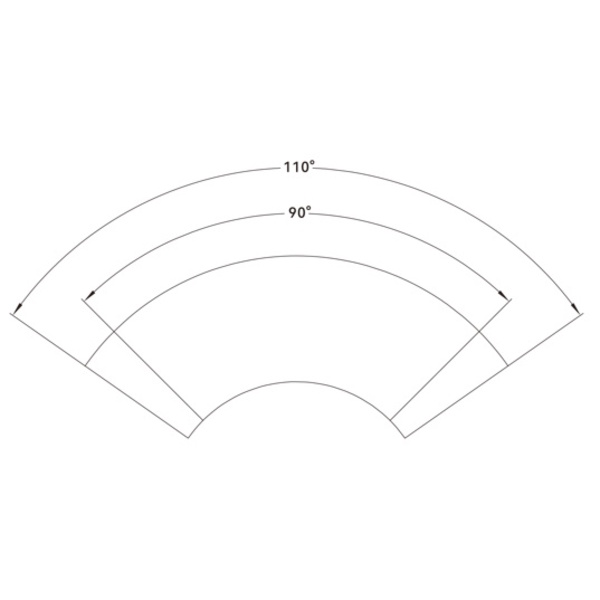

Adjustable sweep angles: 90°, 110°
Adjustable self-parking to the right or left position
Stainless steel driveshaft and durable metal housing
Supports multiple wiper arm and blade combinations
Powers arm/blade combinations up to 380 mm / 405 mm

Specifications:

Max Current: 1.2A
Voltage: 12 V
Torque: 5Nm
Shaft: 64mm / 2.5?
Sweep Angles: 90°, 110°
Sweep Speed: 40 sweeps/min
Fuse: 3A

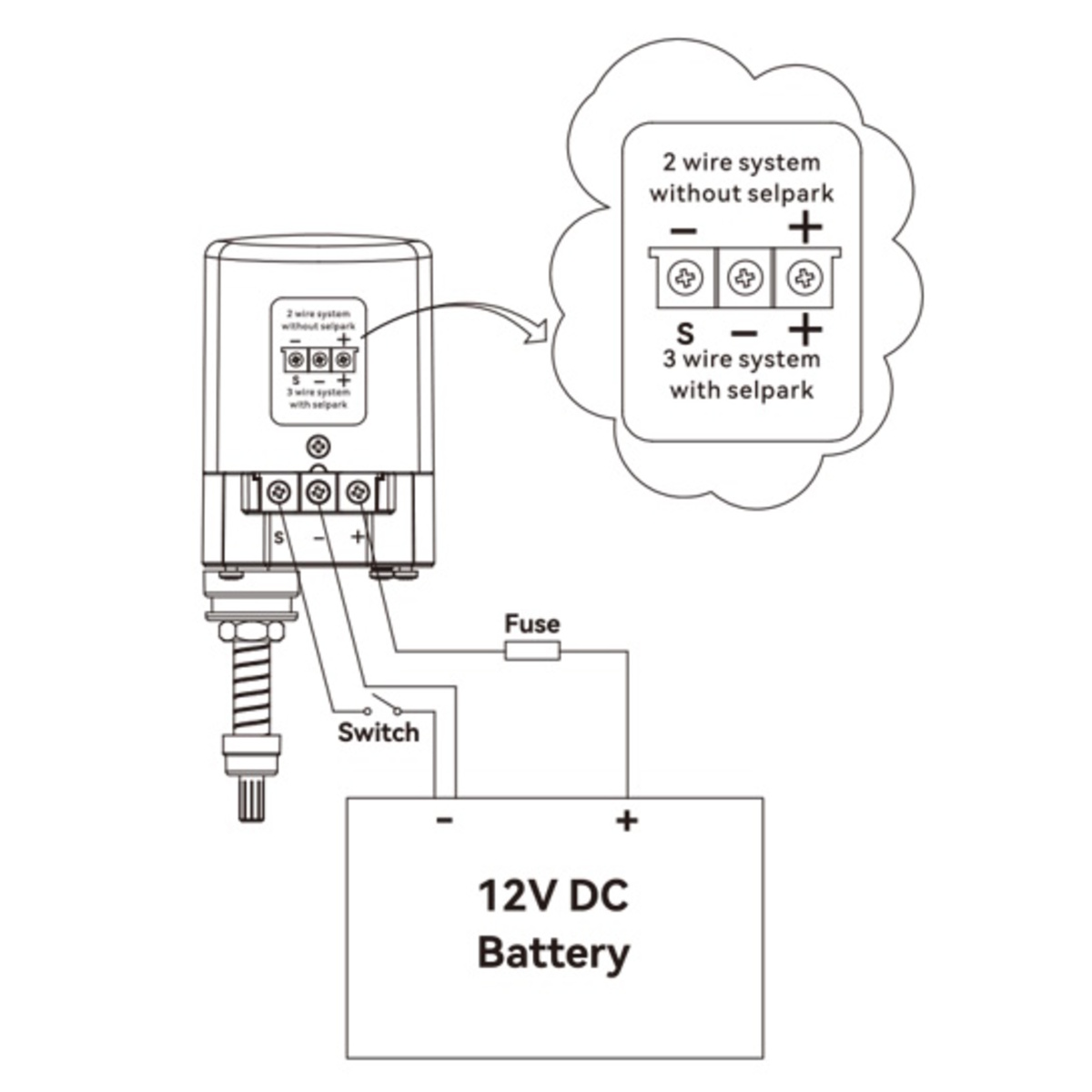

Wiring Options (See Figure):

2 wire system without selfpark
3 wire system with selfpark

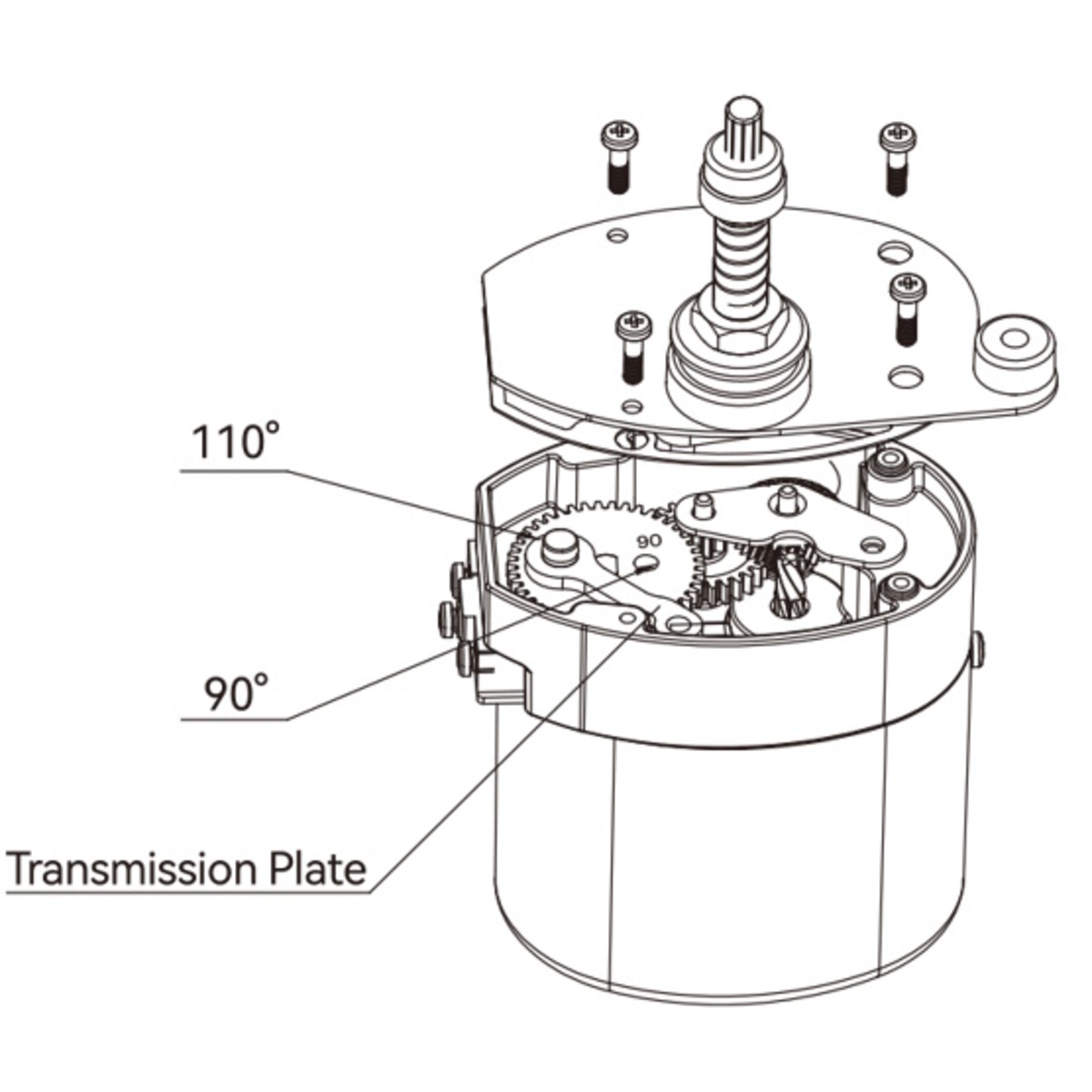

Changing the Wiping Angle:

Remove the four screws located at the bottom of the motor.
Move the transmission plate to the hole corresponding to the desired angle (90° or 110°).
Reinstall the screws and tighten them securely.

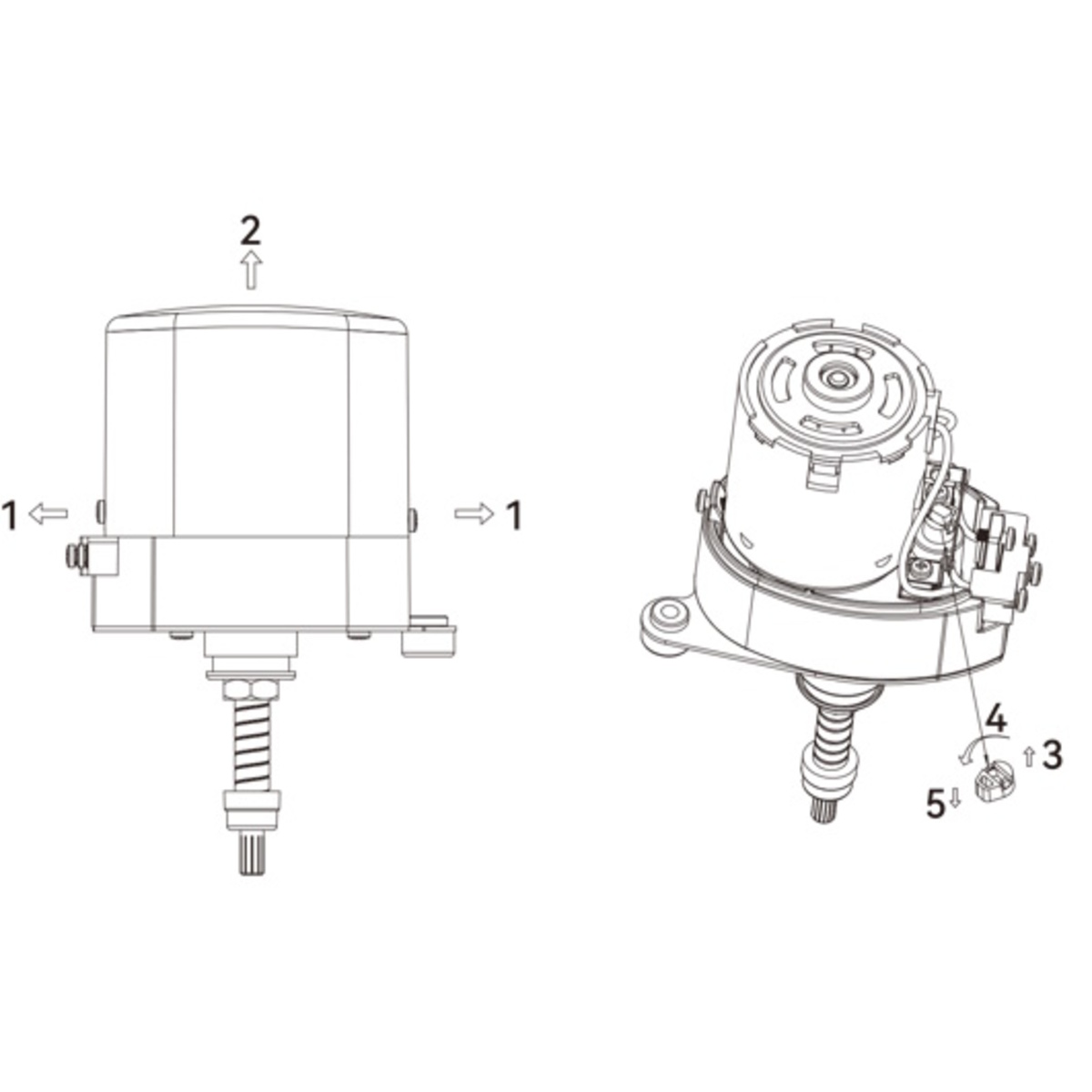

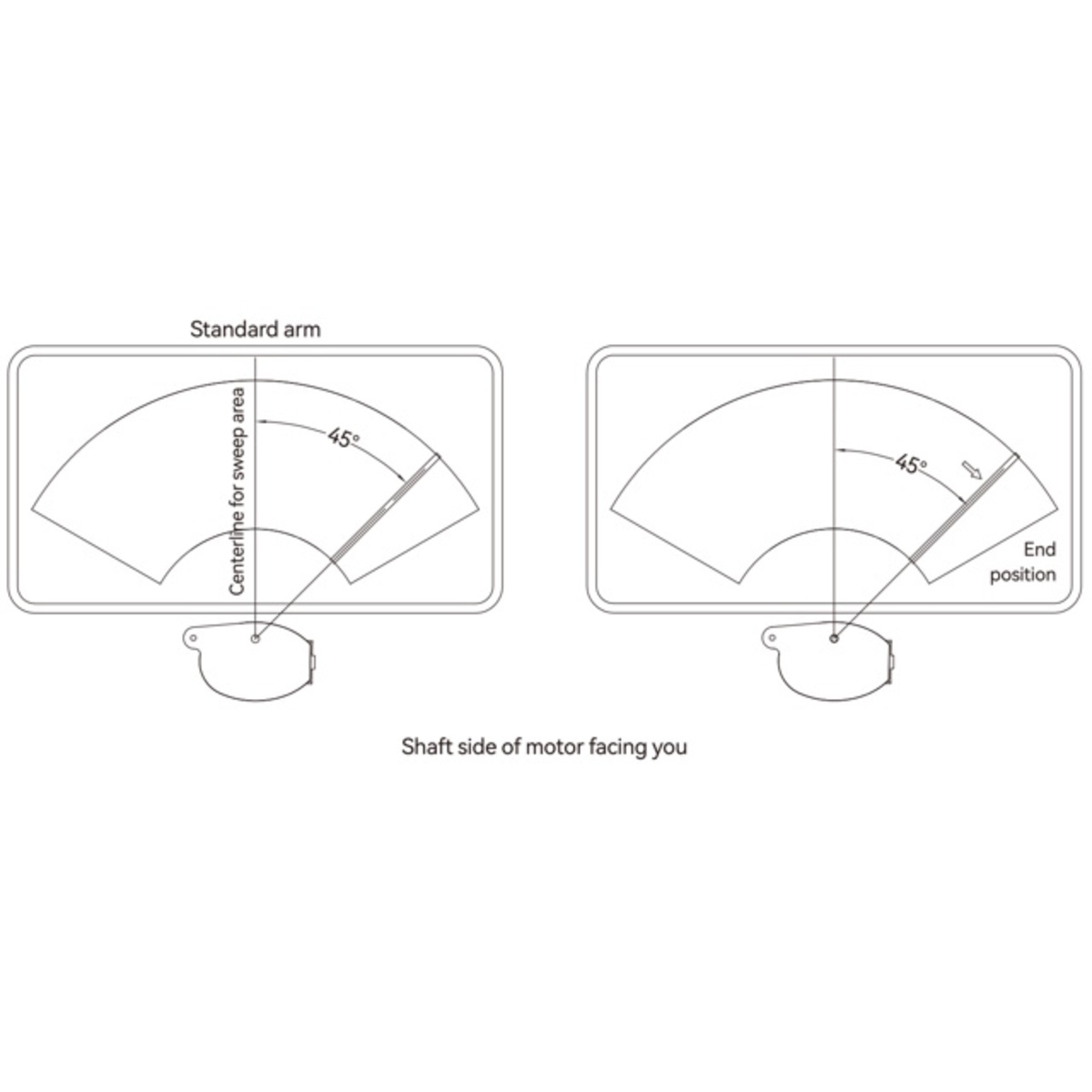

Changing Parking Position:

Remove the screws from both sides of the motor.
Remove the motor cover.
Detach the angle plate assembly.
Rotate the angle plate assembly by 180 degrees.
Reinstall the angle plate assembly.
Reattach the motor cover and tighten the screws on both sides.
