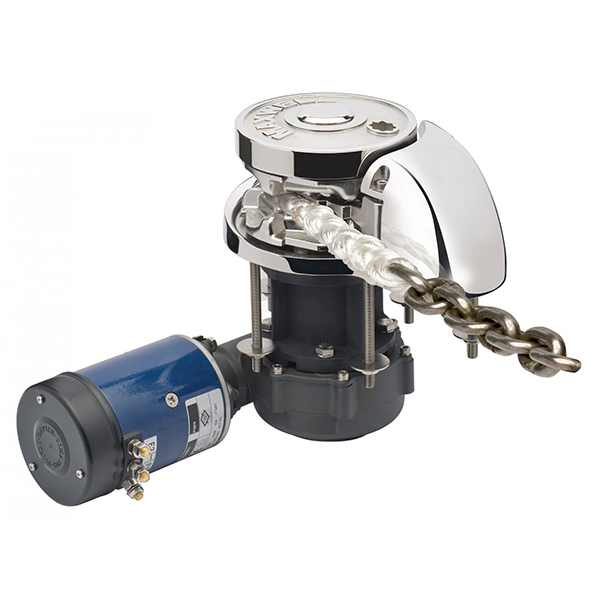

High power, low profile automatic rope/chain anchor winch capable of running 10mm chain with separate rope capstan.

Maxwell’s Revolutionary New Chainwheel
Maxwell once again leads the market in innovative thinking with the introduction of their latest Wave Design™ chainwheel. This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.

As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope compared to all other products on the market. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.



Features:

  • Designed to feed rope/chain in and out of an anchor locker effortlessly and automatically
  • Runs 10mm short link chain and 16mm nylon
  • Can also happily run all chain rodes for those wanting an elegant, low profile winch on their deck
  • Stainless steel pressure ensures complete reliability
  • Compact, low profile design doesn't interfere with the boat aesthetics
  • High speed, dual direction power up/down control
  • Separate rope capstan can be run independently for second anchor or cray pot
  • Cone clutch/brake mechanism allows manual free fall or retrieval from on deck
  • Two piece construction and multiple motor positions allow for simple and flexible installations
  • Sealed oil bath gear box with worm drive ensures a high output and long life
  • Constructed from marine grade aluminium, bronze and stainless steel components Designed and manufactured in NZ
  • National and international service network
  • Supplied with: emergency crank handle, up/down remote, reversing solenoid, circuit breaker


Specifications:

  • Model: RC10-10 capstan
  • Warranty: 3 years
  • Approx. boat size: 10-14m
  • Maximum Pull: 680kg (1500lb)
  • Static Hold: 1500kg (3300lbs)
  • Chain Short Link: 10mm
  • Rope Size (Nylon): 16mm- 8 strand multiplait recommended
  • Chain Speed: 17m/min
  • Rope Speed: 24m/min
  • Power Supply (DC): 12V
  • Motor (Watts): 1200w
  • Net Weight: 20kg (44lbs)

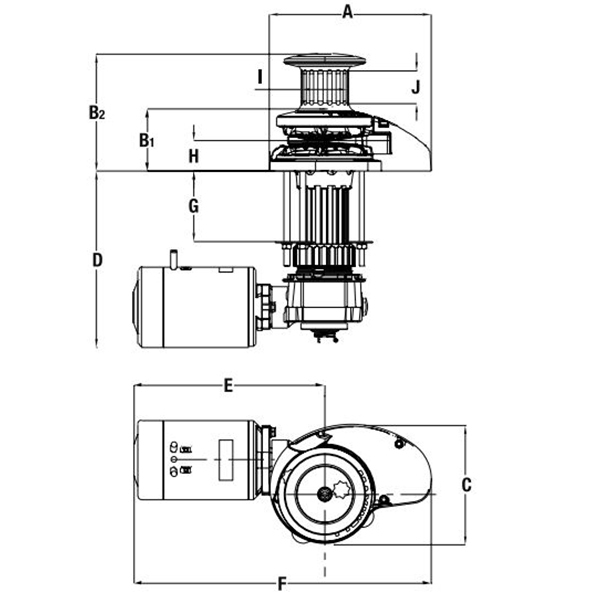

  • Dimensions: A 230mm B1 89mm B2 178mm (with capstan) C 170mm D 201mm E 272mm F 424mm G 65mm (standard deck clearance) H 44mm

More information and details regarding this winch can be found in the link below:

http://www.maxwellmarine.com/PDF/Catalogue/Maxwell_row_2014_Web.pdf

(Visit page 15 for details regarding the RC10-10)
