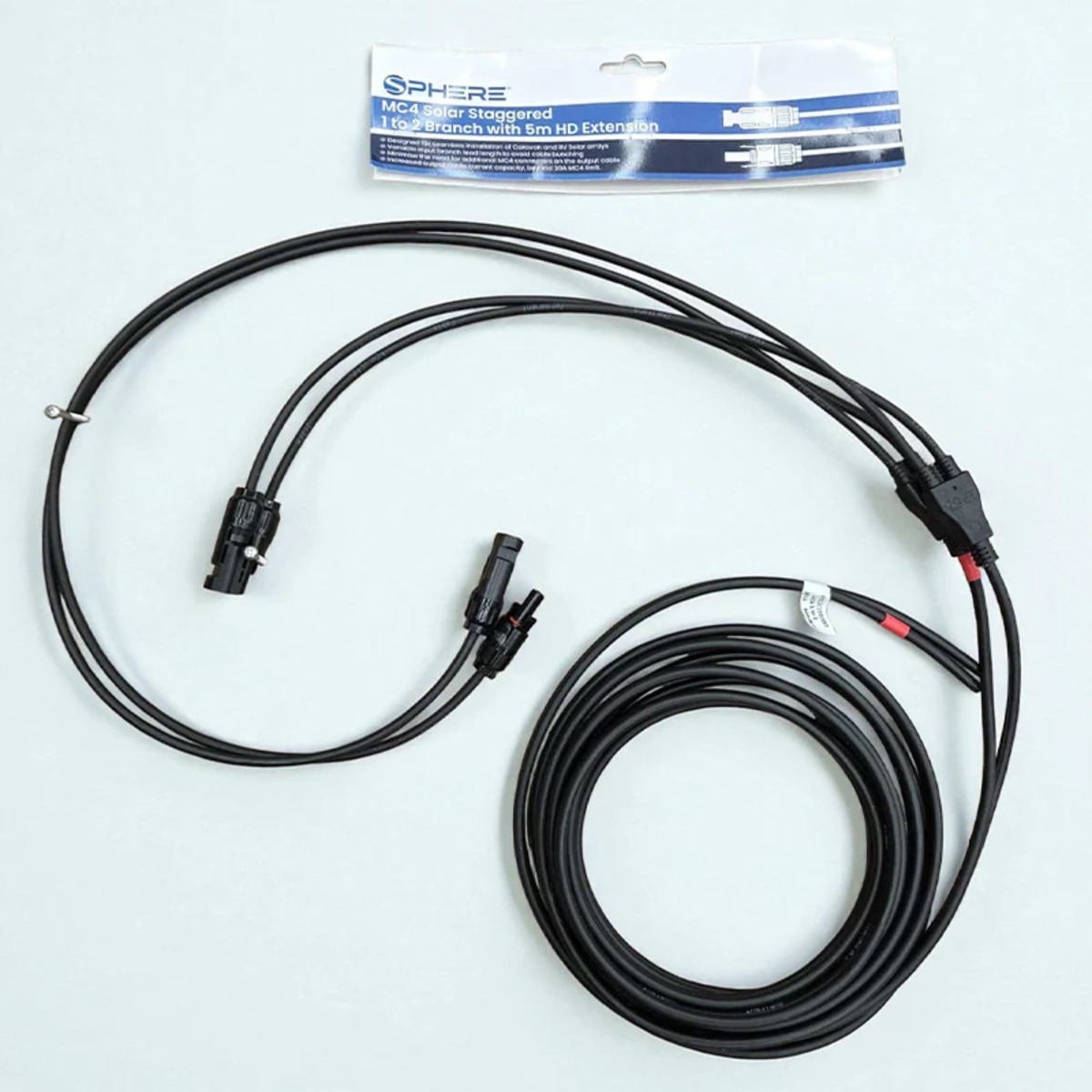

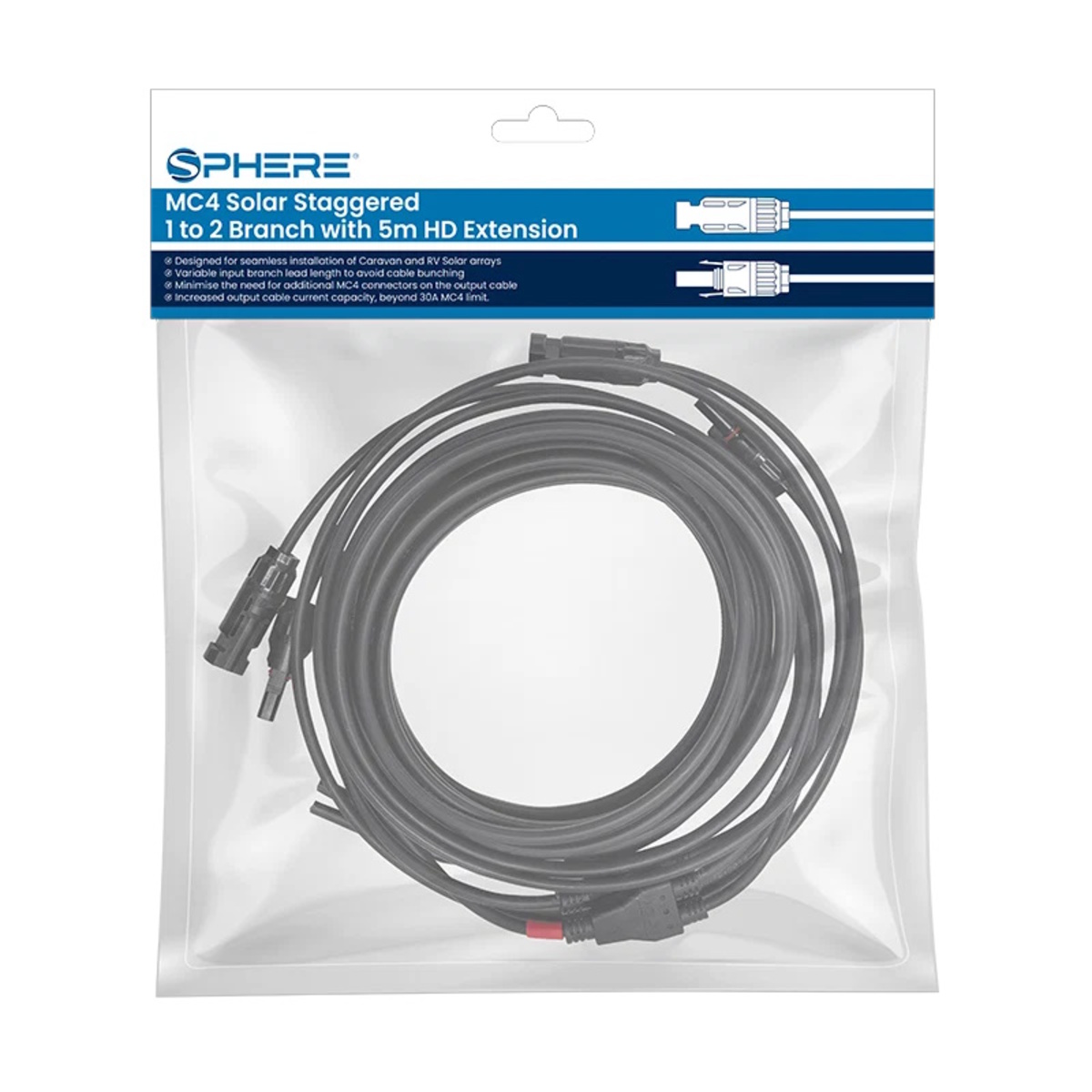

SPHERE MC4 Solar Staggered 1 to 2 Branch with 5m HD Extension
The SPHERE MC4 Solar Staggered 1 to 2 Branch with 5m HD Extension is designed to simplify multi-panel solar installations in caravans, motorhomes, camper trailers and RVs. The staggered branch design helps reduce cable bunching and excess wiring, while the heavy-duty 6mm² main cable provides increased current capacity for efficient power delivery.
Pre-assembled MC4 male and female connectors make installation quick and straightforward, while the IP67-rated construction provides protection against water and dust. Built with UV- and corrosion-resistant materials, this solar lead is designed for reliable outdoor use.
Features:
- Staggered 1-to-2 branch design
- Helps reduce cable clutter and bunching
- Pre-assembled MC4 male and female connectors
- Heavy-duty construction
- IP67 waterproof rating
- UV and corrosion resistant
- Designed for outdoor solar installations
- 6mm² main cable for increased current capacity
- Precision-matched cable lengths for a tidy installation
- Suitable for caravan, RV and camper solar systems
- Rated for current capacity beyond the standard 30A MC4 limit
Ideal For:
- Caravan solar installations
- Motorhomes and RVs
- Camper trailers
- Multi-panel solar systems
- Solar panel extensions and connections
- Outdoor and off-grid solar applications
Specifications:
- Brand: SPHERE
- Product: MC4 Solar Staggered 1 to 2 Branch with 5m HD Extension
- Model / Part Number: 500-06202
- Other Part Number: C2C1TO2EXT
- Branch 1: 4mm² × 0.5m
- Branch 2: 4mm² × 1.0m
- Main cable: 6mm² × 5.0m
- Connectors: Pre-assembled MC4 male and female
- Protection rating: IP67
- UV resistant: Yes
- Corrosion resistant: Yes
- Warranty: 1 year
Dimensions:
- Shipping dimensions: 20 × 20 × 7cm
- Shipping weight: 1.1kg
Why You'll Love It:
The SPHERE 1-to-2 staggered branch lead provides a neat and reliable way to connect multiple solar panels while keeping cable runs organised. With heavy-duty cabling, pre-fitted MC4 connectors and IP67 protection, it's well suited to the demanding conditions experienced by caravans, RVs and other outdoor solar installations.
