IRIS735 Miniature Flush Mount 316L Stainless Steel Camera

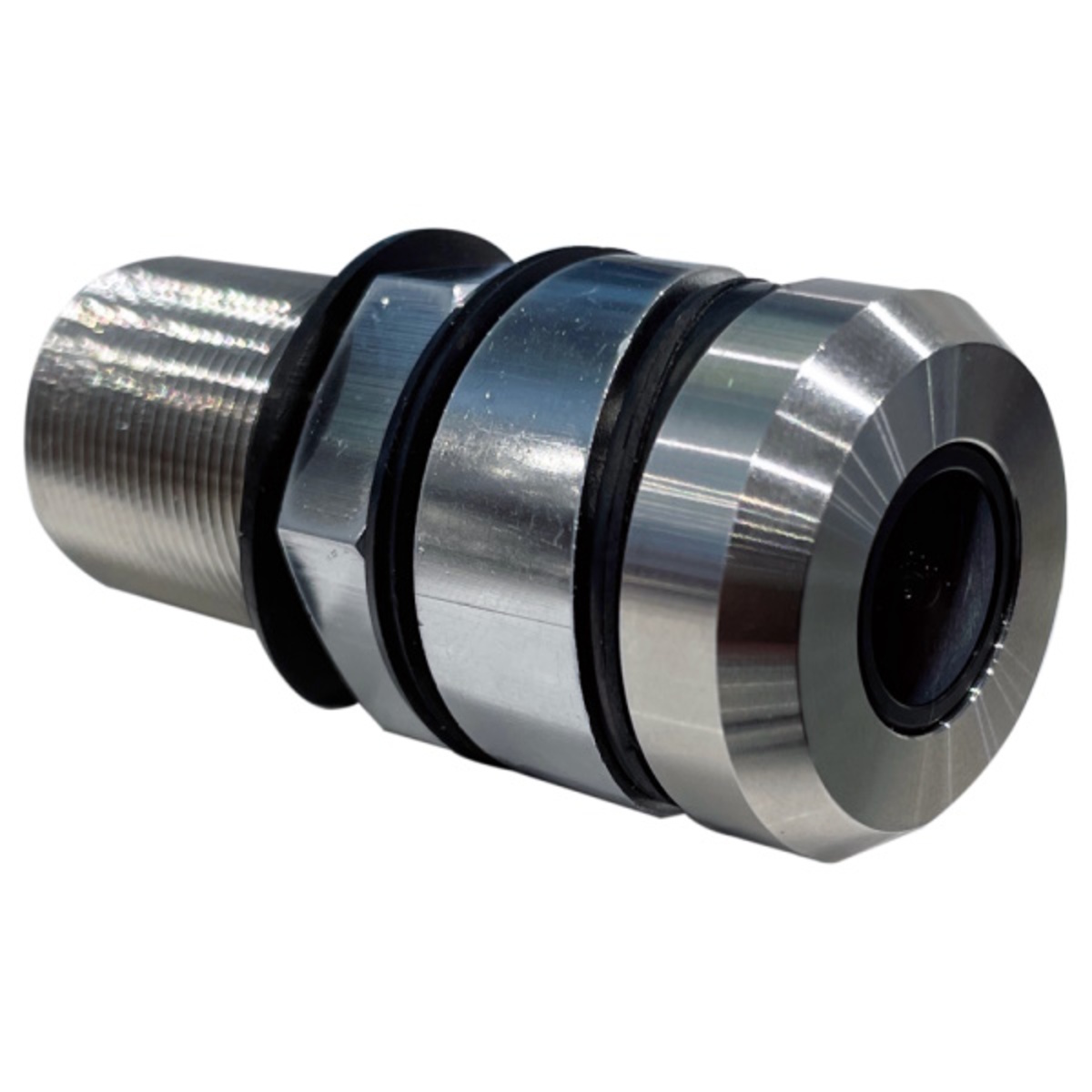

The IRIS735 Miniature Flush Mount Camera is one of the world's smallest through-hull marine cameras, designed to provide discreet, high-quality video monitoring without compromising the appearance of your vessel. Machined from marine-grade 316L stainless steel, the compact flush-mount design measures just 28mm in diameter and 58mm long, making it ideal for installation in hulls, transoms and superstructures.
Featuring a Sony STARVIS™ low-light sensor, the IRIS735 delivers outstanding performance in challenging lighting conditions. The camera supports 4-in-1 video output (CVBS, TVI, CVI and AHD), allowing compatibility with virtually any marine display system, including chartplotters with composite video inputs. Its ultra-wide 140° field of view makes it perfect for docking, reversing, engine room monitoring, security and sports fishing applications.
Features:
- Ultra-compact flush mount marine camera
- Precision machined from marine-grade 316L stainless steel
- Through-hull mounting design
- Sony STARVIS™ ultra-low light sensor
- Full HD 1080p video output
- 4-in-1 video output (CVBS, TVI, CVI & AHD)
- Compatible with chartplotters featuring composite video input
- Compatible with CMAC-HVR systems
- Compatible with TVs via HDMI converter (TVI mode)
- 2.9mm wide-angle lens
- 140° horizontal field of view
- Excellent low-light performance
- IP67 waterproof rating
- Low power consumption
- Compact and discreet installation
- Ideal for permanent marine installations
Ideal For:
- Docking assistance
- Reversing camera systems
- Engine room monitoring
- Deck surveillance
- Sports fishing vessels
- Commercial vessels
- Onboard security systems
- Tender monitoring
- Road traffic surveillance
- Extreme marine environments
Specifications:
- Brand: IRIS
- Model: IRIS735
- Product Type: Flush Mount Marine Camera
- Sensor: 1/2.8" Sony STARVIS™ CMOS
- Resolution: 1920 × 1080 Full HD @ 30fps (NTSC) / 25fps (PAL)
- Video Formats: HD-TVI, HD-CVI, AHD and Composite Video (CVBS)
- Minimum Illumination: 0.001 Lux (F1.2)
- Lens: 2.9mm
- Horizontal Field of View: 140°
- Material: 316L Marine-Grade Stainless Steel
- Day/Night Modes: Auto / Colour / Monochrome / External
- Shutter Speed: Auto / Manual (1/50–1/50,000 sec)
- White Balance: ATW / AWC / Indoor / Outdoor / Manual / AWB
- Backlight Compensation: OFF / BLC / HSBLC
- Wide Dynamic Range: D-WDR
- Noise Reduction: DNR
- Motion Detection: Yes
- Image Functions: Mirror, Vertical Flip and Rotate
- Power Supply: DC12V ±10%
- Power Consumption: 125mA (1.5W)
- Environmental Rating: IP67
- Operating Temperature: -10°C to +50°C

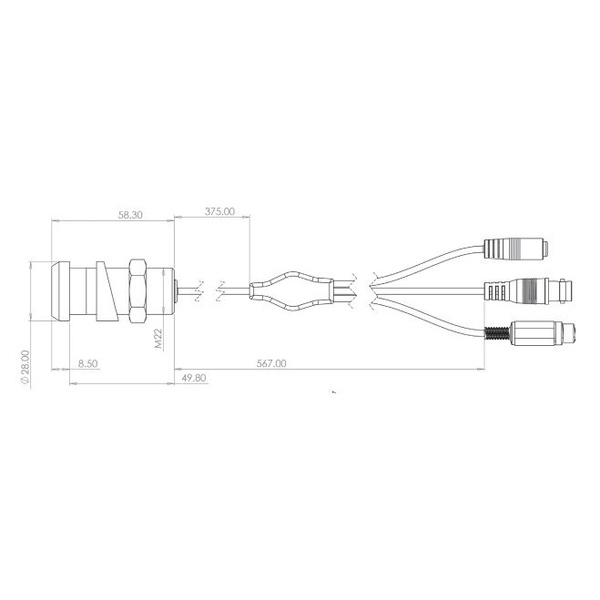

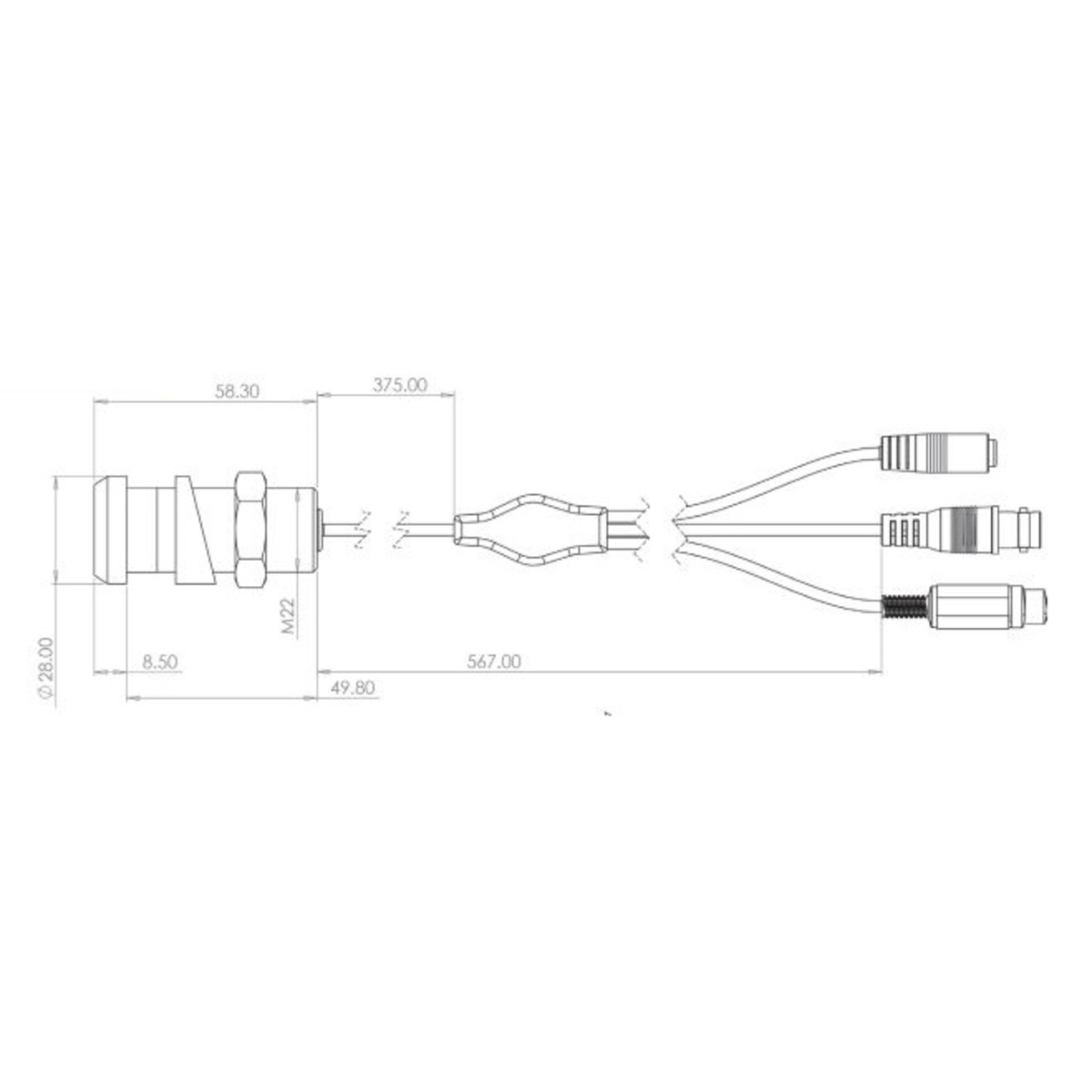

- Dimensions: 28mm Diameter × 58mm Length
- Bezel Height: 8.5mm
- Thread: M22
- Weight: 0.1kg
Why You'll Love It:

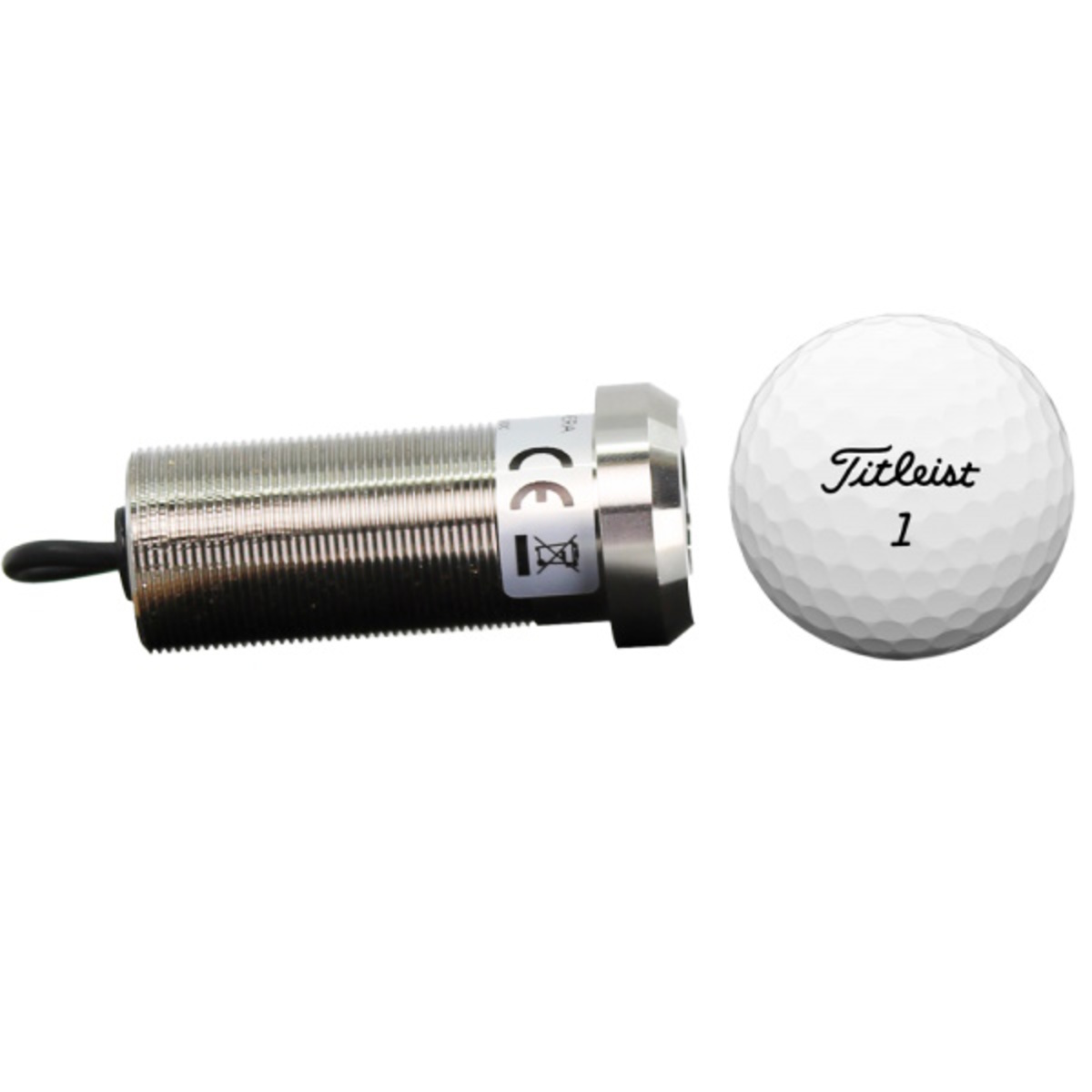

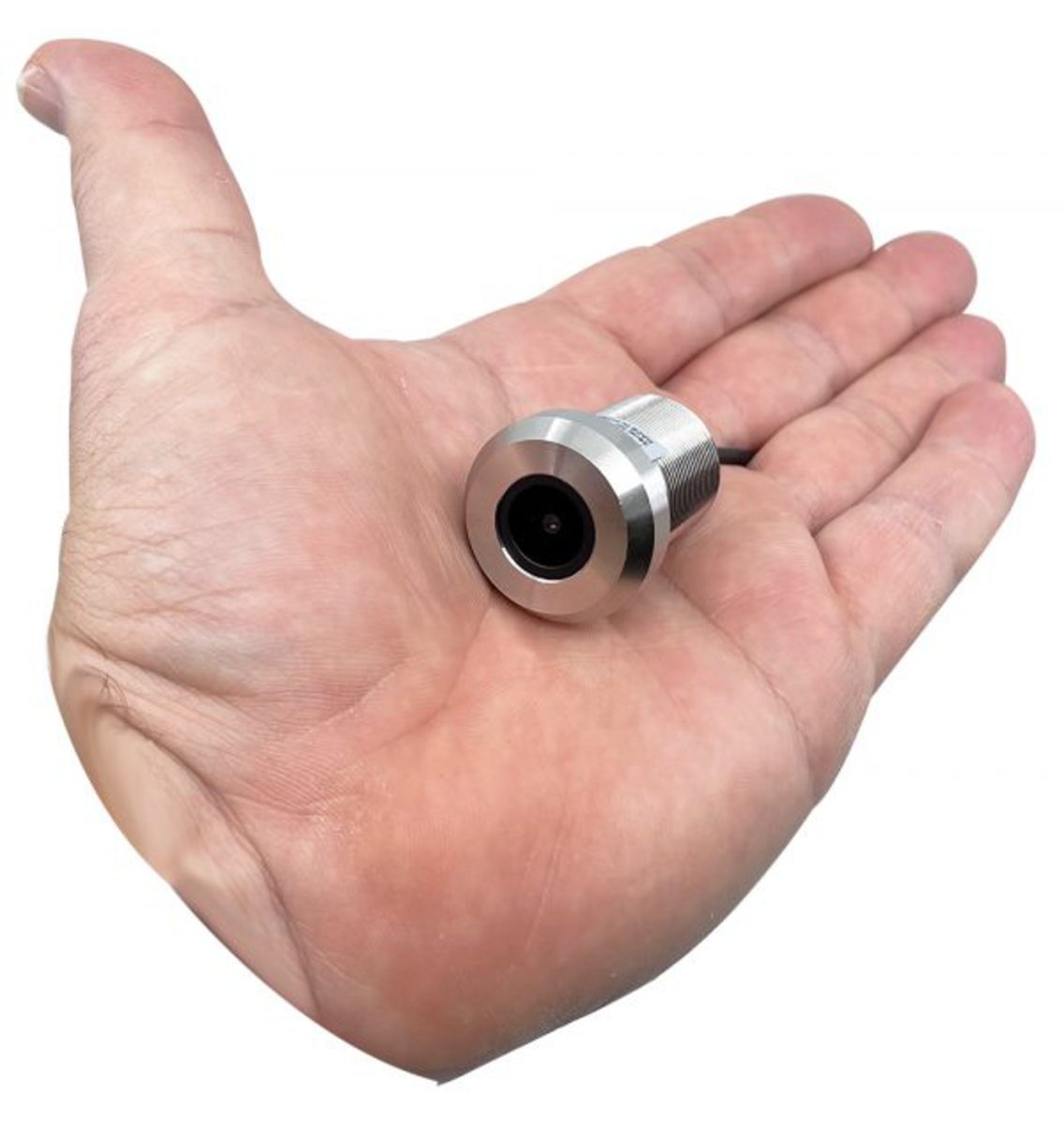

- One of the smallest through-hull marine cameras available
- Flush-mount design maintains a clean factory appearance
- Outstanding low-light performance with Sony STARVIS™ technology
- Wide viewing angle provides excellent docking visibility
- Premium 316L stainless steel construction resists corrosion
- Compatible with a wide range of marine electronics
- Ideal for security, docking and fishing applications
