Simrad NSS® 4 10" Multifunction Display – No Built-In Sonar

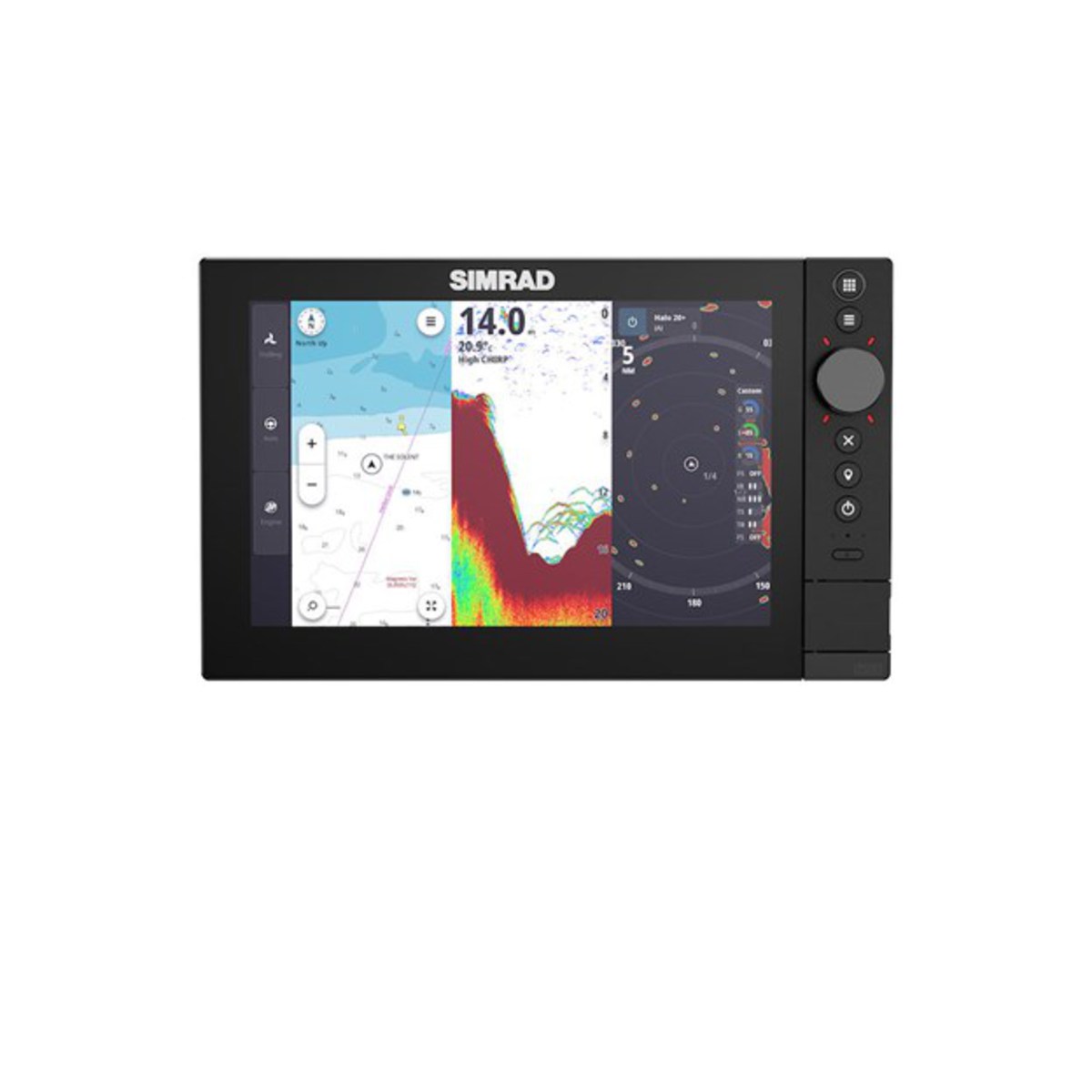

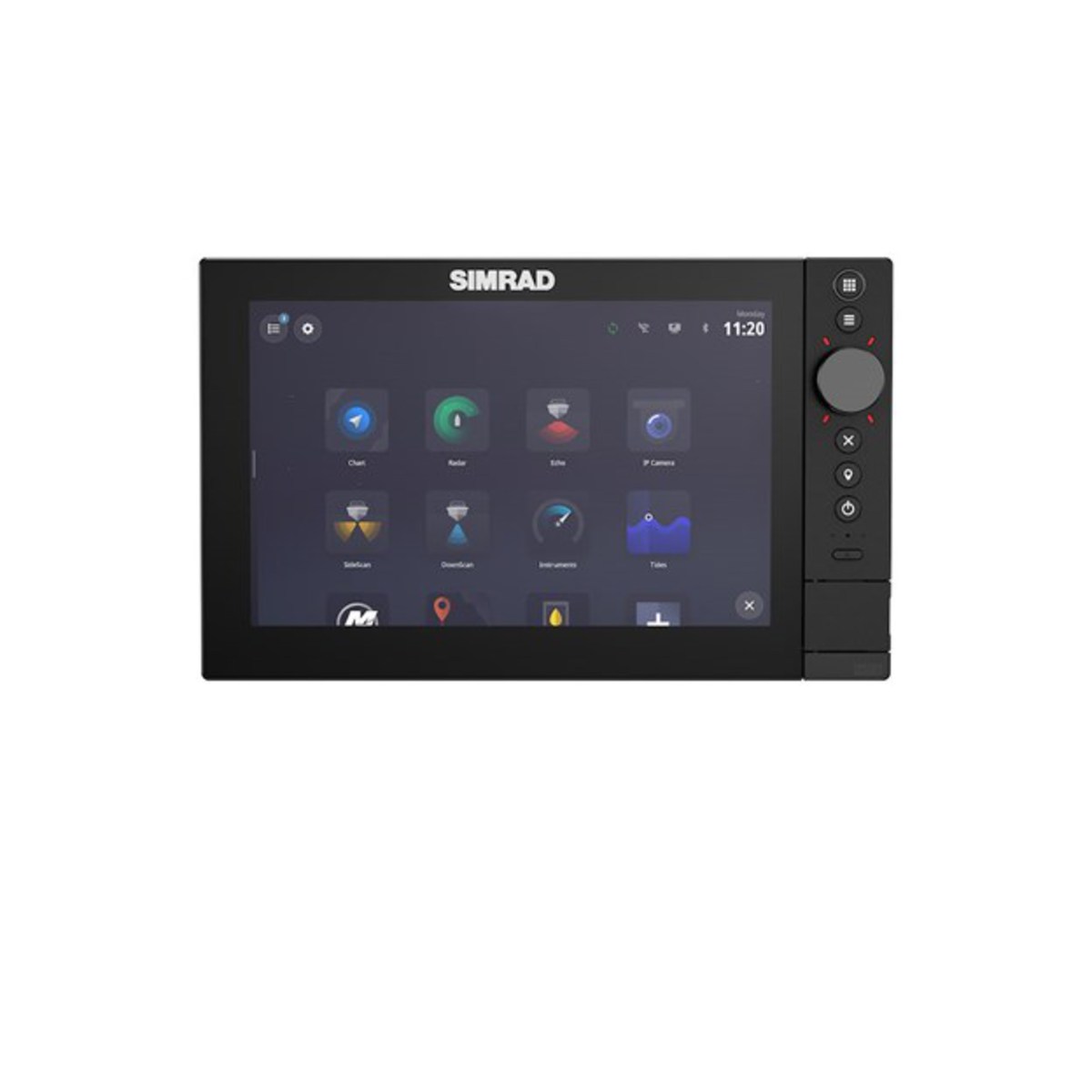

The Simrad NSS® 4 10" Multifunction Display is a powerful next-generation chartplotter designed for boaters who want fast performance, flexible control and extensive system integration. Redesigned inside and out, the NSS 4 combines a premium 10-inch touchscreen with a rotary control dial and keypad, giving you intuitive control in a wide range of boating conditions.

Powered by a high-performance Qualcomm® 8-core processor, the NSS 4 delivers fast chart rendering, smooth transitions and responsive operation. Its bright 1200-nit display provides excellent visibility, while the hybrid control system lets you switch seamlessly between touchscreen, rotary dial and physical buttons.

This specific 000-16275-001 model does not have built-in sonar ports. Sonar functionality can be added through a compatible network sonar module such as the Simrad S3100 or S5100, or through another compatible networked Simrad display with echosounder capability.

Features

• 10-inch premium multifunction display
• Hybrid control with touchscreen, rotary dial and keypad
• Powerful Qualcomm® 8-core processor
• Bright 1200-nit display
• 1280 × 800 screen resolution
• Fast chart rendering and auto-routing performance
• Built-in 10Hz GNSS receiver
• Supports GPS, GLONASS and combinations with Galileo, BeiDou and QZSS
• Supports C-MAP® Discover™ X and Reveal™ X charts
• Compatible with selected third-party cartography
• Dual front-accessible microSD card slots
• NMEA 2000® connectivity
• Ethernet networking
• Wi-Fi connectivity

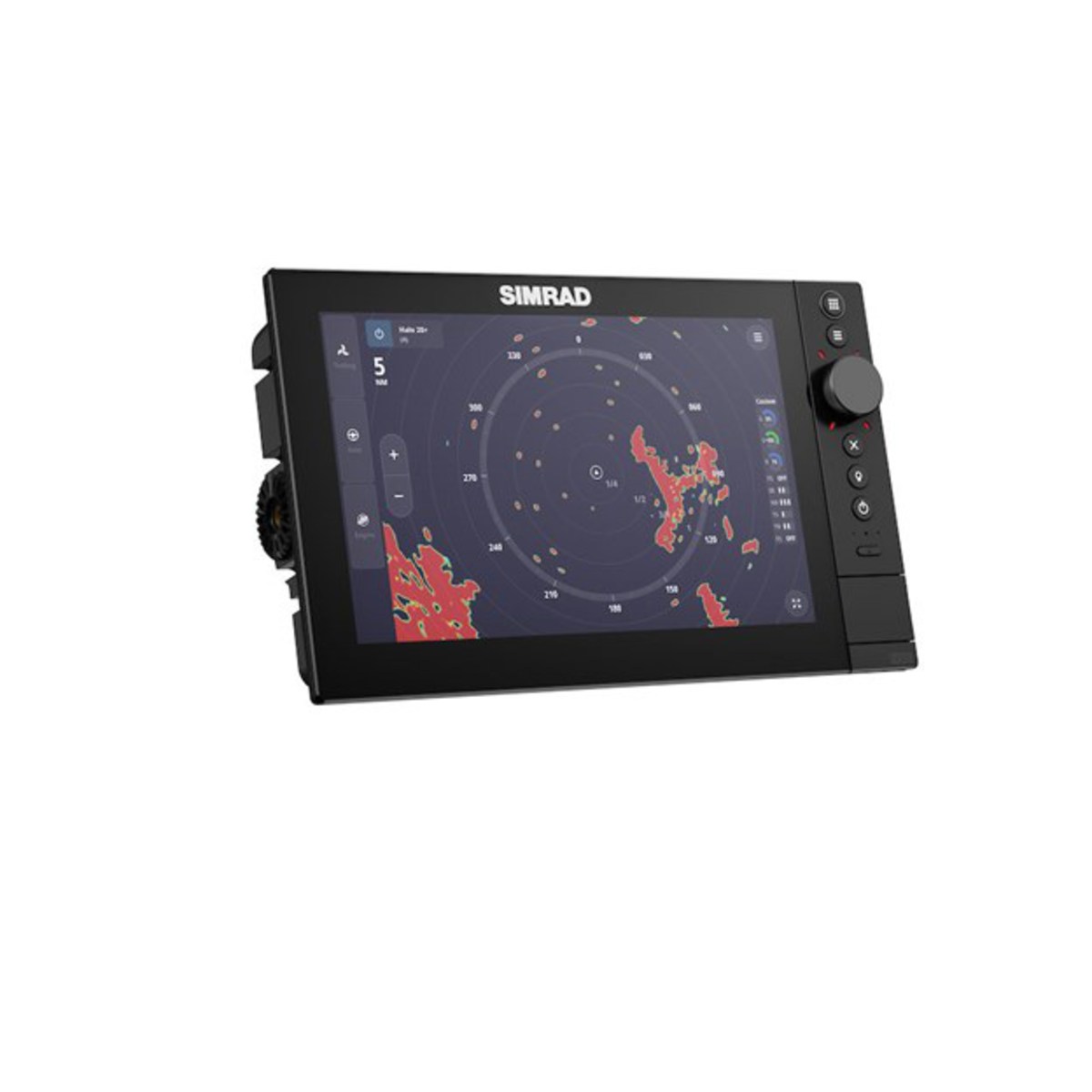

• Compatible with Simrad HALO® radar systems
• Compatible with Simrad autopilot systems
• CZone® / DDS digital switching support
• Compatible with Simrad RECON™, Rhodan® and MotorGuide® trolling motors
• IPX6 and IPX7 waterproof rating
• 2-year limited warranty

Important – No Built-In Sonar

This model does not feature built-in echosounder/sonar ports.

For fishfinder and sonar functionality, it requires a compatible network sonar source, such as:

• Simrad S3100 Sonar Module
• Simrad S5100 Sonar Module
• Another compatible networked MFD with echosounder ports

When connected to compatible sonar hardware, the NSS 4 platform supports advanced sonar technologies including compatible 1kW CHIRP, Active Imaging™ and Active Imaging™ HD configurations.

Specifications

• Brand: Simrad
• Model: NSS® 4 10"
• Part Number / SKU: 000-16275-001
• Product Type: Multifunction Display / Chartplotter
• Built-In Sonar: No
• Screen Size: 10 inches
• Display Resolution: 1280 × 800
• Screen Brightness: 1200 nits
• Viewing Angles: 80° top/bottom, 80° left/right
• Processor: Qualcomm® 8-Core
• Controls: Multi-Touch Screen, Rotary Dial & Keypad
• GPS: Built-In 10Hz GNSS Receiver

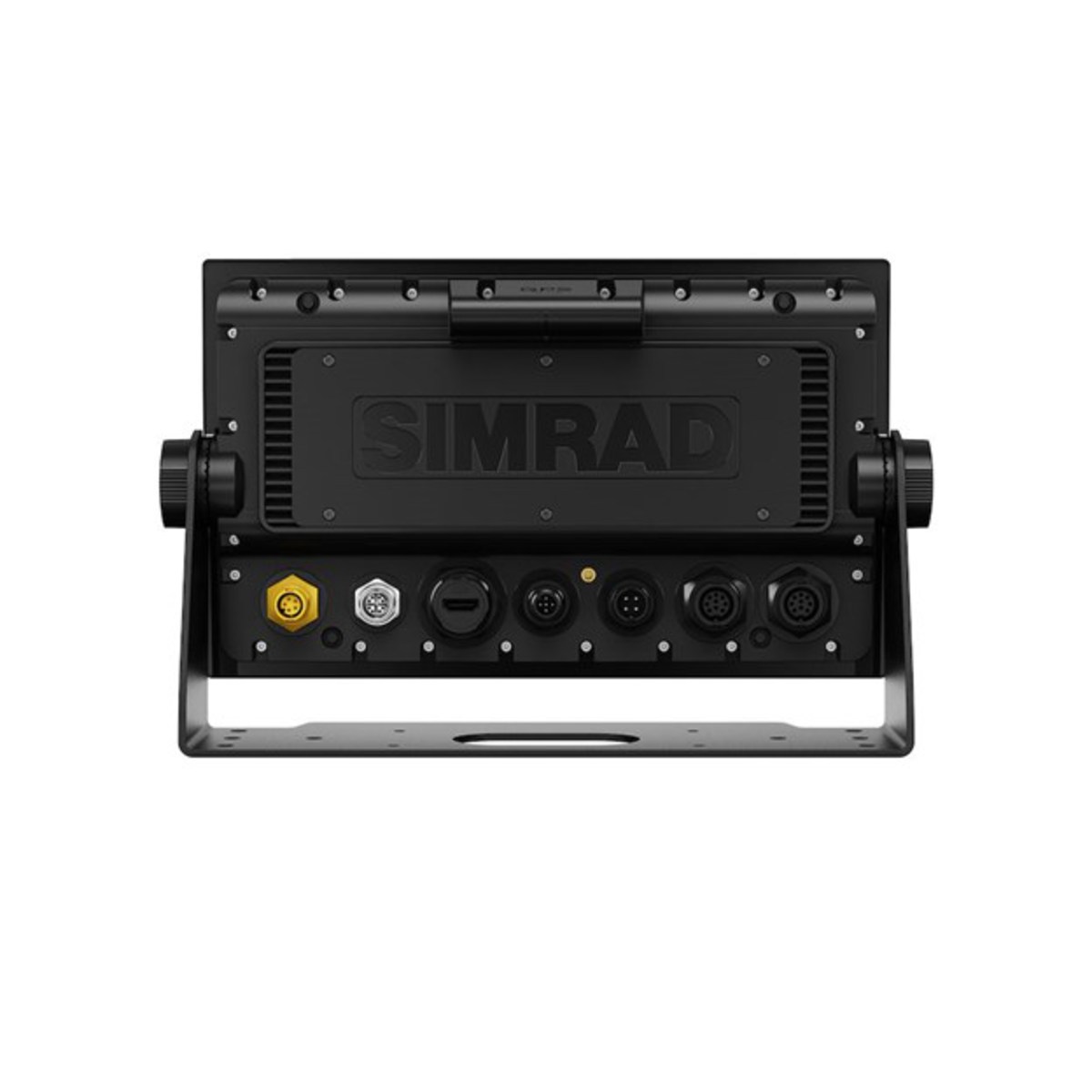

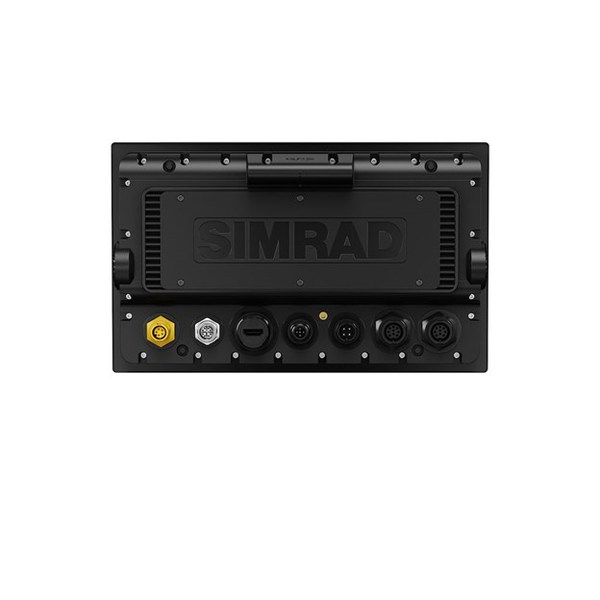

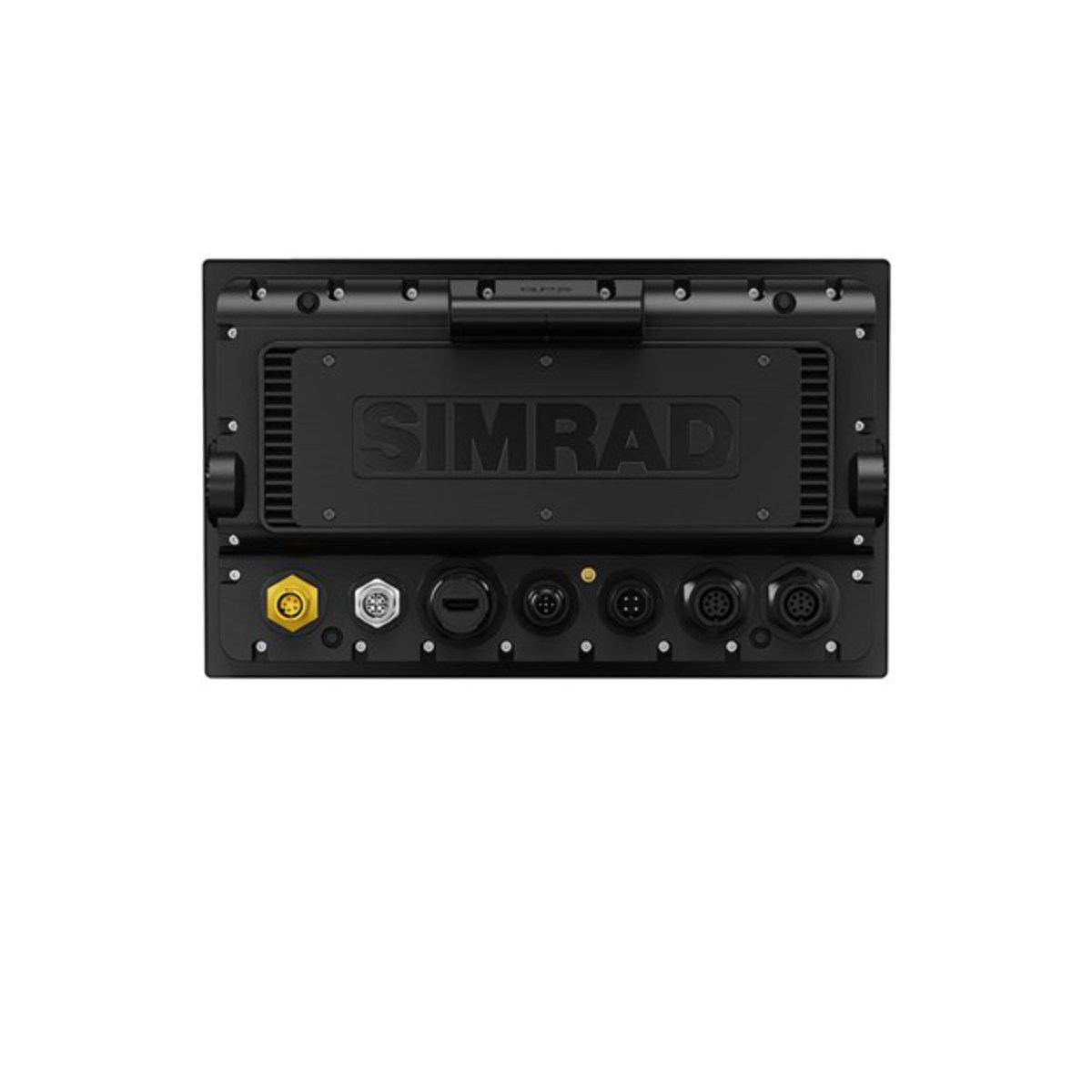

• NMEA 2000: 1 × NMEA 2000 Micro-C Port
• Ethernet: 2 Ports
• Card Slots: 2 × microSD / SDHC
• Supply Voltage: 12/24V DC (10–31.2V DC)
• Maximum Power Consumption: 28W
• Recommended Fuse: 5A
• Waterproof Rating: IPX6 / IPX7
• Weight: 1.8kg
• Warranty: 2 Years

Dimensions

• Display Only: 287.9mm W × 176.1mm H × 79.6mm D
• With Bracket: 315.8mm W × 196.5mm H × 79.6mm D
• Mounting: Bracket mount or rear mount
• Compass Safe Distance: 35cm

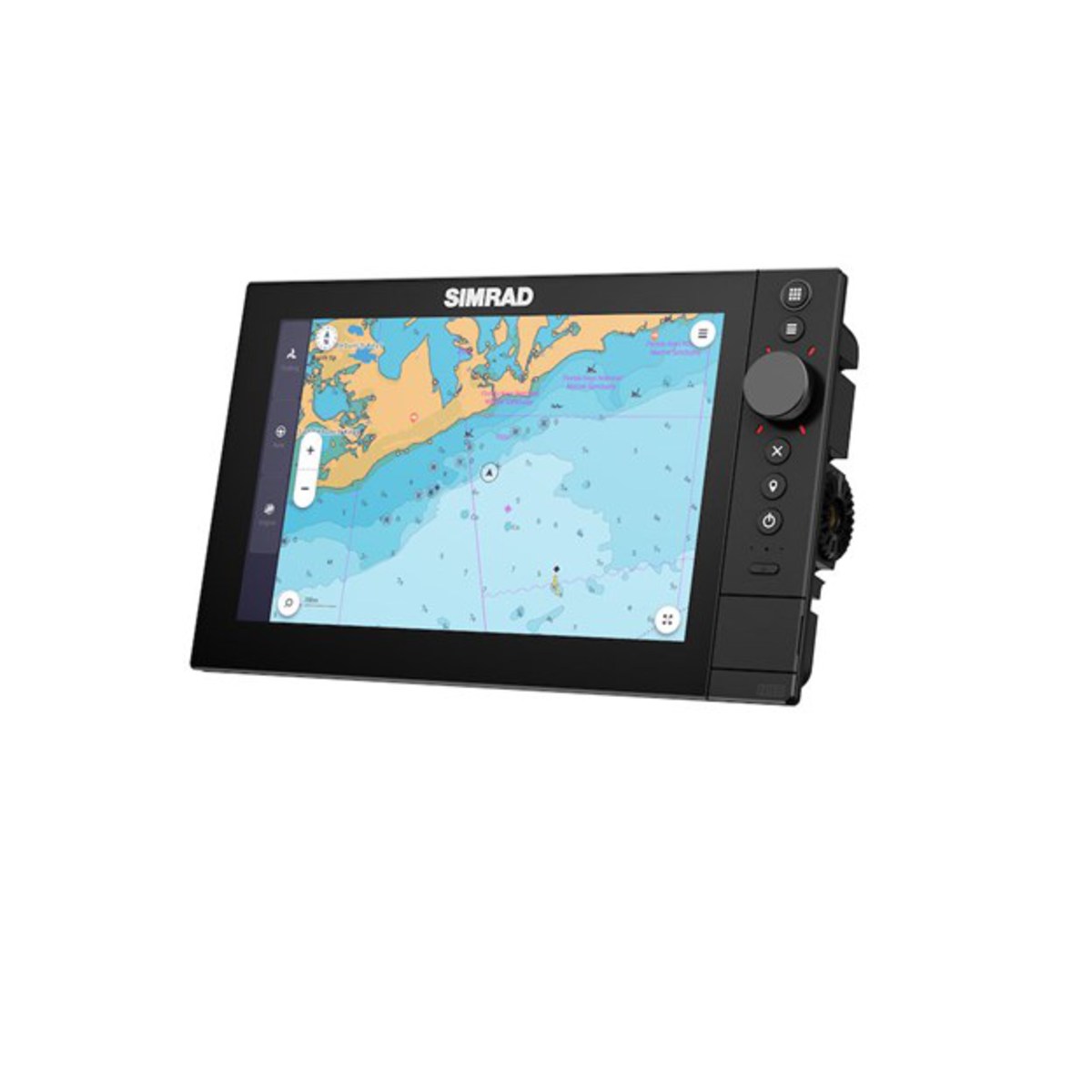

Chart Compatibility

The NSS 4 supports:

• C-MAP® Discover™ X
• C-MAP® Reveal™ X
• Compatible third-party charting, including selected CMOR and StrikeLines content

This model includes a worldwide basemap that is not intended for navigation, so a compatible detailed chart card or chart available over the network is required for detailed navigational charting.

Why You'll Love It

• Fast, responsive performance from the powerful 8-core processor
• Flexible touchscreen, rotary dial and keypad controls
• Bright 10-inch display for excellent visibility on the water
• Extensive integration with Simrad radar, autopilot, sonar and trolling motor systems
• Flexible network sonar options let you build a system around your requirements
• Ideal as the centrepiece of a fully integrated Simrad electronics package
