Simrad NAC-3 VRF Autopilot Core Pack – 000-13338-001
The Simrad NAC-3 VRF Core Pack provides the core components needed to build a powerful Simrad Continuum autopilot system for larger outboard and sterndrive boats.
Recommended for outboard and sterndrive vessels over 10 metres (35 feet), the package combines the NAC-3 Autopilot Computer with a Precision-9 solid-state compass and the cabling and connectors required to build or connect to an NMEA 2000® network.
Simrad’s Virtual Rudder Feedback (VRF) technology eliminates the need for a mechanical rudder feedback unit on suitable outboard and sterndrive installations, helping simplify installation. Simply add a compatible drive unit for your steering system and your choice of compatible Simrad autopilot controller or multifunction display to complete the system.
Features
- Complete core package for building a Simrad Continuum autopilot system

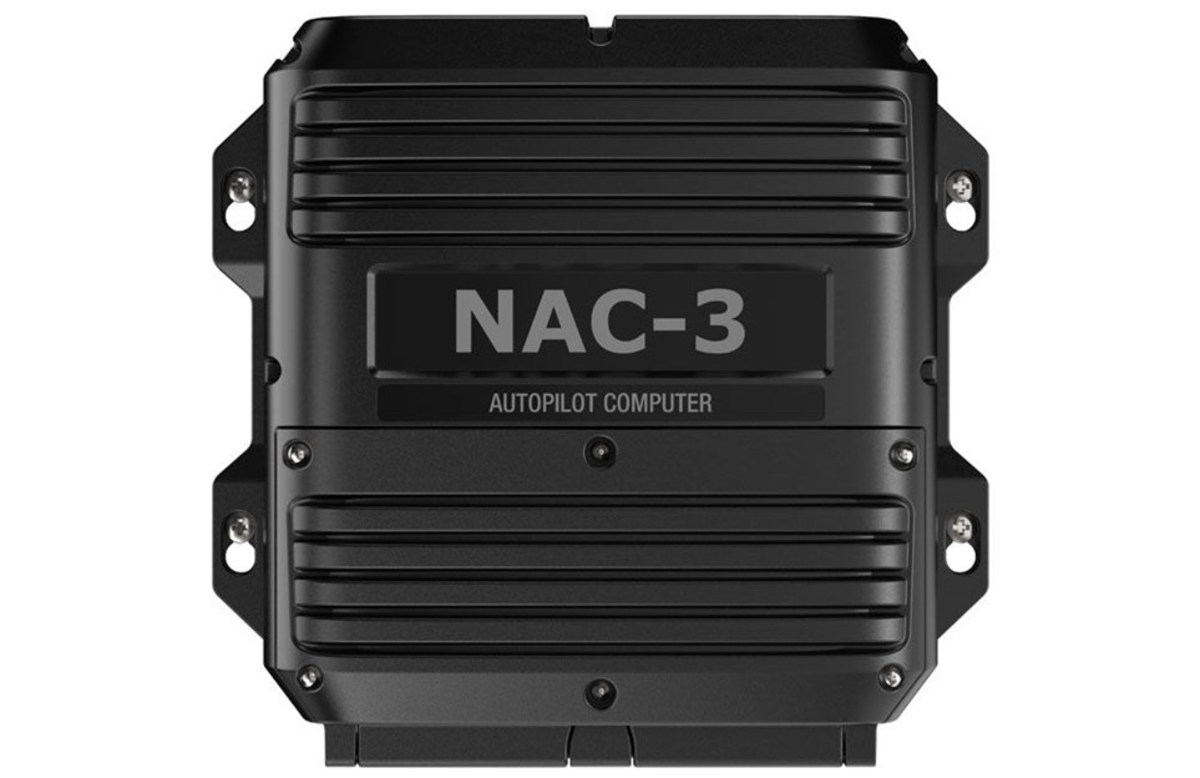

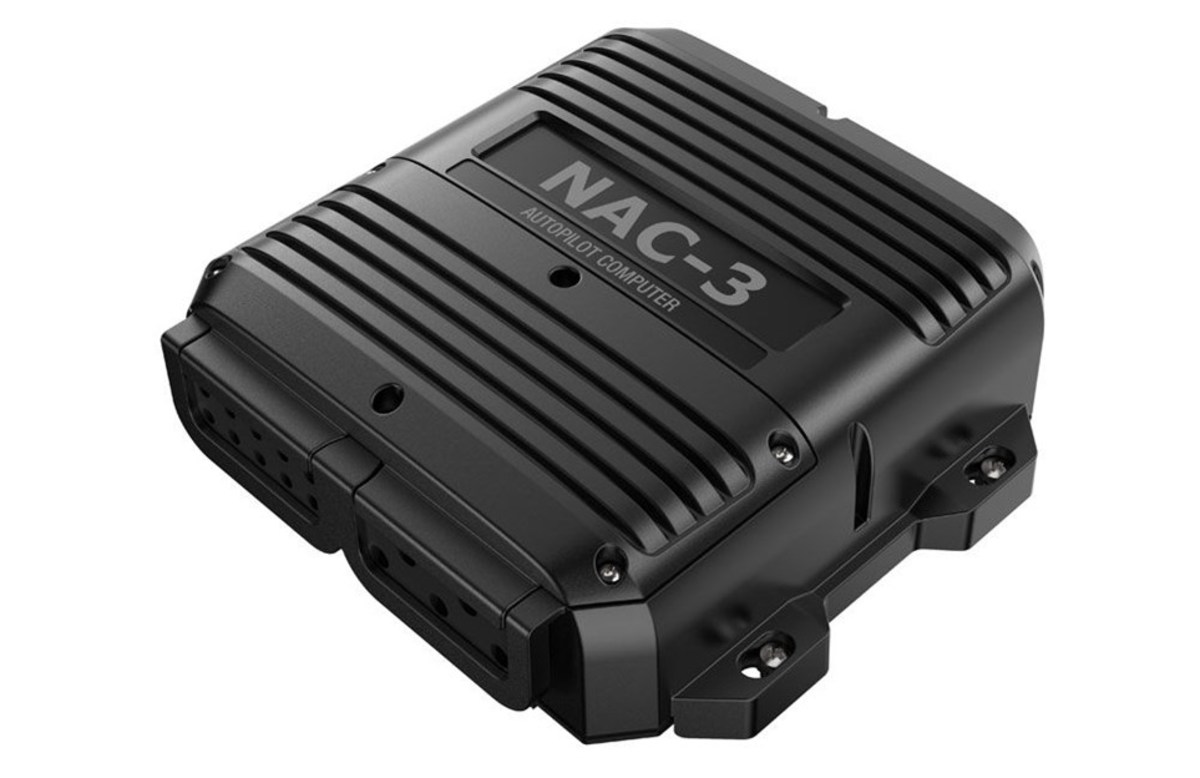

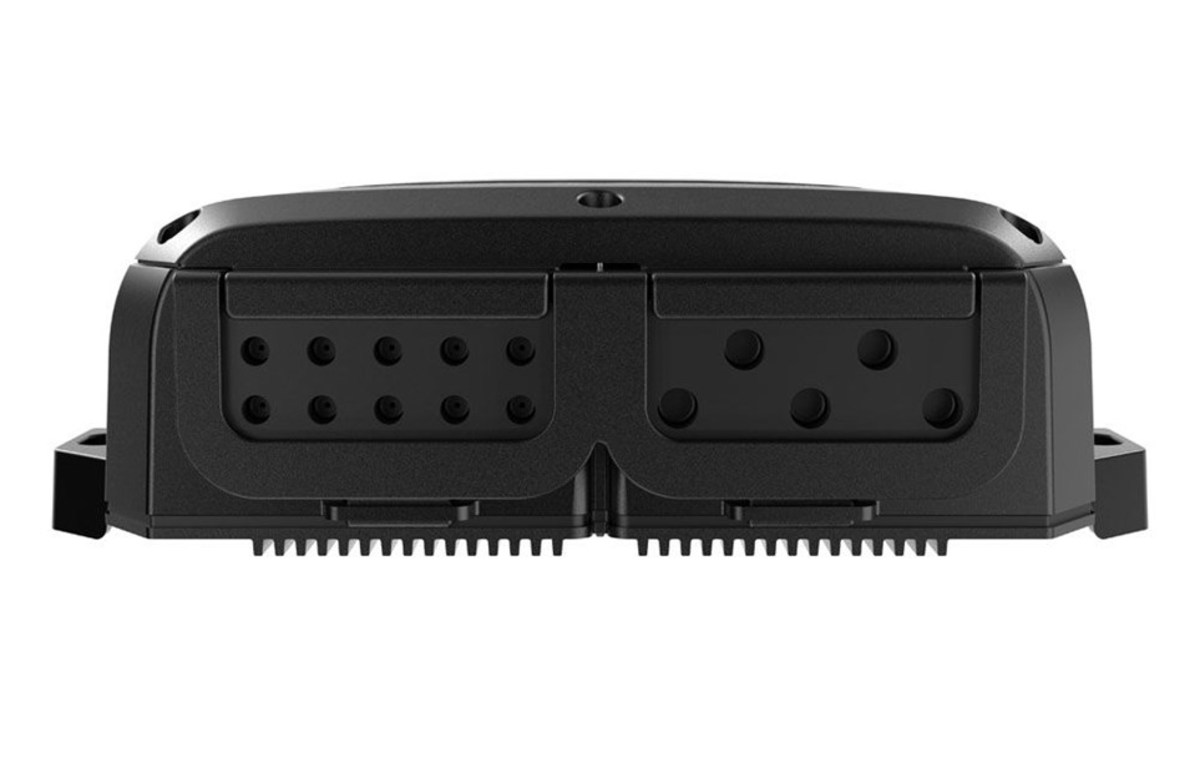

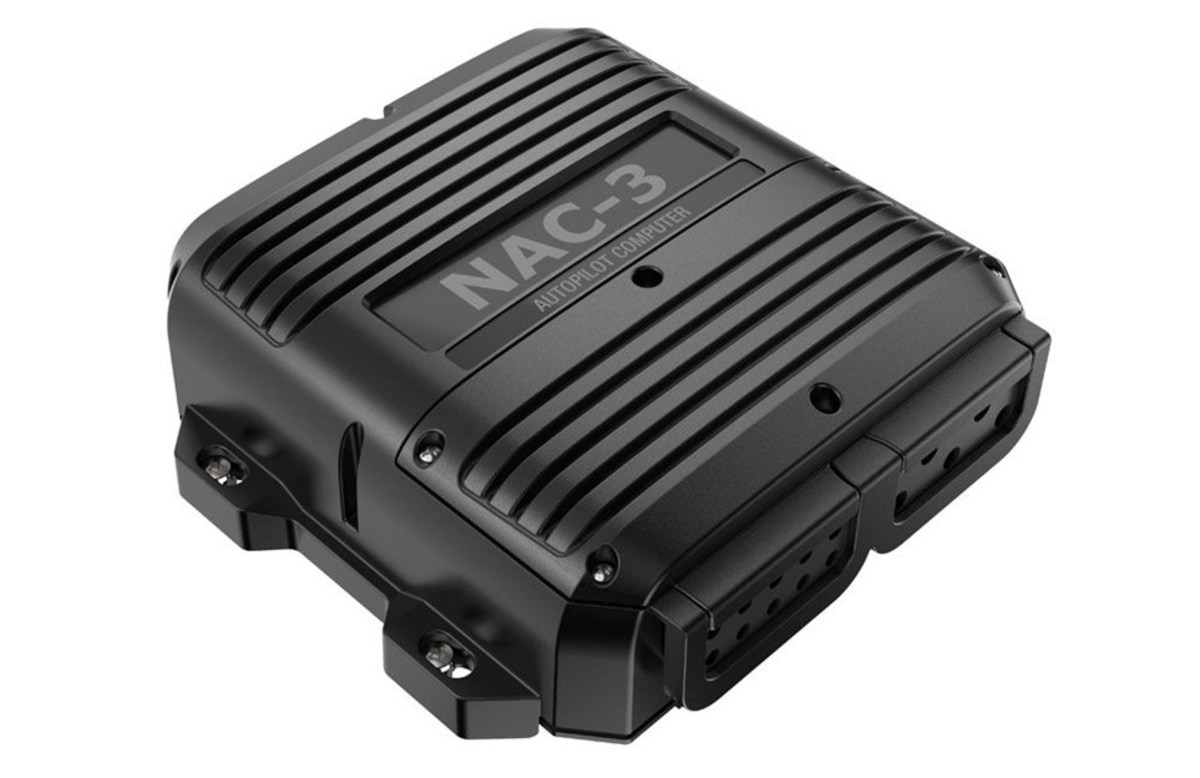

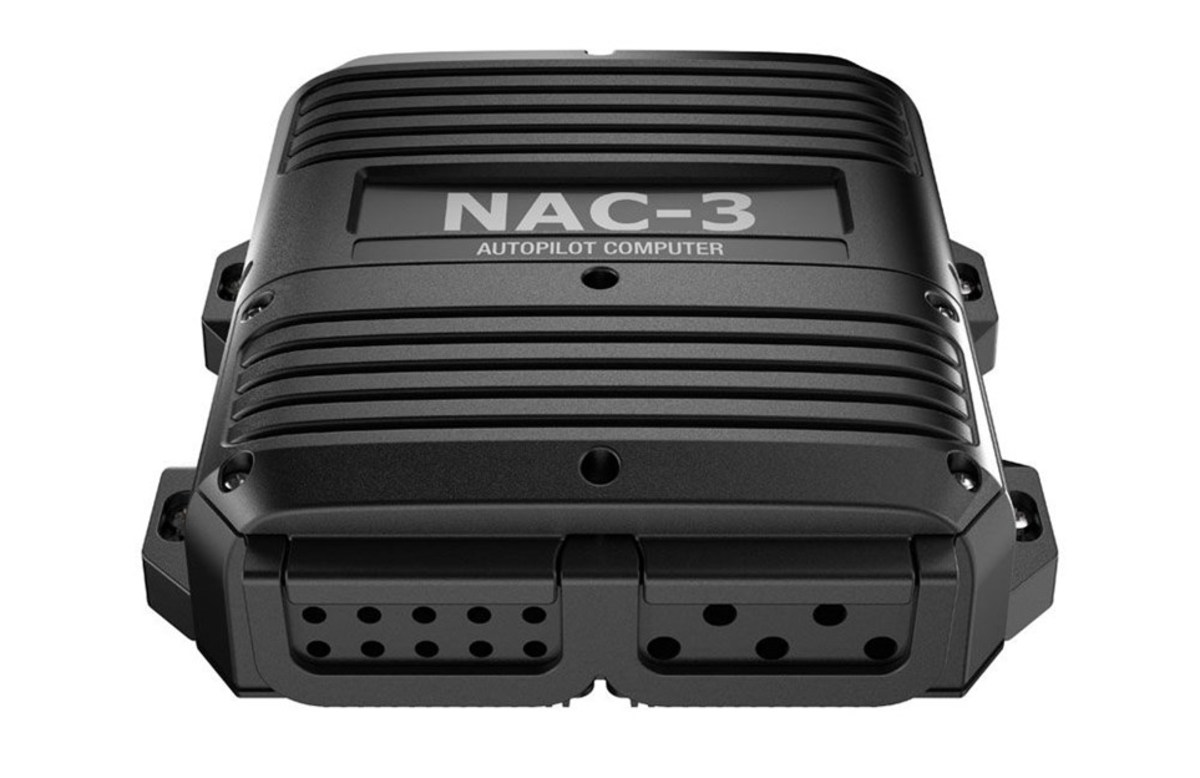

- Includes NAC-3 Autopilot Computer
- Includes Precision-9 solid-state compass
- Designed for outboard and sterndrive boats over 10m (35ft)
- Virtual Rudder Feedback (VRF) eliminates the need for a mechanical rudder feedback unit on suitable installations
- Compatible with high-current drive pumps
- Compatible with mechanical drives
- Compatible with hydraulic linear drives
- Compatible with solenoid valves
- NMEA 2000® networking
- NMEA 0183® input
- Automatic tuning simplifies setup
- Automatic compass calibration
- Multiple autopilot control options
- Suitable for integration with compatible Simrad multifunction displays
Drive Compatibility
The NAC-3 is designed to work with a range of higher-current steering drive systems, including:
- Simrad RPU160 drive pump
- Simrad RPU300 drive pump
- Simrad DD15 mechanical drive
- Simrad HLD2000 series hydraulic linear drives
- Compatible solenoid valve steering systems
The appropriate drive unit must be selected separately to suit your boat’s steering system.
Control Options
The autopilot system can be controlled using compatible Simrad equipment such as:
- AP44 Autopilot Controller
- IS42 Display with OP12 Keypad
- Compatible networked Simrad multifunction display
- WR10 Wireless Remote when added to a compatible system
A drive unit and autopilot controller/display are not included as part of the core pack and must be selected separately to suit the installation.
Specifications
- Brand: Simrad
- Product: NAC-3 VRF Core Pack
- SKU / Part Number: 000-13338-001
- Autopilot Computer: NAC-3
- Heading Sensor: Precision-9 Solid-State Compass
- Recommended Vessel Type: Outboard & Sterndrive (I/O)
- Recommended Vessel Length: Over 10m / 35ft
- Rudder Feedback System: Virtual Rudder Feedback (VRF)
- Networking: NMEA 2000®
- Additional Interface: NMEA 0183® Input
- Auto-Tuning: Yes
- Automatic Compass Calibration: Yes
- Drive Unit Included: No
- Dedicated Autopilot Controller Included: No
What's in the Core Pack
The core package includes:
- Simrad NAC-3 Autopilot Computer
- Simrad Precision-9 Solid-State Compass
- Cabling and connectors required to build an NMEA 2000® network backbone or connect the autopilot to an existing NMEA 2000® network
A suitable drive unit and autopilot controller or compatible multifunction display are required to complete the autopilot system.
Why You'll Love It
- Designed for larger outboard and sterndrive boats
- VRF technology can simplify installation by eliminating mechanical rudder feedback
- Supports powerful high-current drive systems
- Precision-9 compass provides the heading data required by the autopilot system
- Flexible control through dedicated controllers or compatible Simrad MFDs
- NMEA 2000 connectivity makes integration into compatible onboard electronics networks straightforward
