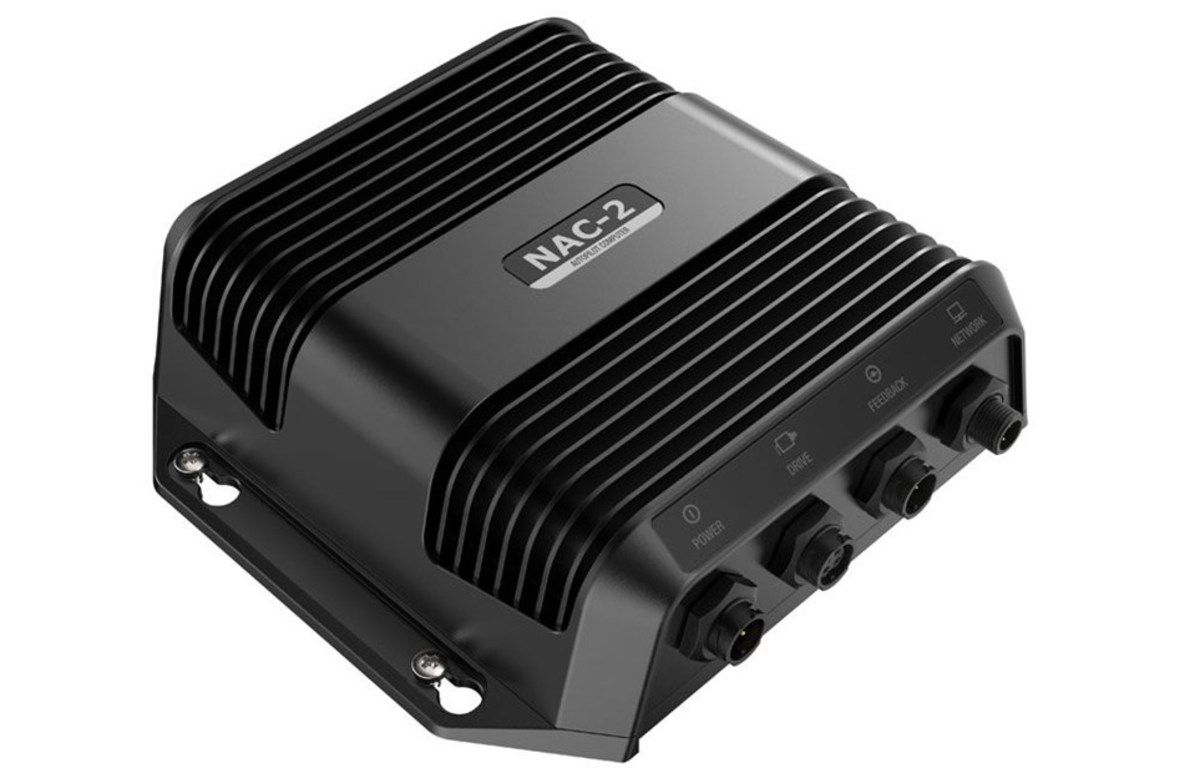

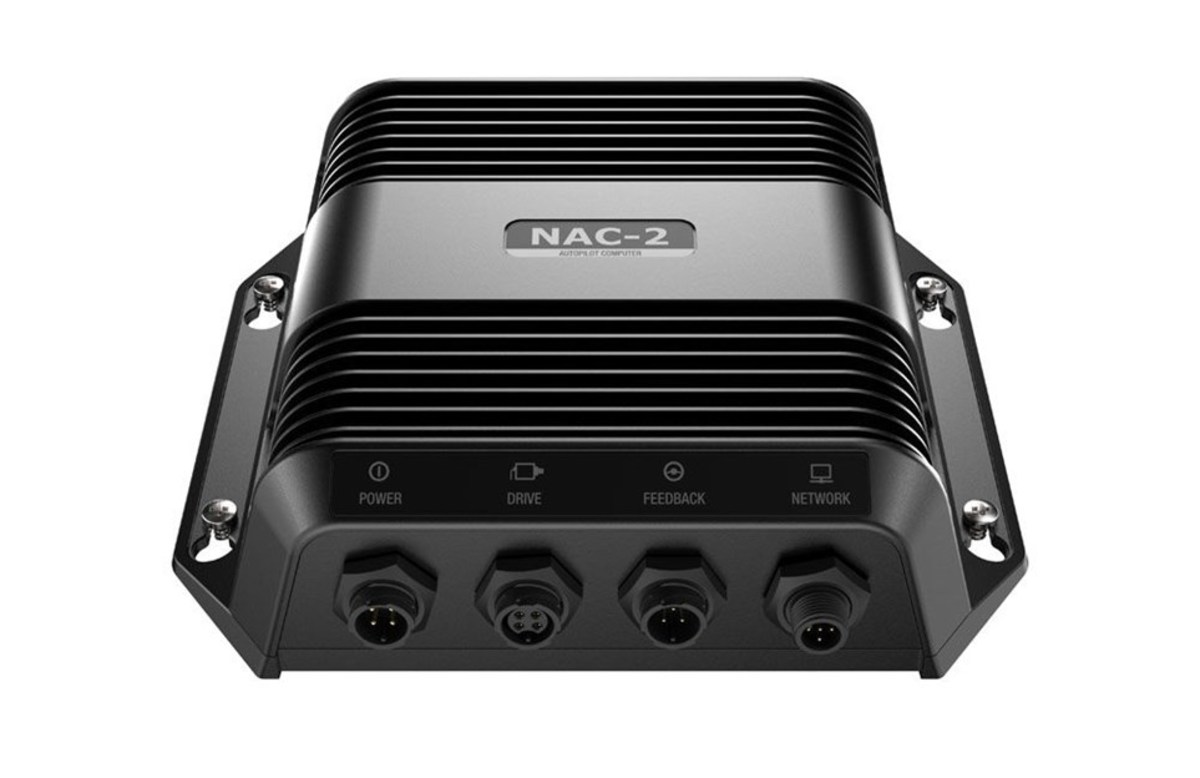

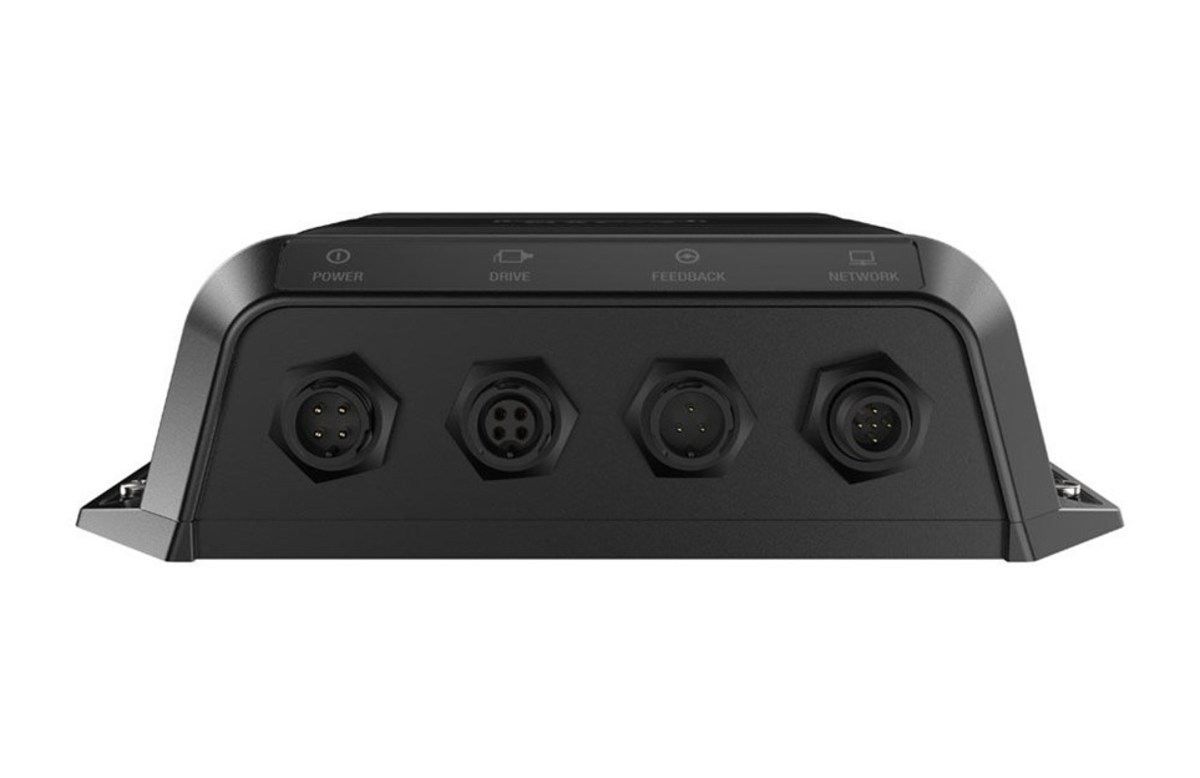

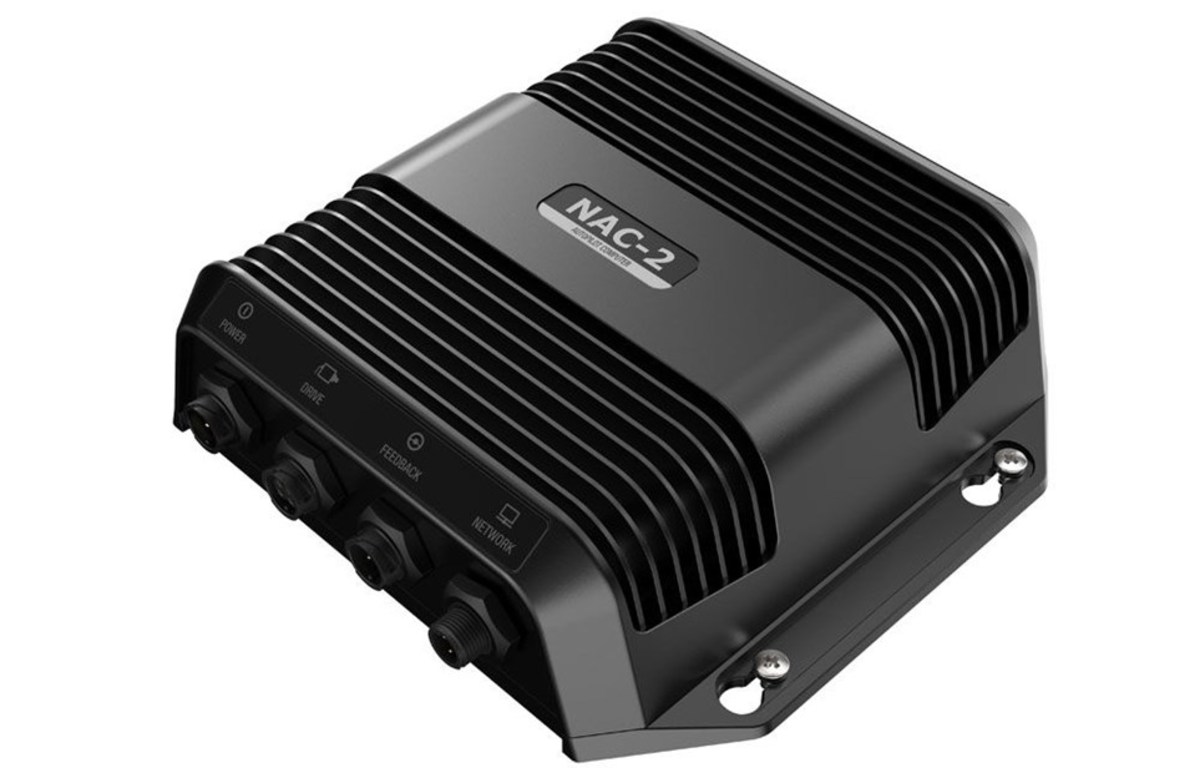

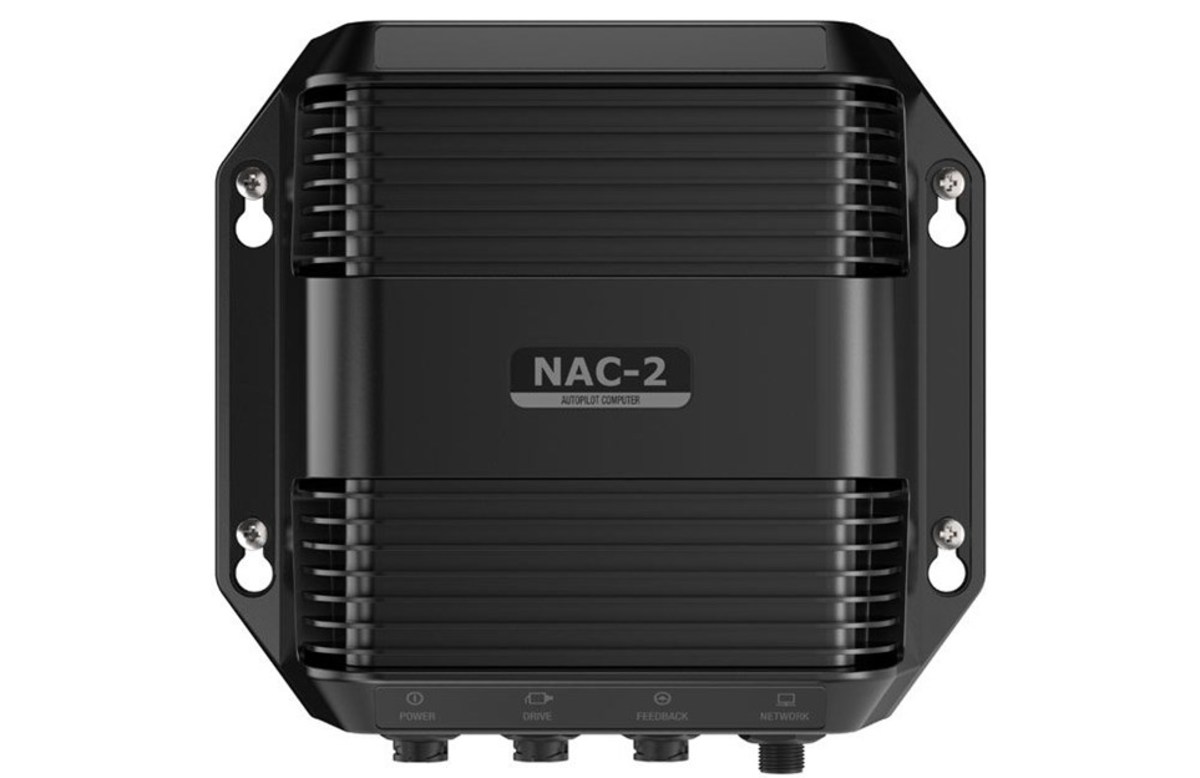

Simrad NAC-2 Autopilot Computer – 000-13249-001

The Simrad NAC-2 Autopilot Computer is the core of a compatible Simrad autopilot system, containing the electronics required to operate the steering drive and interface with key autopilot components.

Designed for boats up to 10 metres (35 feet), the NAC-2 is suitable for low-current hydraulic steering pumps, mechanical drive units, hydraulic linear drives and solenoid valves. It combines reliable Continuum Steering technology with NMEA 2000® connectivity and flexible rudder feedback options for straightforward integration into a compatible marine electronics system.

For suitable outboard and sterndrive planing boats, Simrad’s Virtual Rudder Feedback (VRF) technology can eliminate the need for a separate physical rudder feedback sensor, helping simplify installation.

Features

Genuine Simrad autopilot computer
Recommended for boats up to 10m (35ft)
Continuum Steering technology
Designed for low-current steering drive systems
Compatible with low-current hydraulic drive pumps
Supports compatible mechanical and hydraulic linear drives
Supports compatible solenoid valve steering systems
Virtual Rudder Feedback (VRF) support for suitable outboard and sterndrive boats
Supports Simrad RF25 rudder feedback units
Supports compatible resistive rudder feedback sensors
NMEA 2000® connectivity
Plug-and-play connectors help simplify installation
Integrates with compatible heading sensors, autopilot controllers and multifunction displays

Drive Compatibility

The NAC-2 is designed for compatible lower-current steering drive systems. Simrad specifically lists compatibility with examples including:

Simrad RPU80 hydraulic drive pump
Simrad SD10 mechanical drive
Simrad HLD350 hydraulic linear drive
Compatible solenoid valve steering systems

The correct drive unit must be selected to suit the vessel’s steering system and installation requirements.

Virtual Rudder Feedback

Simrad Virtual Rudder Feedback (VRF) technology allows the NAC-2 to operate without a separate rudder feedback unit on suitable outboard and sterndrive (inboard/outboard) boats with planing hulls.

For vessels requiring physical rudder feedback, the NAC-2 also supports:

Simrad RF25 feedback units connected via SimNet or NMEA 2000®
Compatible resistive rudder feedback sensors

Specifications

Brand: Simrad
Model: NAC-2
Product Type: Autopilot Computer
SKU / Part Number: 000-13249-001
Recommended Boat Length: Up to 10m / 35ft
Steering Drive Type: Low-Current
Steering Compatibility: Hydraulic pumps, mechanical drives, hydraulic linear drives and solenoid valves
Steering Technology: Continuum Steering
Virtual Rudder Feedback (VRF): Yes – on suitable installations
RF25 Rudder Feedback Support: Yes
Resistive Rudder Feedback Support: Yes
Networking: NMEA 2000®
Connections: Plug-and-play connectors

What's in the Box

According to Simrad, the NAC-2 Autopilot Computer package includes:

NAC-2 Autopilot Computer
N2K-T-RD Network T-Connector
N2KEXT-2RD 2ft Network Extension Cable
NAC-1/NAC-2 2m Drive Cable
NAC-2 Rudder Feedback Cable
NAC-1/NAC-2 2m Power Cable

Note: This is the standalone NAC-2 Autopilot Computer package, not a complete autopilot system. Other components such as the appropriate steering drive, heading sensor and controller/display may be required depending on the installation.

Why You'll Love It

Central control computer for building a compatible Simrad autopilot system
Designed specifically for boats up to 10m (35ft)
Supports a range of low-current steering drive configurations
VRF can simplify suitable outboard and sterndrive installations
NMEA 2000 connectivity provides straightforward system integration
Flexible support for both virtual and physical rudder feedback configurations
