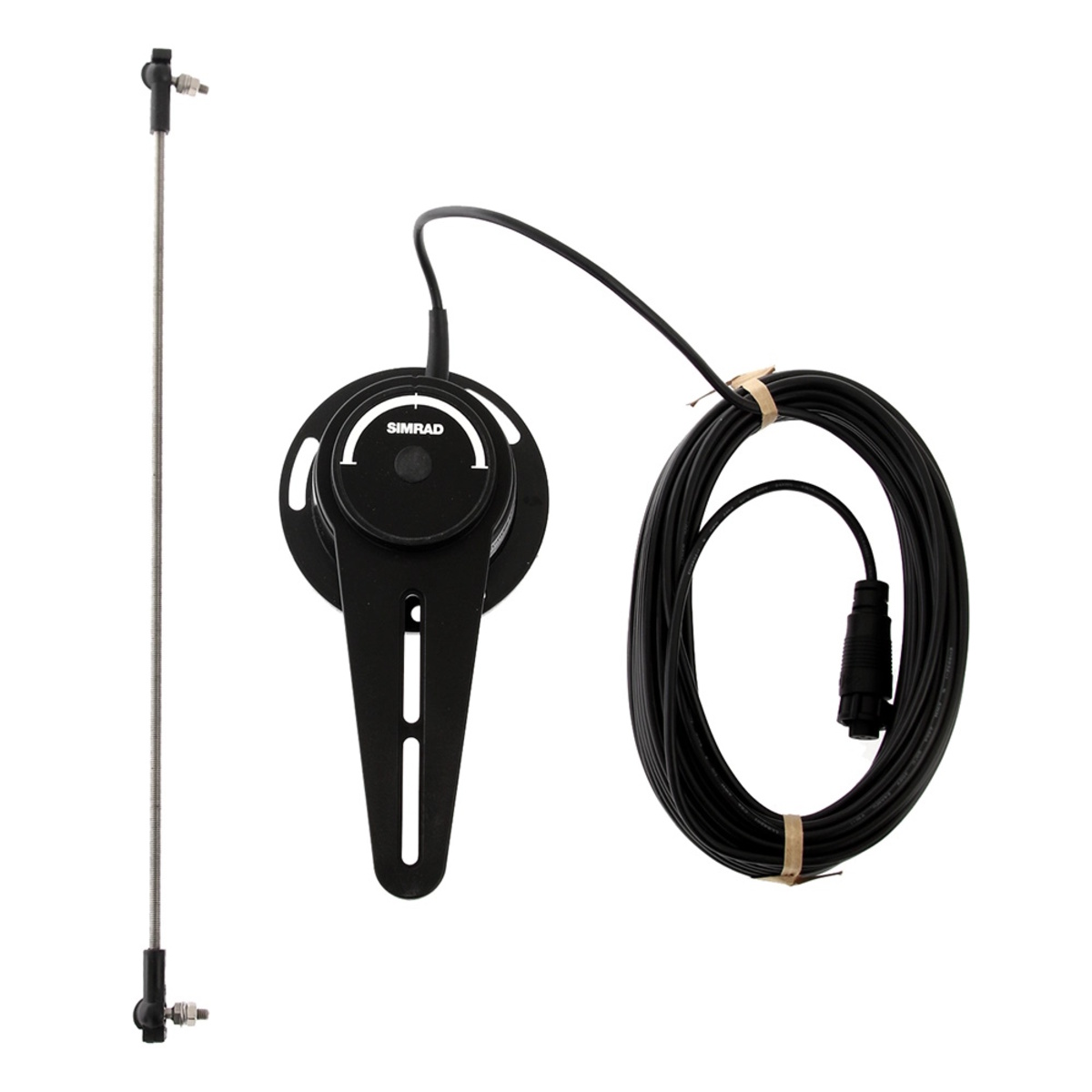

RF40 Rudder Feedback Unit for Autopilot Systems – 3-Pin, 15m – 000-14439-001
The RF40 Rudder Feedback Unit is a medium-duty rudder position sensor designed to provide accurate rudder angle information to compatible marine autopilot systems.
Connected mechanically to the vessel’s rudder system, the RF40 continuously measures the actual rudder position and sends this information to the autopilot computer, helping the system deliver precise rudder control for smooth and accurate steering.
The RF40 features a variable 0–5V output and comes with a generous 15m (49ft) cable and 3-pin plug-and-play connector for direct connection to compatible NAC-1 and NAC-2 autopilot computers. The connector can also be removed for use in other suitable applications.
Features
- Medium-duty rudder feedback unit
- Measures and reports actual rudder angle to the autopilot computer
- Helps provide precise rudder control and accurate autopilot steering
- Direct plug-and-play connection to compatible NAC-1 and NAC-2 autopilot computers
- Variable voltage output
- ±120° rudder angle measurement range
- Supplied with 15m (49ft) cable
- 3-pin plug-and-play connector
- Removable connector for alternative compatible installations
- Can be mounted horizontally, vertically or upside down
- Stainless steel transmitter link with two ball joints
- Suitable for compatible Simrad, Lowrance and B&G autopilot systems
Specifications
- Model: RF40
- Part Number / SKU: 000-14439-001
- Product Type: Rudder Feedback / Rudder Reference Unit
- Duty Rating: Medium Duty
- Rudder Angle Range: ±120°
- Output Signal: 0–5V DC
- Resistance: 10kO
- Supply Voltage: 5V DC
- Power Consumption: 2.5mW
- Accuracy: ±0.25° within ±5°, otherwise ±0.5°
- Repeatability: ±0.1°
- Cable Length: 15m / 49ft
- Connector: 3-Pin Plug-and-Play
- Weight: 0.5kg / 1.1lb
- Material: Arnite T06 200 PBT

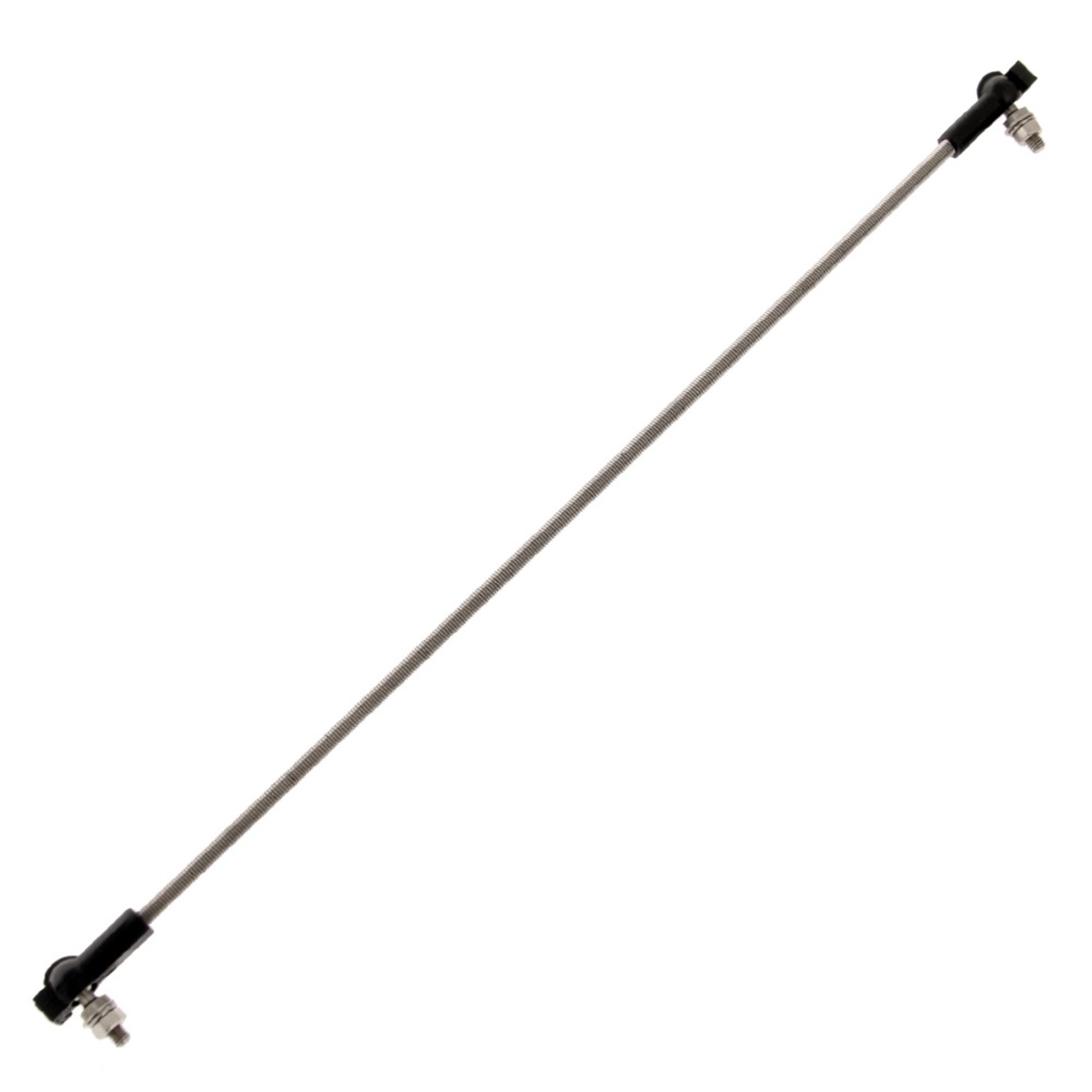

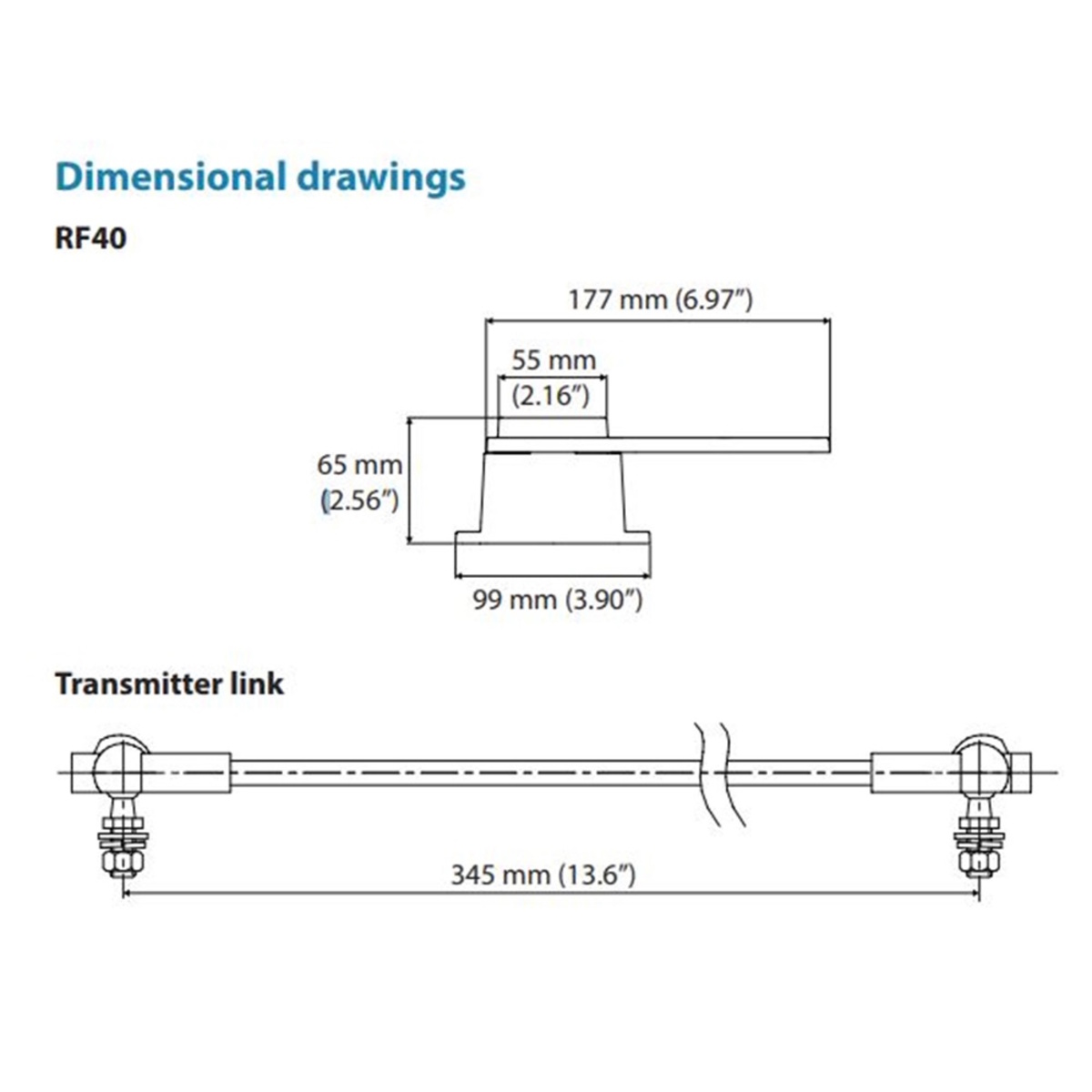

- Transmitter Link: Stainless steel, 345mm (13.6") with 2 ball joints
- Mounting: Horizontal, vertical or upside down
- Compass Safe Distance: 1.0m / 3.1ft
- Waterproof Rating: IP56
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +70°C
Autopilot Compatibility
The RF40 is designed for direct plug-and-play connection with:
- NAC-1 Autopilot Computer
- NAC-2 Autopilot Computer
It can be used with compatible Simrad, Lowrance and B&G autopilot systems using the appropriate autopilot computer and installation configuration.
The RF40’s 15m direct cable can be particularly useful where extending an NMEA 2000 network to the rudder area would be impractical. Unlike an NMEA 2000-connected rudder sensor such as an RF25, the RF40 connects directly to a compatible autopilot computer using its variable-voltage output.
Why You’ll Love It
- Provides accurate, real-time rudder position information to the autopilot
- Wide ±120° measurement range
- Long 15m cable provides flexibility for installation
- Plug-and-play connection with compatible NAC-1 and NAC-2 systems
- Flexible mounting orientation
- High measurement accuracy and repeatability
