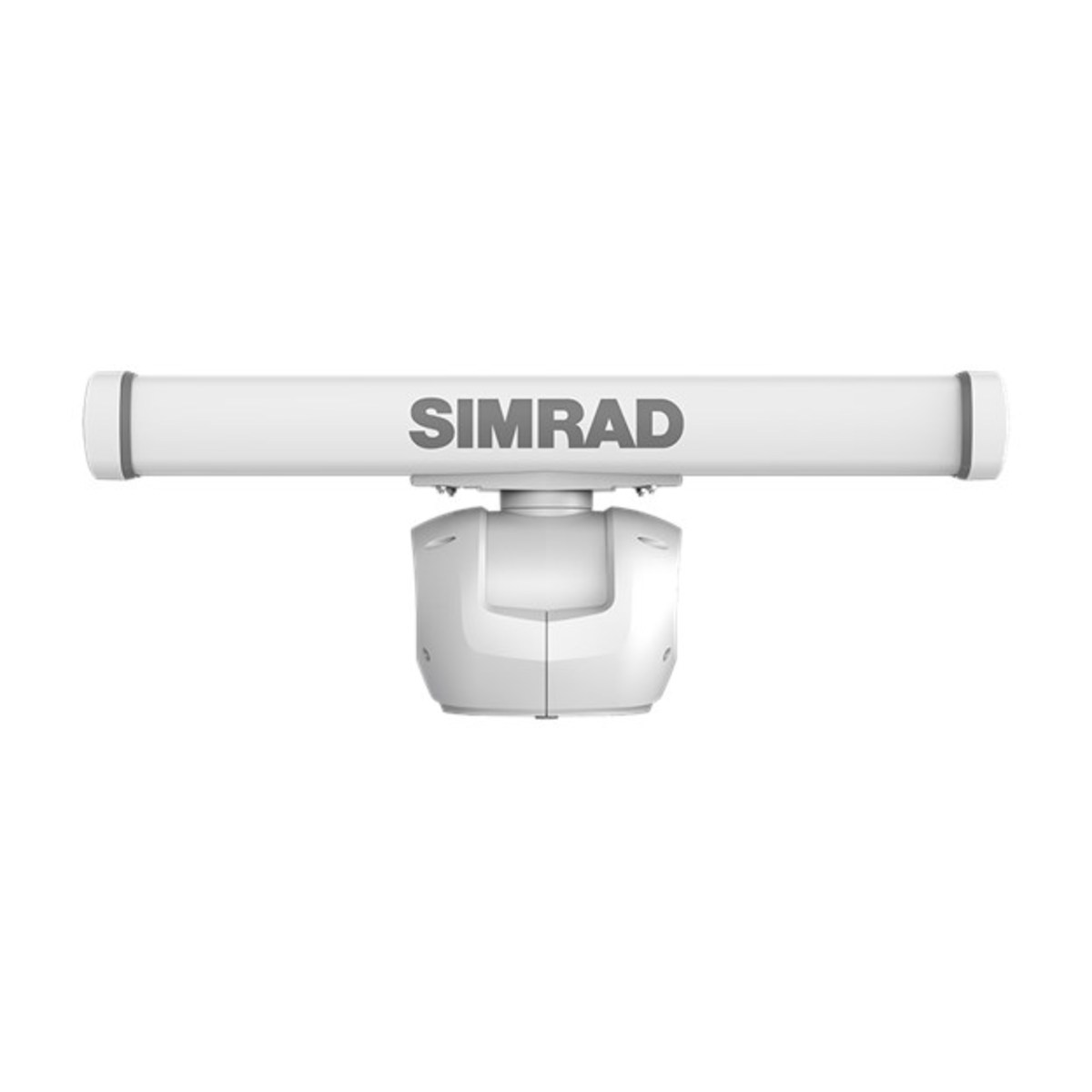

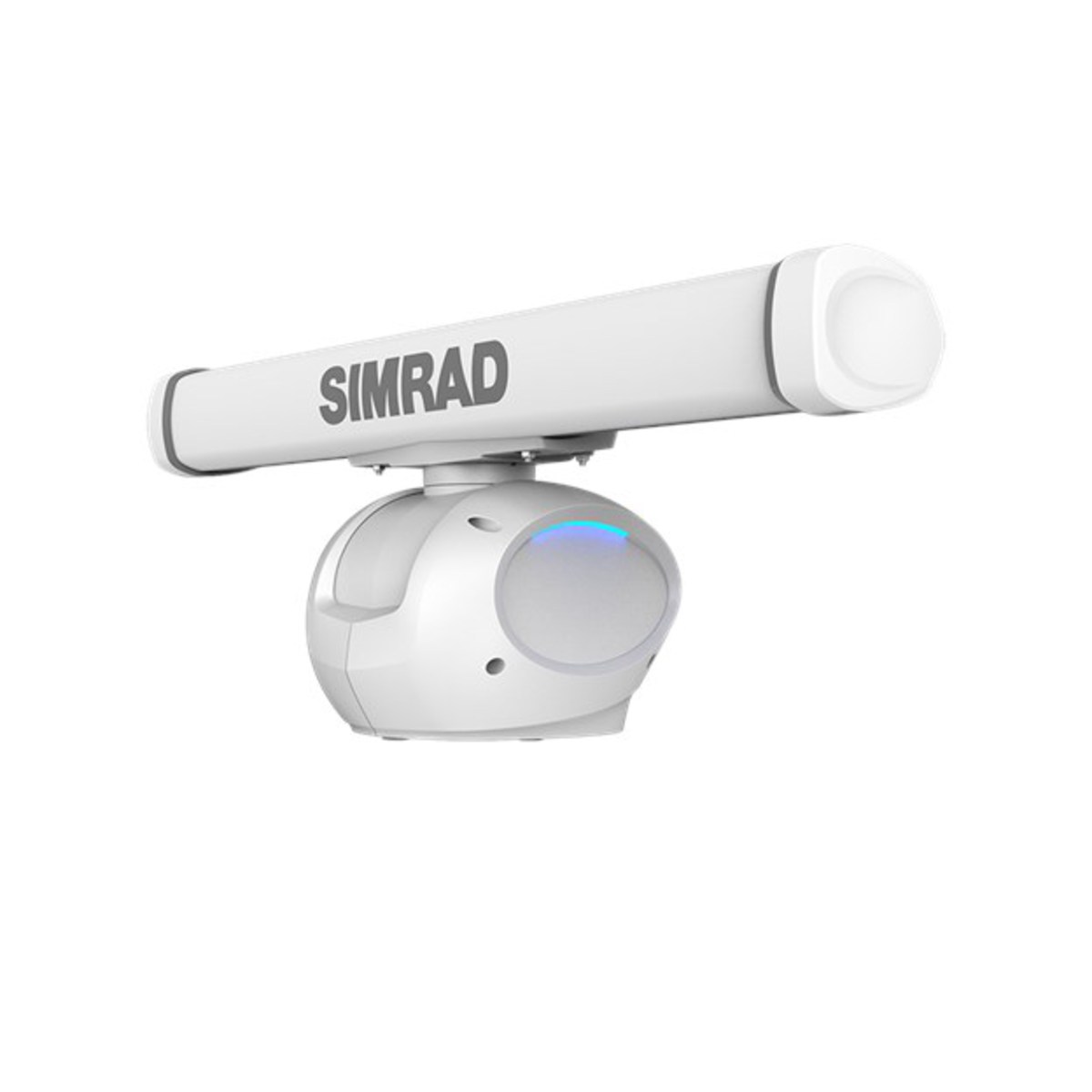

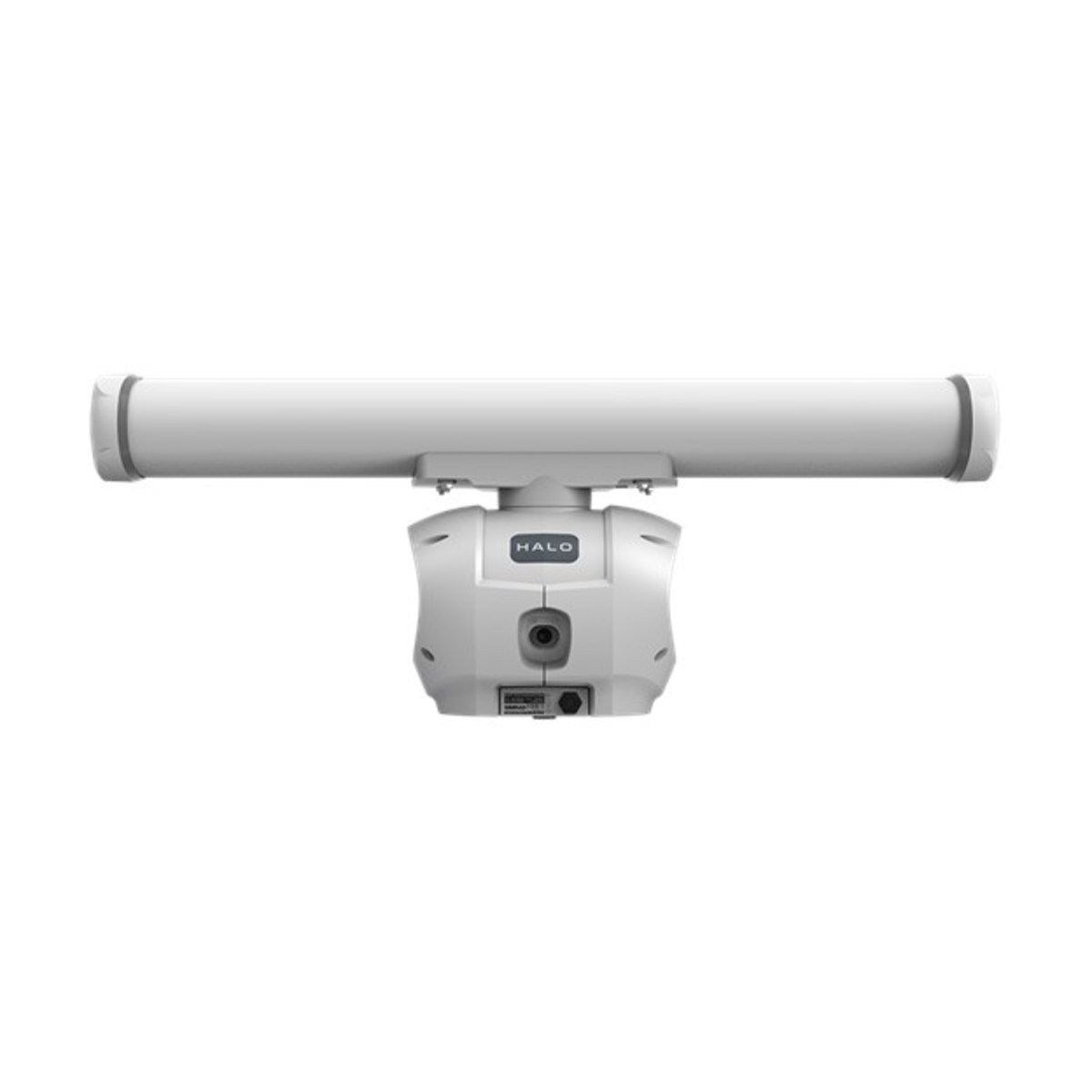

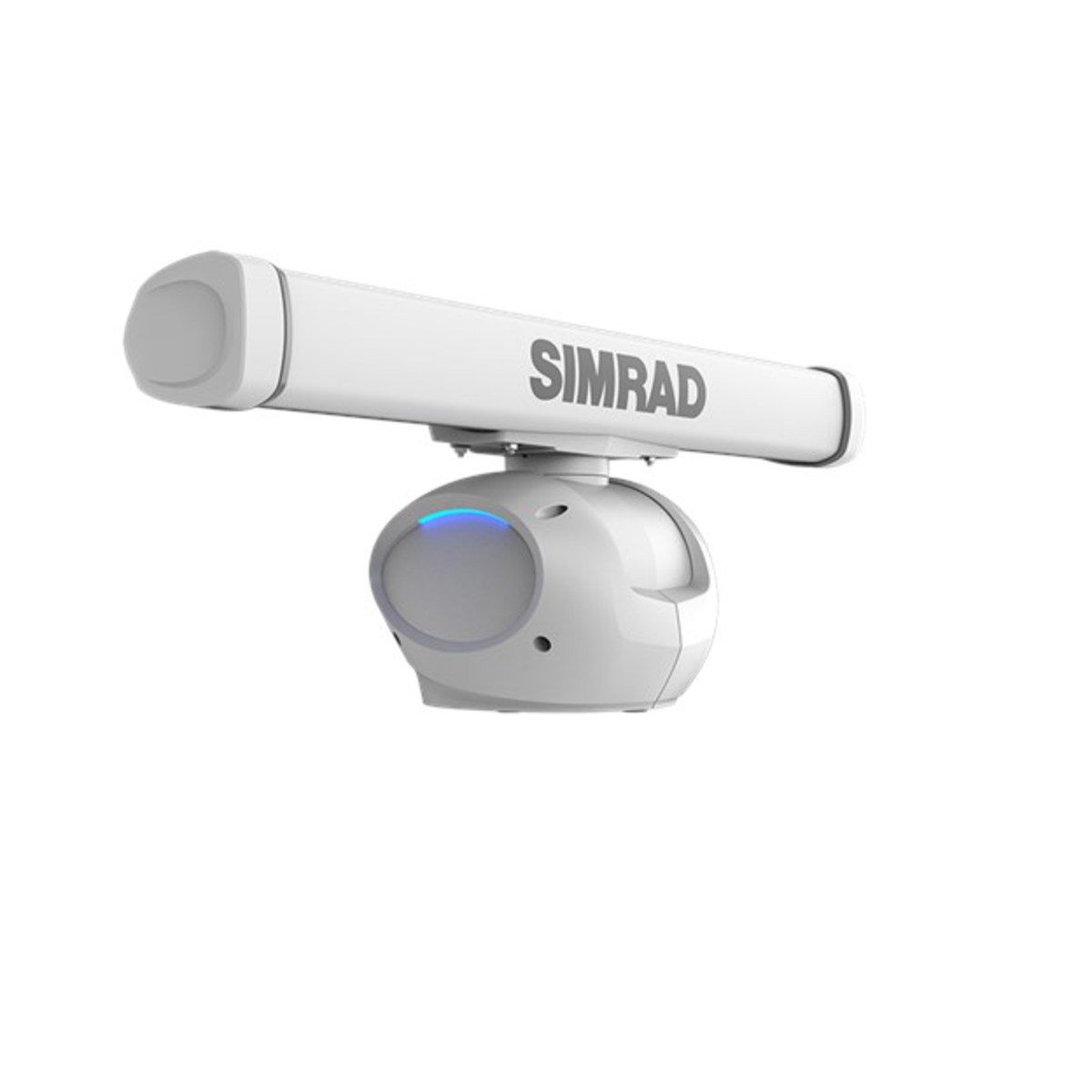

Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 Open Array radar. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.
Features:
- 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation
- Easy operation with Harbour, Offshore, Weather, and Bird modes
- Track up to 50 targets with ZoneTrack
- VelocityTrack Doppler technology for collision avoidance
- Dangerous Target Alerts for radar and AIS targets
- Ready instantly from standby, and in 16-25 seconds from power-on
- Available in 3-, 4- and 6-foot arrays
Specifications:
Physical:
- Compass Safe Distance:
- Standard: 1.0 m (3.3 ft)
- Steering: 0.5 m (1.6 ft)
- Dimensions (H × W × D): 324 × 429 × 339 mm
- Weight: 29.2 kg (64.4 lb)
Electrical:
- Supply Voltage: 12V or 24V DC via RI-50 Interface Module - 12V Systems: 10.8–15V DC - 24V Systems: 20–31.2V DC
- Pedestal Input: 50V DC nominal (generated by RI-50)
- Typical Power Consumption: 45–60W
- Maximum Power Consumption: 235W (peak @ 12V)
- Recommended Fuse: 25A (12V systems) / 15A (24V systems)
Radar Performance:
- Radar Technology: Pulse Compression
- Output Power: 50W
- Maximum Range: 72 nautical miles
- Minimum Range: 75 m (300 ft)
- Beam Width:
- Horizontal: 2.4° ±10%
- Beam Sharpening Mode: 1.7°
- Vertical: 25° ±10%
- Rotation Speed: 16–48 rpm (depending on operating mode)
- Maximum Wind Speed: 80 knots
- Radar Modes:
- Head Up
- North Up
- SART/RACON Support: Yes
Technology:
- Dual Range operation
- Beam Sharpening
- VelocityTrack™ Doppler technology
- AutoTrack™ target tracking
- ZoneTrack™ (tracks up to 50 targets)
- Dangerous Target Alerts
- Harbour Mode
- Offshore Mode
- Weather Mode
- Bird Mode
- Instant standby wake-up
- Ready in 16–25 seconds from power on
Connectivity Ethernet:
- Via RI-50
- 1 × 100 Mbit RJ45 adapter (5-pin yellow supplied)
Connectivity NMEA 2000:
- Not directly supported
- Heading and navigation data transmitted over Ethernet
Environmental:
- Waterproof Rating: IPX6
- Operating Temperature: -25°C to +55°C
- Shock & Vibration: IEC60945 compliant
Compatibility with Simrad:
- NSS
- NSX
- NSO
- GO Series multifunction displays
Compliance:
- FCC / IC / RED Certified
- FCC ID: RAYHALO2000
- IC ID: 978B-HALO2000
Warranty:
- 2-Year Manufacturer Warranty
