Simrad NSX® 3009 9" GPS Fishfinder / Chartplotter – No Transducer

The Simrad NSX® 3009 is a versatile 9-inch multifunction display combining chartplotting, built-in GPS and sonar capability with an intuitive touchscreen interface. Designed for a clean, modern boating experience, NSX provides seamless integration with compatible sonar, radar, autopilot and onboard systems, making it an excellent centrepiece for a fully connected marine electronics setup.

Its bright 9-inch SolarMAX™ IPS touchscreen delivers excellent visibility from wide viewing angles, including in direct sunlight and while wearing polarised sunglasses. With built-in 10Hz GPS, extensive networking and a 9-pin XSONIC sonar port, the NSX 3009 gives you the flexibility to build a navigation and fishfinding system around your boat and fishing requirements.

Please note: this package does not include a transducer. A compatible transducer is required to use the unit’s fishfinder/sonar functions.

Features

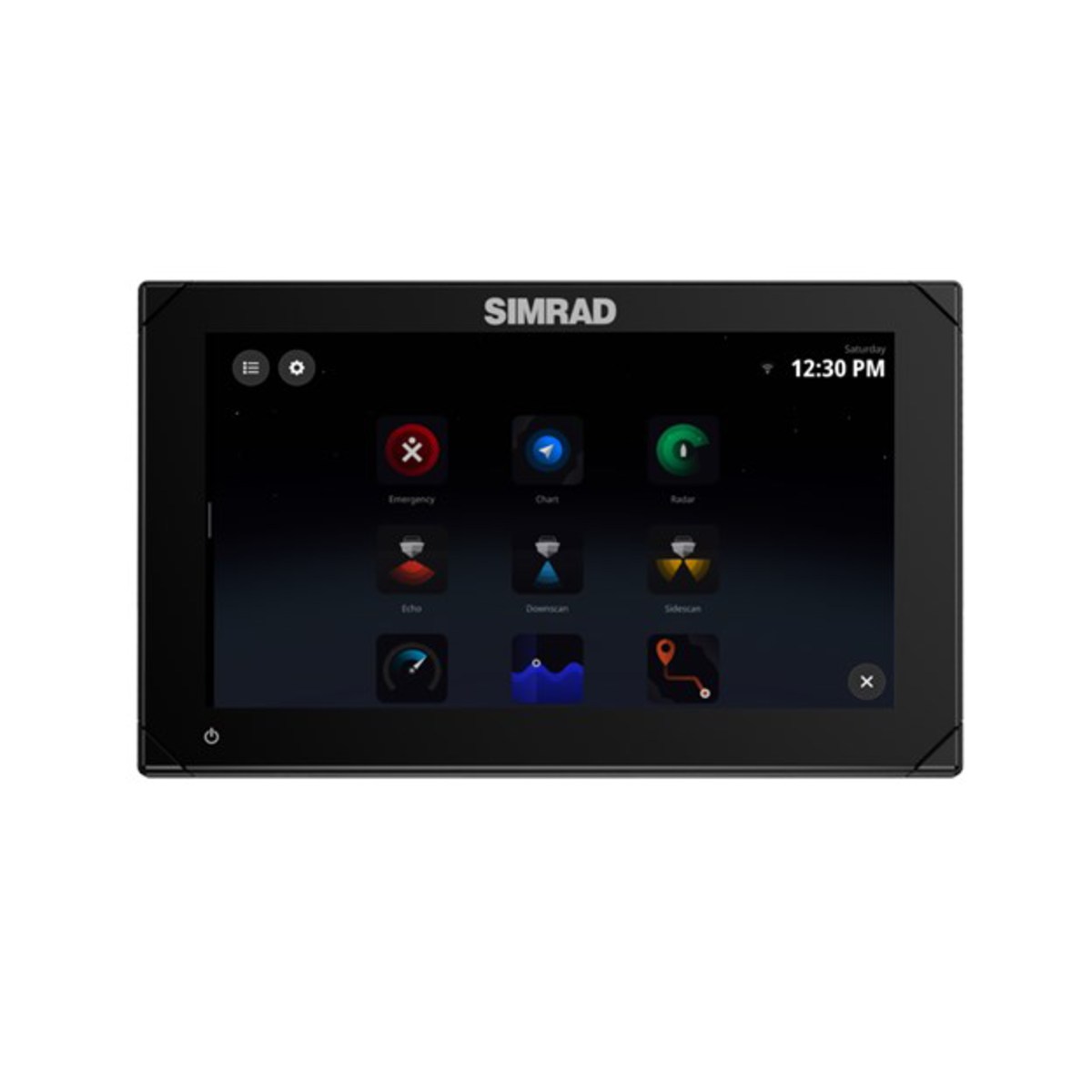

• 9-inch SolarMAX™ IPS HD multi-touch display
• Bright 1200+ nit screen for excellent daylight visibility
• Built-in 10Hz GPS
• Built-in sonar with 9-pin XSONIC transducer connection
• Supports single-channel CHIRP and 50/200kHz sonar
• Compatible with Active Imaging™ and HDI transducers
• Supports CHIRP, SideScan and DownScan Imaging™ with compatible transducers
• Sonar sharing between compatible NSX displays
• Compatible with C-MAP® DISCOVER™ X and REVEAL™ X charts
• Global basemap included – local navigational chart required

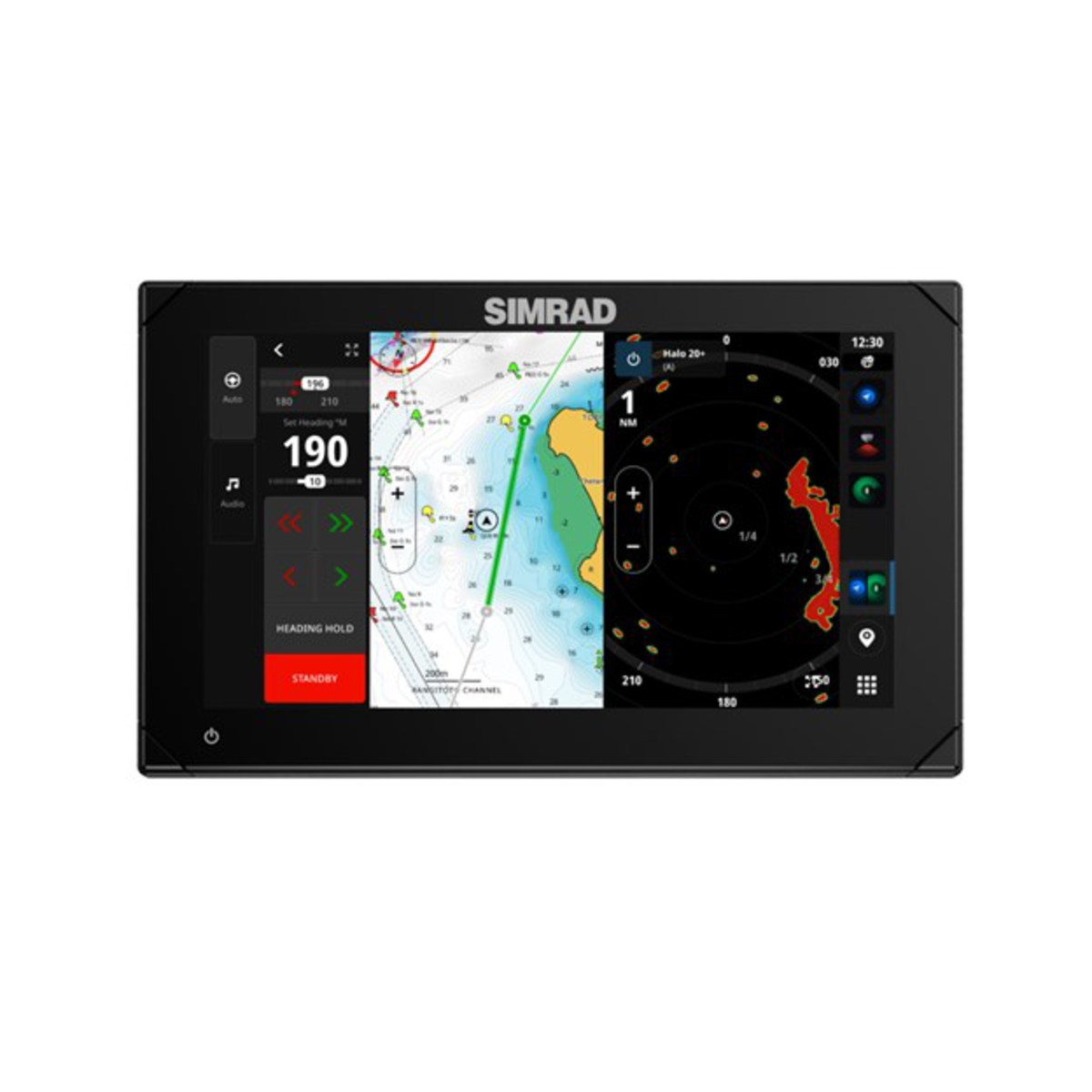

• Full support for compatible Simrad HALO® radar
• Easy Simrad autopilot integration
• Mercury® SmartCraft® Connect and VesselView® integration
• CZone® / DDS digital switching support
• IP camera support
• Wi-Fi and Bluetooth connectivity
• Ethernet and NMEA 2000® networking
• Simrad® App integration
• IPX6 and IPX7 waterproof rating
• 2-year warranty

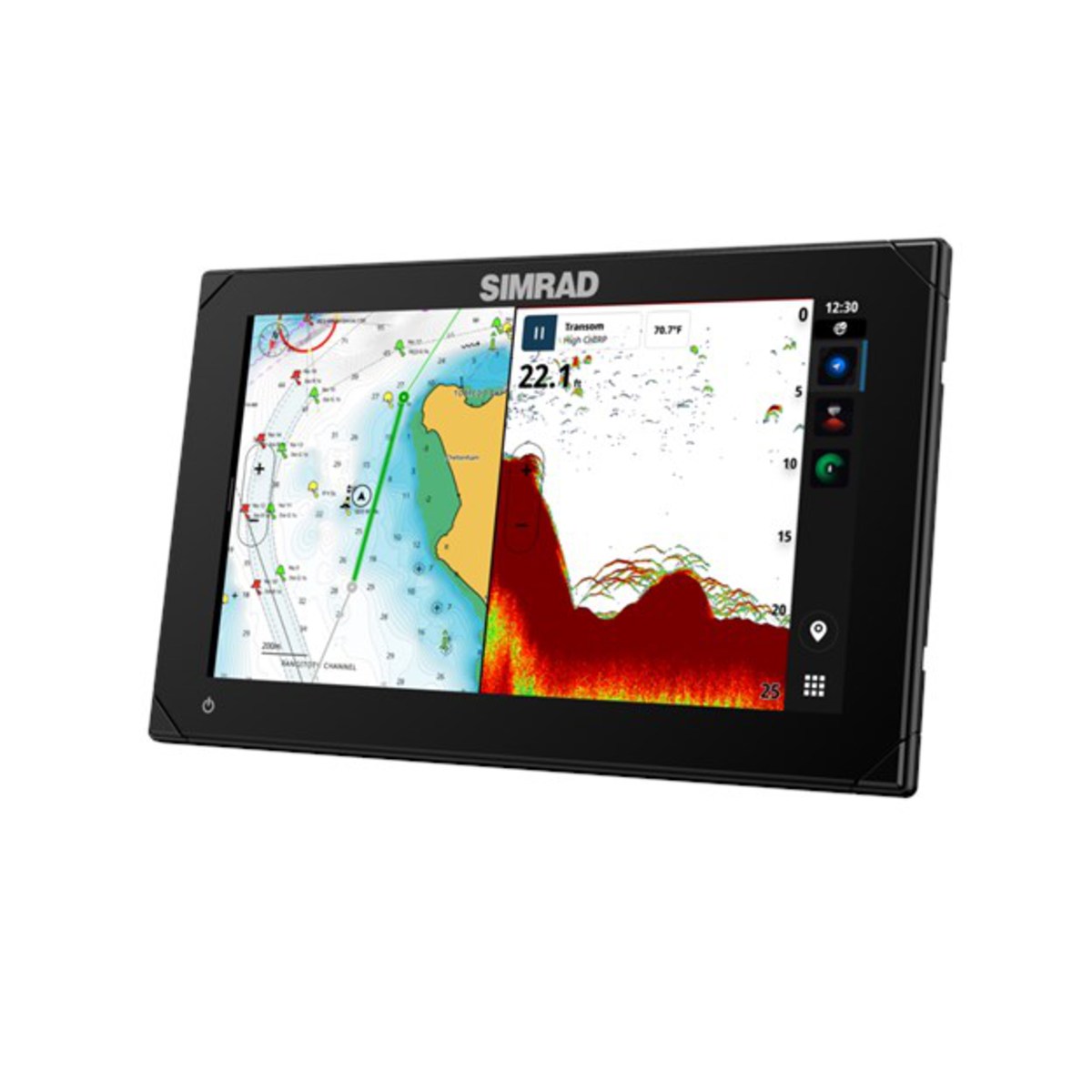

Sonar & Fishfinder Capability

The NSX 3009 features a built-in 9-pin XSONIC sonar port, so you can connect a compatible transducer directly to the display without requiring a separate sonar module for supported configurations.

Sonar compatibility includes:

• Single-channel CHIRP
• 50/200kHz traditional sonar
• HDI
• Active Imaging™
• SideScan with compatible transducer
• DownScan Imaging™ with compatible transducer

This 000-15219-001 package is supplied without a transducer.

Specifications

• Brand: Simrad
• Model: NSX® 3009
• SKU / Part Number: 000-15219-001
• Product Type: GPS Fishfinder / Chartplotter / Multifunction Display
• Transducer Included: No
• Display Size: 9 inches
• Display Resolution: 1280 × 720 pixels
• Screen Brightness: >1200 nits
• Viewing Angles: 85° top, bottom, left and right
• Interface: Multi-Touch Screen
• GPS: Internal 10Hz
• GPS Receiver: 32 Channels
• Position Accuracy: 3m

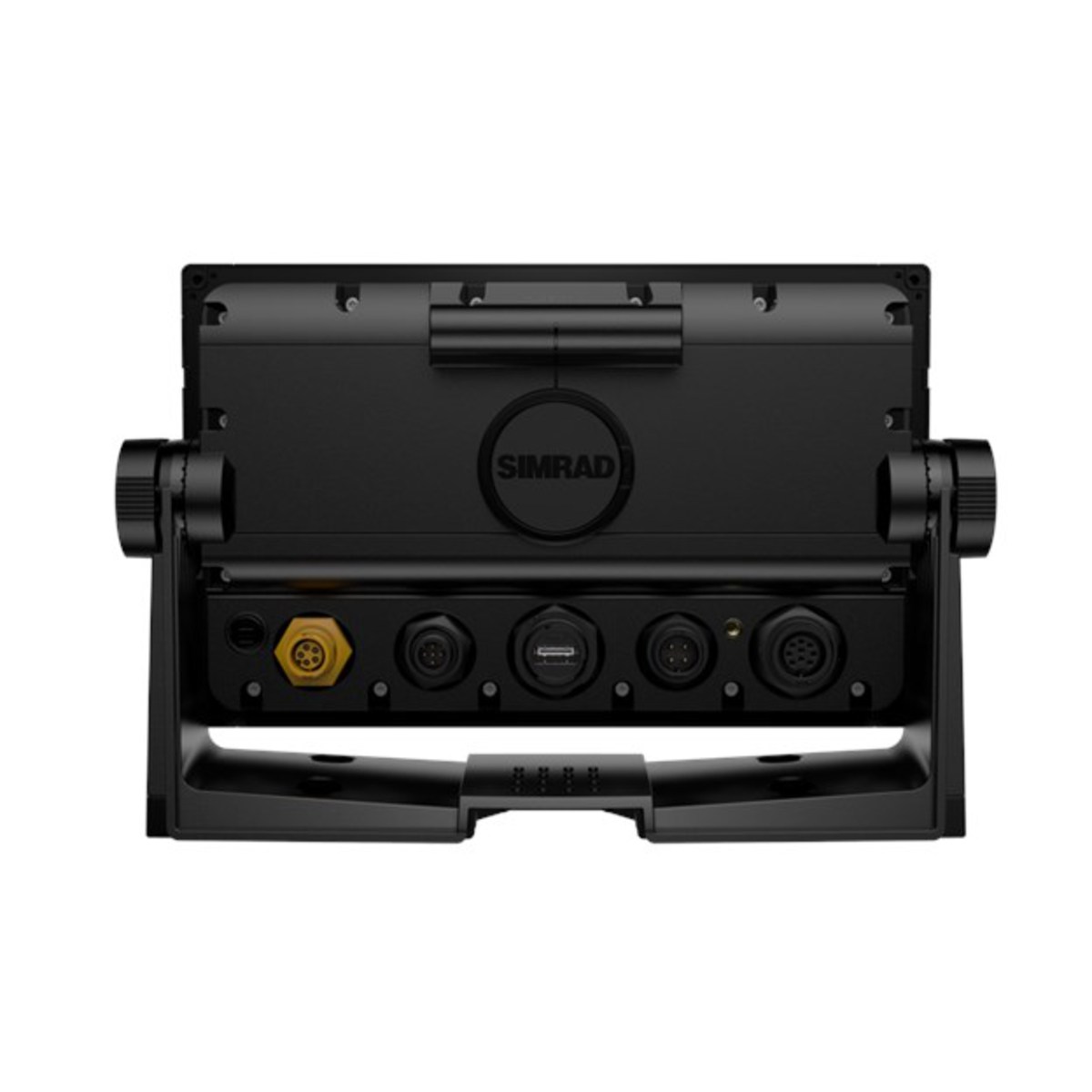

• Sonar Port: 1 × 9-Pin XSONIC
• Ethernet: 1 × 5-Pin Ethernet Port
• NMEA 2000: 1 × Micro-C Port
• Wi-Fi: IEEE 802.11b/g/n
• Bluetooth: Bluetooth 4.0
• Storage: 1 × microSD Slot
• USB: 1 × USB-A
• Video: IP Camera Support
• Supply Voltage: 12V DC (10–17V DC)
• Maximum Power Consumption: 18.8W
• Recommended Fuse: 3A
• Waterproof Rating: IPX6 / IPX7
• Weight: 1.2kg
• Warranty: 2 Years

Dimensions

• Width: 239mm
• Height: 149mm
• Depth: 73mm
• Imperial: 9.4" × 5.9" × 2.9"
• Compass Safe Distance: 50cm
• Mounting Options: Bracket, panel mount or flush mount

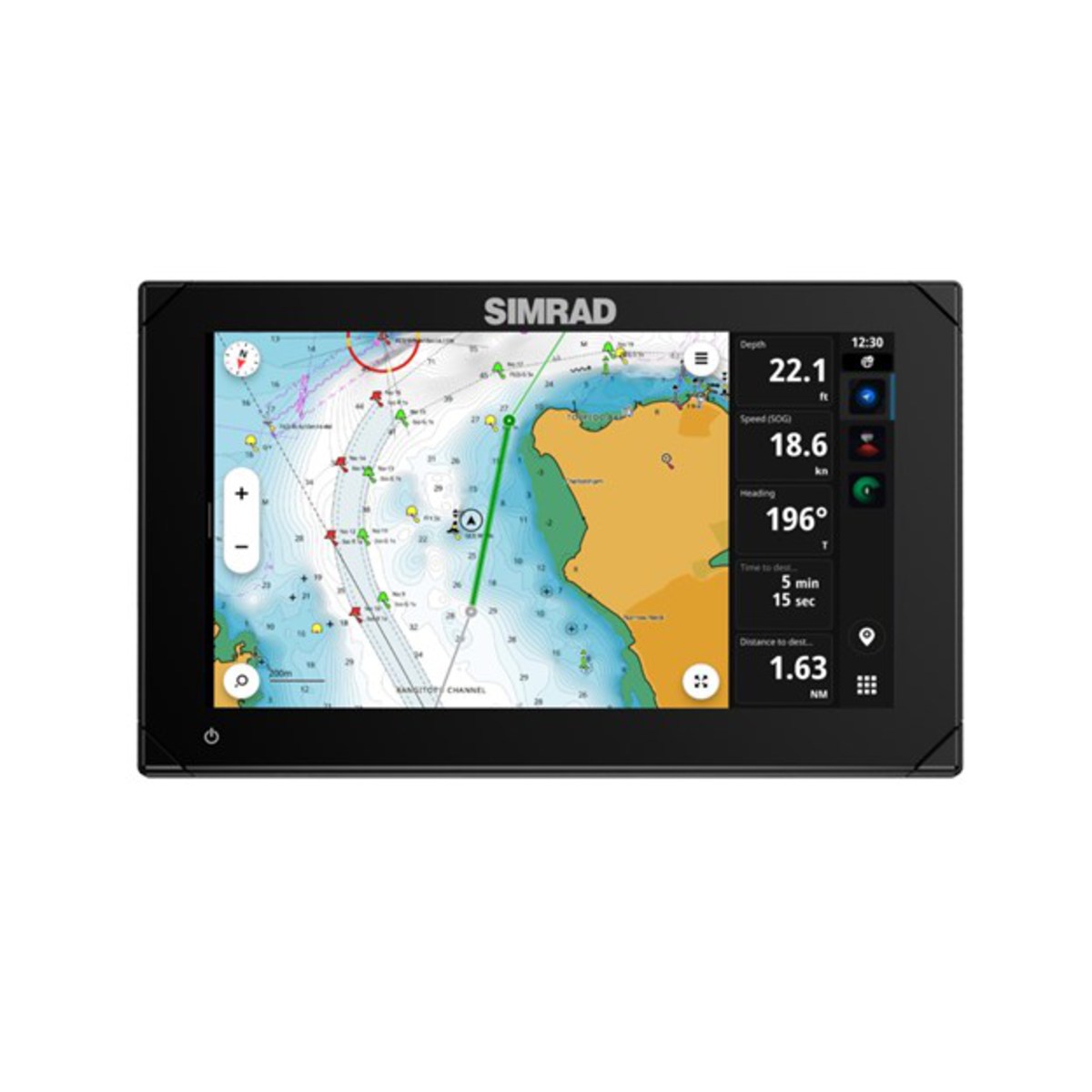

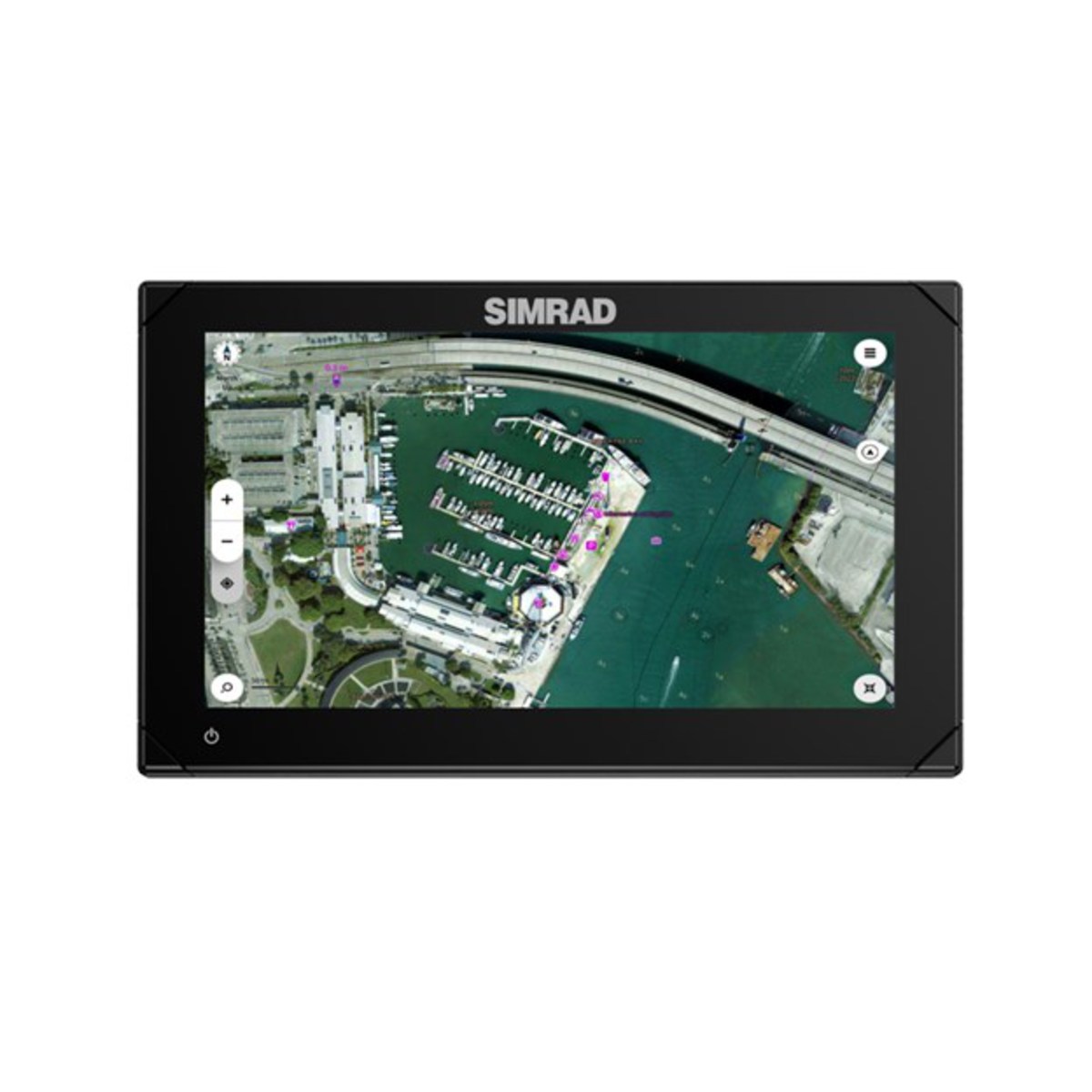

Charting & Navigation

The NSX 3009 supports:

• C-MAP® DISCOVER™ X
• C-MAP® REVEAL™ X
• Selected compatible third-party charting
• Up to 6,000 waypoints
• Up to 500 routes, with a maximum of 100 points per route
• Up to 50 tracks, with up to 12,000 track points

A global basemap is included, but a suitable local chart is required for detailed navigation.

Why You'll Love It

• Bright, responsive 9-inch touchscreen with excellent viewing angles
• Built-in sonar lets you add a compatible transducer without a separate sounder module
• Excellent integration with Simrad radar and autopilot systems
• Flexible networking through Ethernet, NMEA 2000 and wireless connectivity
• Modern, easy-to-use interface
