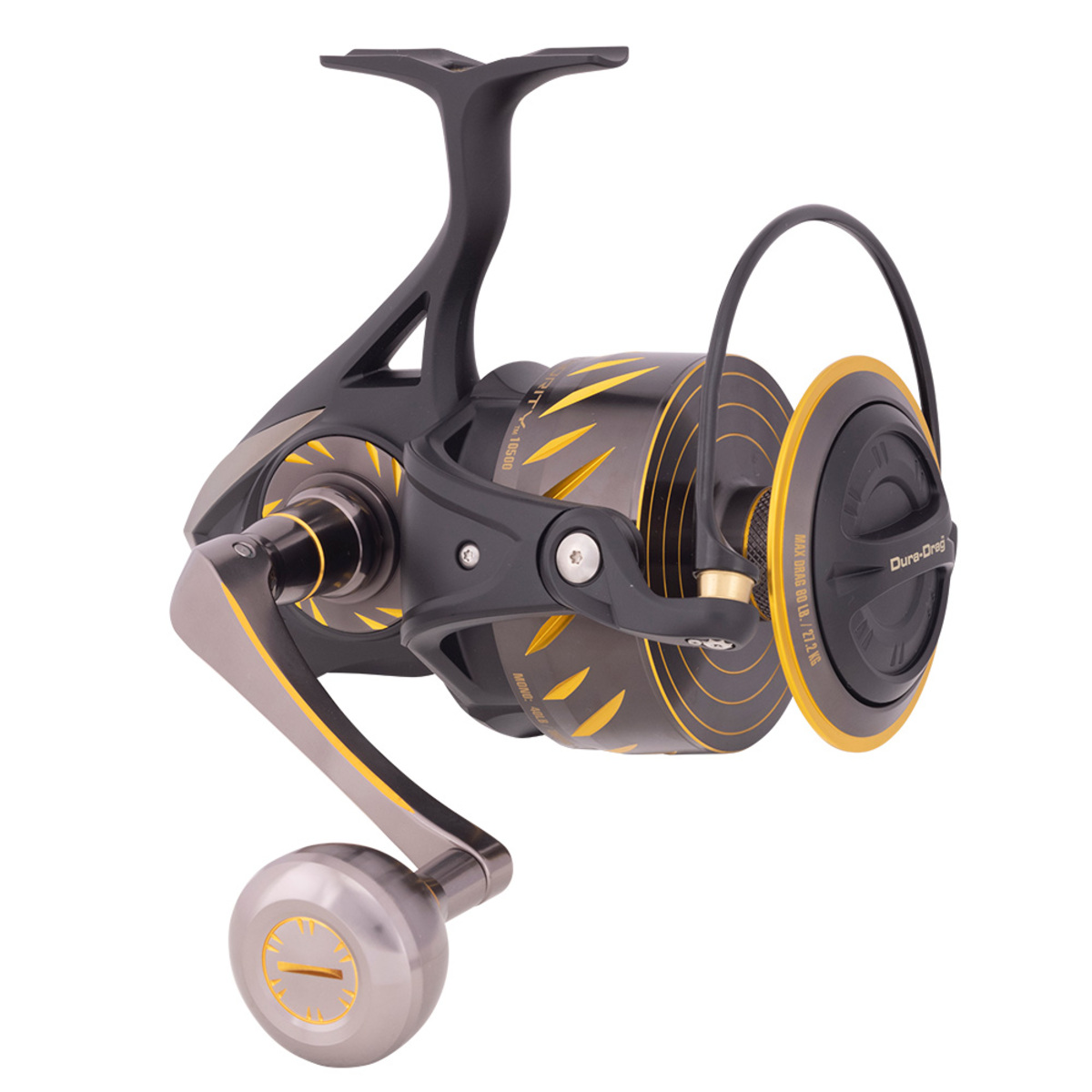

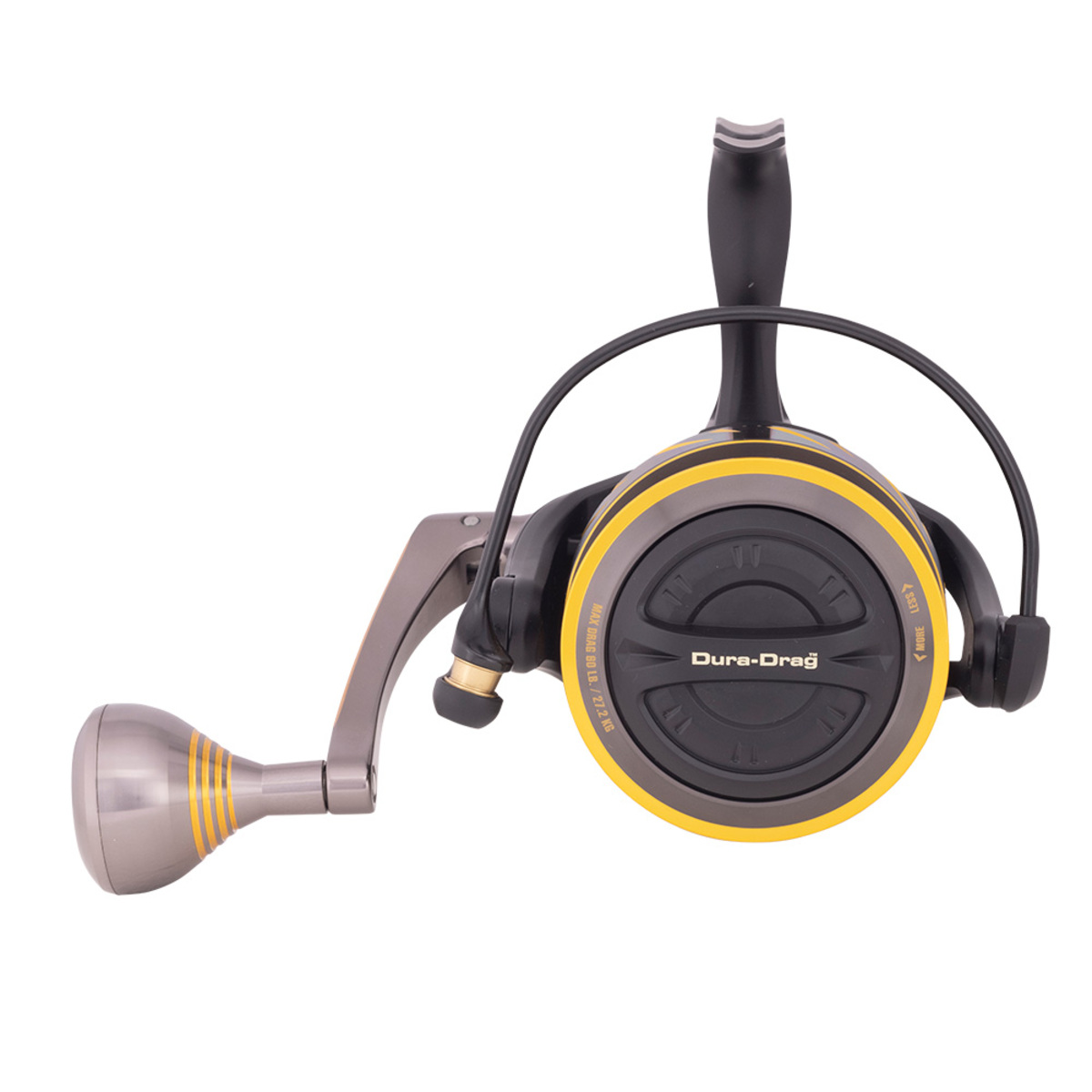

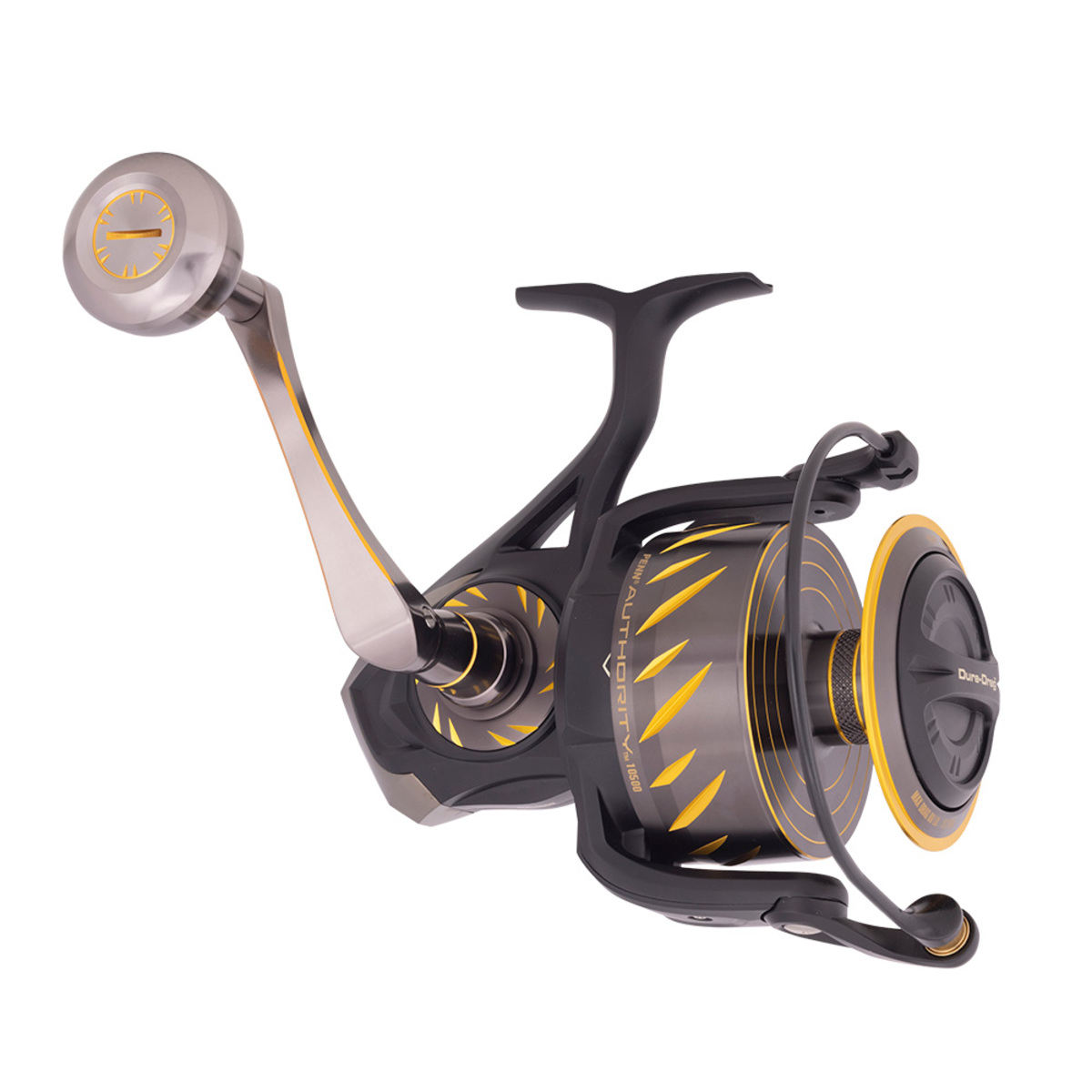

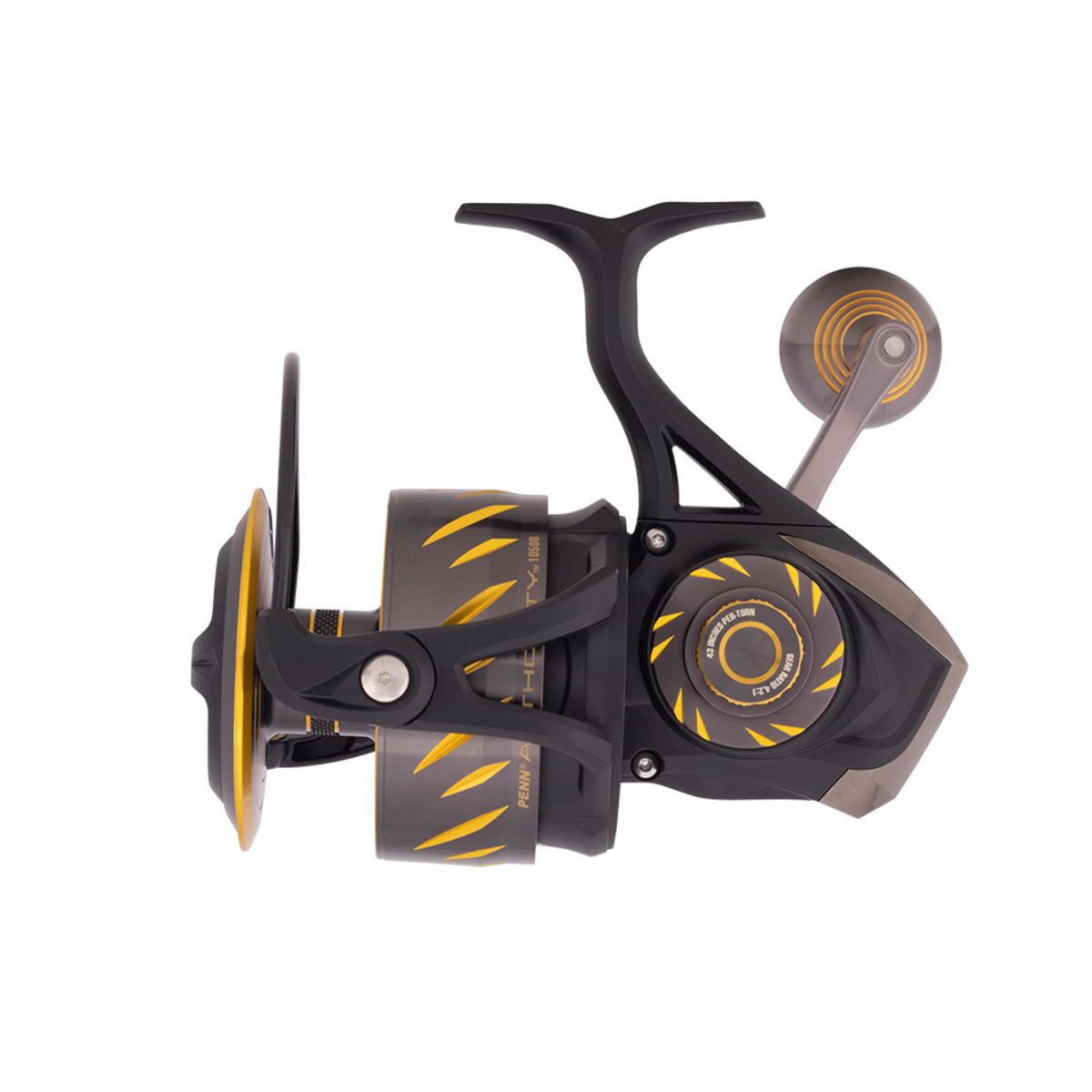

PENN Authority Spinning Reel — ATH10500
PENN’s most advanced saltwater spinning reel yet — the Authority 10500 is the flagship of the Authority spinning range, delivering IPX8 sealed protection, CNC machined gears, and 27.2kg of Dura-Drag™ carbon fibre drag power in a full-metal frame built for the most demanding heavy offshore spinning applications on the market.
Key Features
IPX8 Sealed Body and Spool — Both the body and spool are sealed to the highest water resistance standard in PENN’s spinning lineup, keeping water, salt, and grit out whether you’re grinding through heavy surf, fishing in heavy spray, or taking a dumper on the rocks.
Full Metal Body, Sideplate & Rotor — All-metal construction maintains precise gear alignment under heavy loads, eliminating the flex that causes gear wear and reduces power delivery in composite-bodied reels.
CNC Machined Stainless Main & Pinion Gears — Precision-machined from premium stainless steel for a smooth, durable gear train that stays consistent and true under the extreme sustained pressure of big game fish and heavy line.
Sealed Slammer Drag with Dura-Drag™ — Patented carbon fibre drag material with a Phenolic bonding agent that prevents premature breakdown and blocks water intrusion — eliminating hesitation even at the most extreme drag settings when a big fish is peeling line at full pressure.
12+1 Stainless Steel Bearing System — A premium sealed bearing count delivers silky smooth operation throughout the retrieve, with every bearing protected against saltwater intrusion for long-term performance.
Leveline Slow Oscillation System — Engineered line lay that evenly distributes heavy braid on the spool for consistent, tangle-free casting and retrieval under load.
Hydrophobic Line Roller Bearing — Sealed at the line roller for smooth, consistent line flow under load — protecting one of the first failure points on lesser reels.
Instant Anti-Reverse with Backup — Zero back-play in the handle for immediate, positive hooksets, with a backup system for maximum reliability under extreme loads.
Manual Bail Trip — Manual bail closure for precise control in the most demanding offshore fishing situations.
Braid Ready Spool — Tie braid directly to the textured rubber spool base without monofilament backing.
Specifications
- Model - ATH10500
- SKU - 1563167
- Colour - Silver/Black/Gold
- Gear Ratio - 4.2:1
- Retrieve Per Crank - 109 cm / 43"
- Max Drag - 27.2 kg / 60 lb
- Weight - 1,057 g
- Bearings - 12+1 Stainless Steel
- Drag Type - Dura-Drag™ (Carbon Fibre)
- Spool Material - Aluminium
- Bail Trip - Manual
- Handle - Right/Left (interchangeable)
- Anti-Reverse - Instant Anti-Reverse with Backup
- Braid Capacity - 845yd/50lb, 780yd/65lb, 540yd/80lb
- Mono Capacity (m/mm) - 395m/0.56mm, 330m/0.61mm, 230m/0.71mm
- Mono Capacity (yd/lb) - 435yd/30lb, 360yd/40lb, 255yd/50lb
Common Applications
- Heavy game and big pelagic spinning offshore
- Large popper and stickbait fishing for marlin, giant trevally, and large kingfish
- Heavy surfcasting with large baits in demanding conditions
- Targeting the biggest fish on spinning gear where maximum drag and line capacity are non-negotiable
- Commercial-grade recreational offshore spinning
Why It Works
The 10500 is the Authority at its absolute ceiling — 27.2kg of max drag, 845 yards of 50lb braid capacity, and a 4.2:1 power ratio built for anglers who need maximum torque to stop and turn big game fish. The lower gear ratio at this size is a deliberate choice: when you’re fighting a fish capable of stripping 100 metres of 50lb braid, you need mechanical advantage, not speed. The IPX8 sealed body and spool, CNC stainless gears, and full-metal construction mean the reel is as tough as the fish it’s built to chase — a genuine big game spinning tool.
