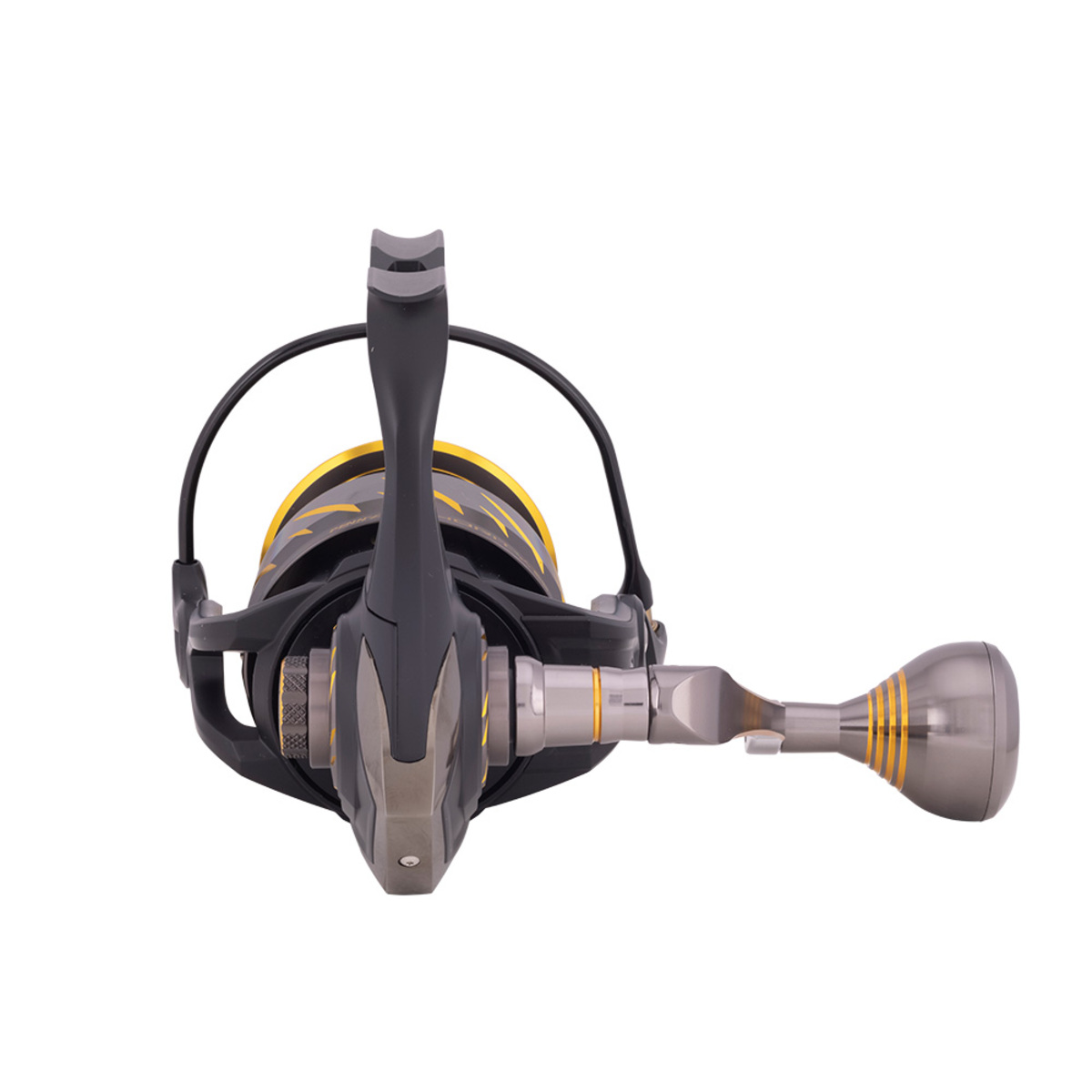

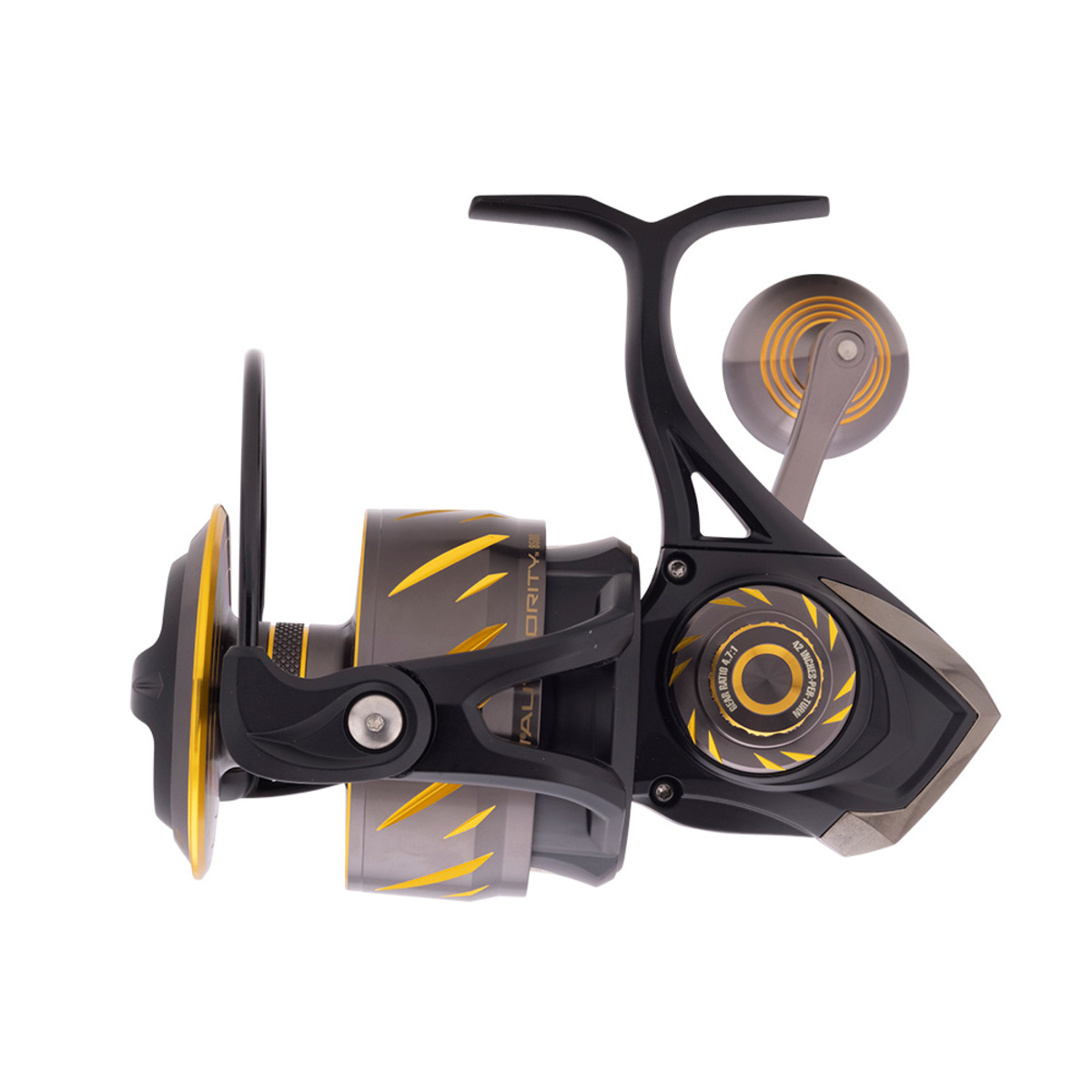

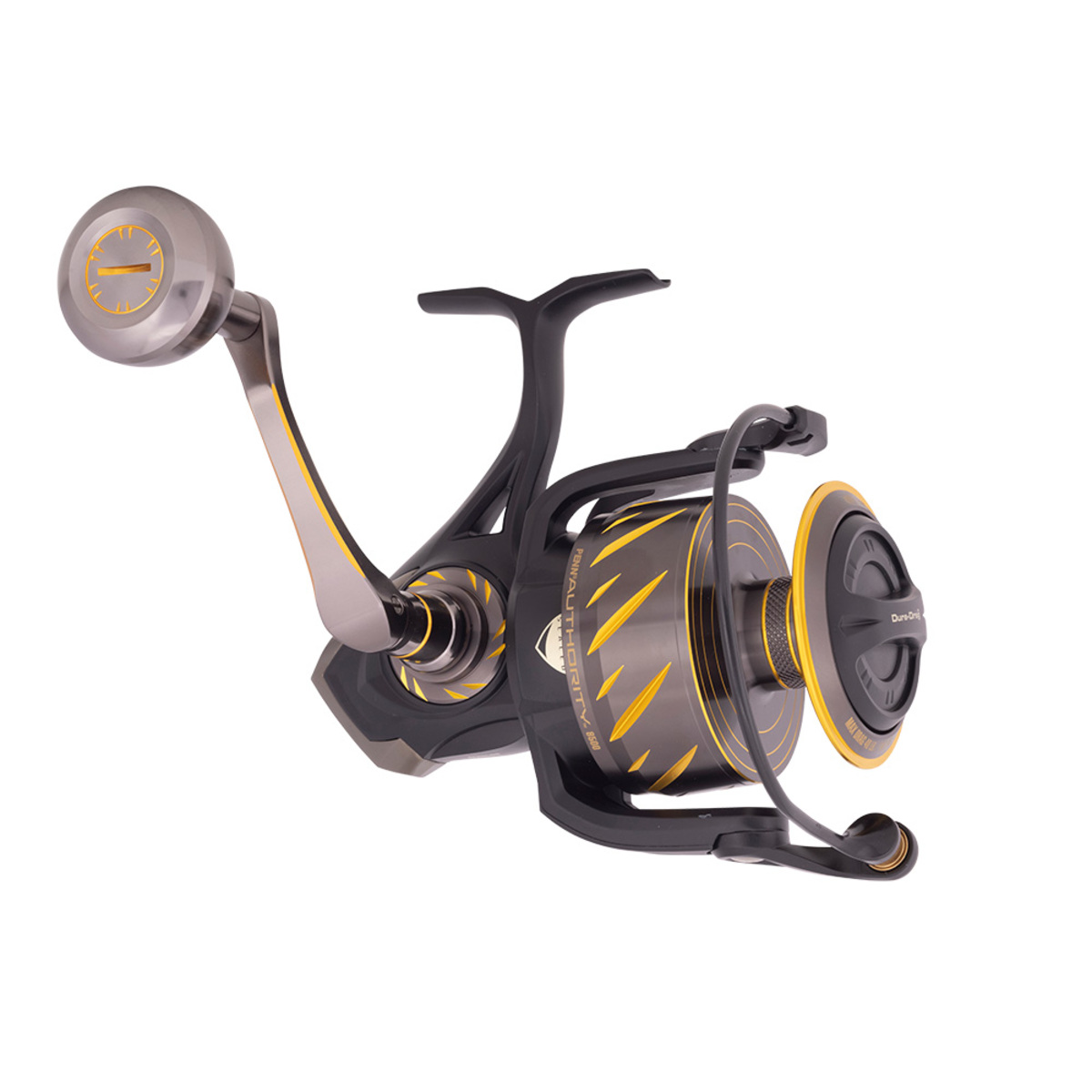

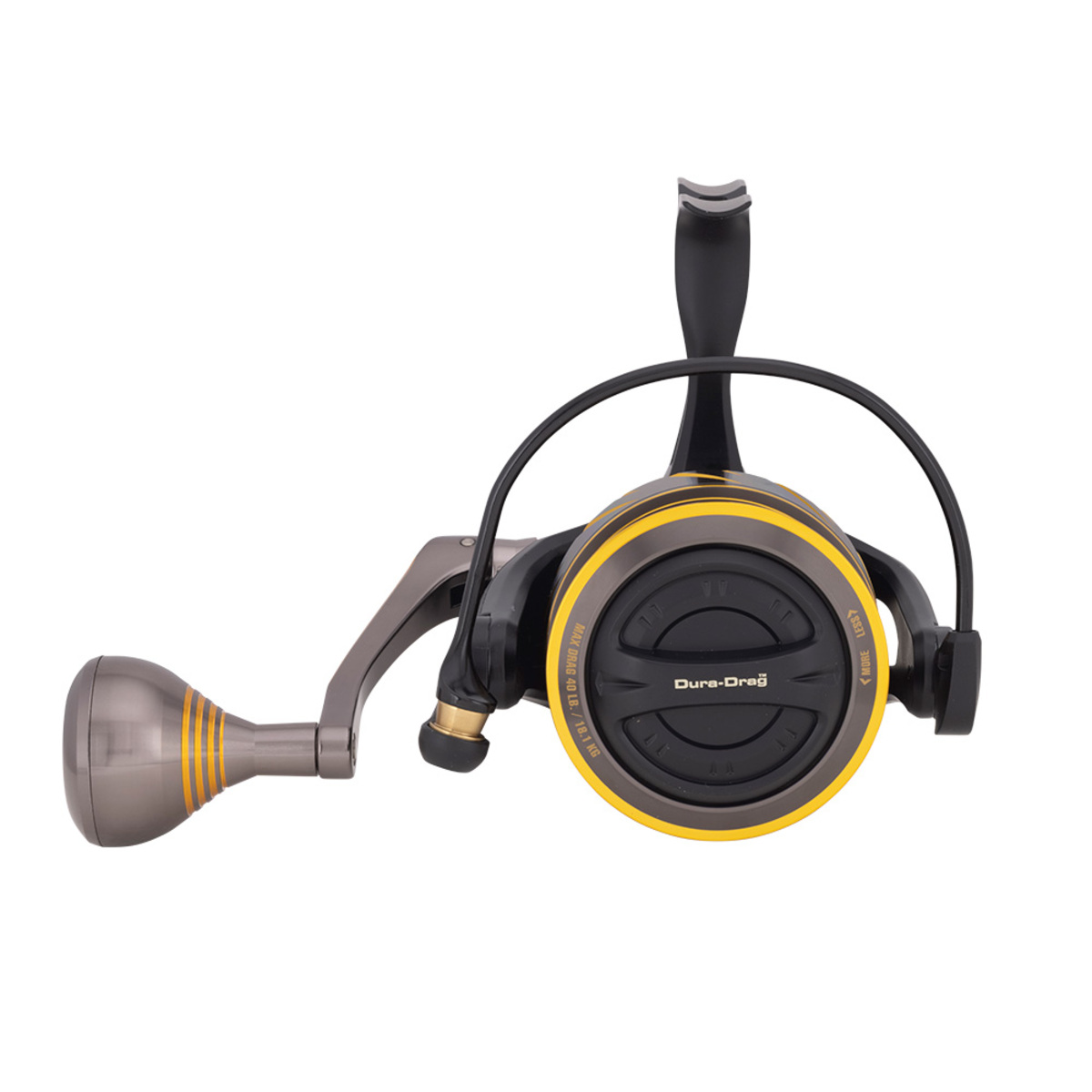

PENN Authority Spinning Reel — ATH8500
PENN’s most advanced saltwater spinning reel yet — the Authority 8500 delivers IPX8 sealed protection, CNC machined gears, and 22.7kg of Dura-Drag™ carbon fibre drag power in a full-metal frame built for the heaviest offshore spinning and surfcasting applications.
Key Features
IPX8 Sealed Body and Spool — Both the body and spool are sealed to the highest water resistance standard in PENN’s spinning lineup, keeping water, salt, and grit out whether you’re grinding through heavy surf, fishing in heavy spray, or taking a dumper on the rocks.
Full Metal Body, Sideplate & Rotor — All-metal construction maintains precise gear alignment under heavy loads, eliminating the flex that causes gear wear and reduces power delivery in composite-bodied reels.
CNC Machined Stainless Main & Pinion Gears — Precision-machined from premium stainless steel for a smooth, durable gear train that stays consistent and true under the sustained pressure of big fish and heavy line.
Sealed Slammer Drag with Dura-Drag™ — Patented carbon fibre drag material with a Phenolic bonding agent that prevents premature breakdown and blocks water intrusion — eliminating hesitation even at the most extreme drag settings with big fish peeling line.
12+1 Stainless Steel Bearing System — A premium sealed bearing count delivers silky smooth operation throughout the retrieve, with every bearing protected against saltwater intrusion for long-term performance.
Leveline Slow Oscillation System — Engineered line lay that evenly distributes line on the spool for consistent, tangle-free casting and retrieval across every session.
Hydrophobic Line Roller Bearing — Sealed at the line roller for smooth, consistent line flow under load — protecting one of the first failure points on lesser reels.
Instant Anti-Reverse with Backup — Zero back-play in the handle for immediate, positive hooksets, with a backup system for added reliability under extreme loads.
Manual Bail Trip — Manual bail closure for precise control when fishing hard in demanding offshore conditions.
Braid Ready Spool — Tie braid directly to the textured rubber spool base without monofilament backing.
Specifications
- Model - ATH8500
- SKU - 1563165
- Colour - Silver/Black/Gold
- Gear Ratio - 4.7:1
- Retrieve Per Crank - 107 cm / 42"
- Max Drag - 22.7 kg / 50 lb
- Weight - 882 g
- Bearings - 12+1 Stainless Steel
- Drag Type - Dura-Drag™ (Carbon Fibre)
- Spool Material - Aluminium
- Bail Trip - Manual
- Handle - Right/Left (interchangeable)
- Anti-Reverse - Instant Anti-Reverse with Backup
- Braid Capacity - 730yd/40lb, 600yd/50lb, 555yd/65lb
- Mono Capacity (m/mm) - 415m/0.46mm, 280m/0.56mm, 240m/0.61mm
- Mono Capacity (yd/lb) - 455yd/20lb, 310yd/30lb, 260yd/40lb
Common Applications
- Heavy offshore spinning and jigging for kingfish and large pelagics
- Heavy surfcasting in demanding conditions
- Rock fishing targeting large species
- Sustained fight fishing where torque matters over retrieve speed
- Any application requiring maximum drag capacity and sealed saltwater protection at this line class
Why It Works
The 8500 is the standard-ratio counterpart to the 8500HS — same IPX8 sealed body and spool, same 22.7kg max drag, same full-metal construction, but with a 4.7:1 gear ratio delivering a smooth, powerful 107cm retrieve built for sustained pressure and torque rather than raw speed. Where the 8500HS suits fast topwater work, the 8500 is the better choice for jigging, heavy bottom fishing, and extended fights where the reel needs to grind rather than sprint. Same proven Authority platform — optimised for the angler who needs maximum pulling power at this size.
