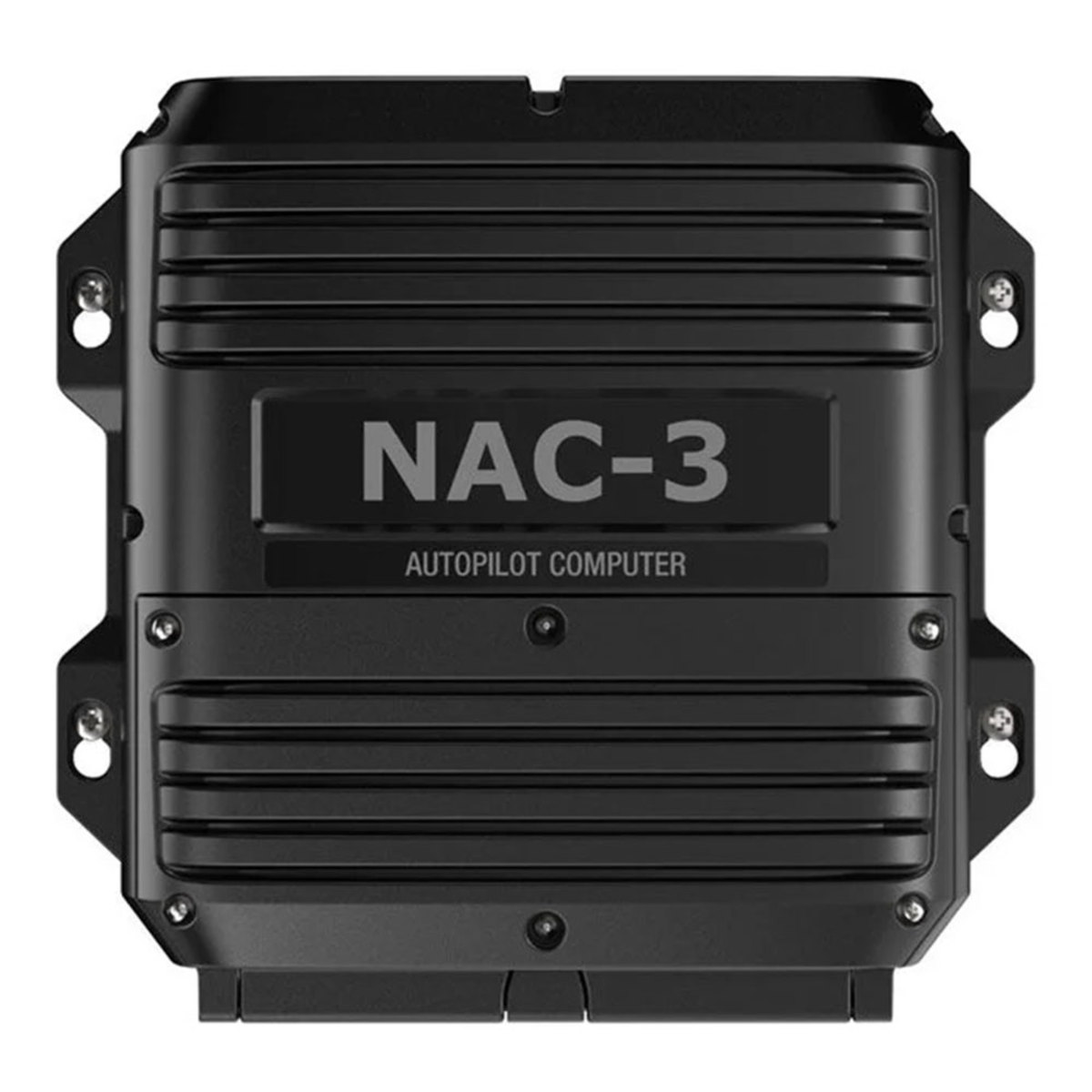

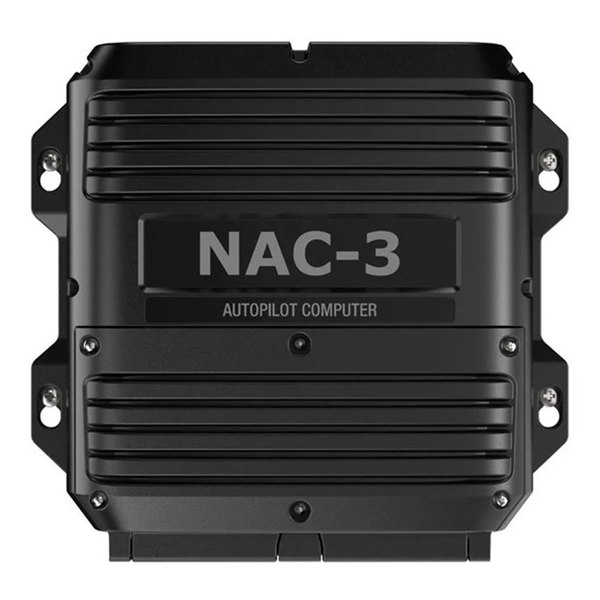

The NAC-3 is the centre of your autopilot system, containing the electronics needed to operate and interface with other key components. The NAC-3 has been designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves.
Features
- Reliable autopilot performance based on Continuum Steering technology
- Recommended for boats above 10 metres (35 feet) in length
- Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive boats
- Supports Simrad RF25 and RF300 rudder feedback units
- NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
- NMEA 0183® input
Specifications:
- Compass Safe0,5m (20 inches)
- Weight0,7 kg (1,6 lbs)
- Power Consumption typical100mA + Drive load
- Supply Voltage12/24VDC +30 -10%
- Drive output12/24VDC. Rev. motor control 30A, 50A peak (1 sec.). Solenoid control: 10A (min. 10mA)
- Operating Temperature Range-15 to +55C (5 to 131F)
- NMEA 2000 Connectivity1x CAN terminal, 1 LEN
- Warranty Period2 years
- Dimensions W x H x D204 x 190 x 57mm (8,1 x 7,5 x 2,2")
- Storage Temperature Range-30C to +70C (-22F to +158F)
- Power Consumption max750W
- Mounting TypeBulkhead
- NMEA 0183 Sentences supportedInput: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)
- Recommended Fuse RatingInternal fuse 30A (Slow)
- WaterproofratingIPx2
- Compasssensor supportNMEA2000, NMEA0183
- Engine Drive systems integrationReversible pump/motor, Solenoid valve on/off
- Rudder sensor supportRF300, RF45X, RF25N, RF70 & VRF
