Powerful, Yet Sensitive!

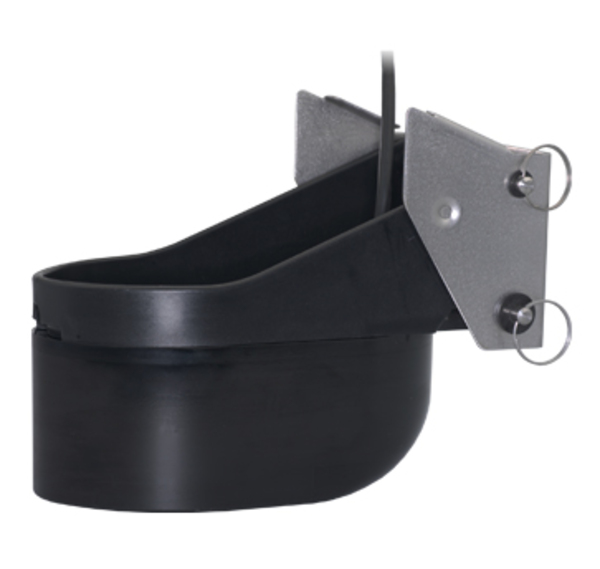

The new TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line broadband transom-mount brings crystal clear imaging to any of today’s fshfnders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fsh separation along with detecting ground fsh holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Transom-Mount, 1 kW HD Digital, Fishing Applications
• Blue-water trolling using 50 kHz
• Deep-water bottom and wreck fshing up to 800 m (2,625’)
Features
• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fshing

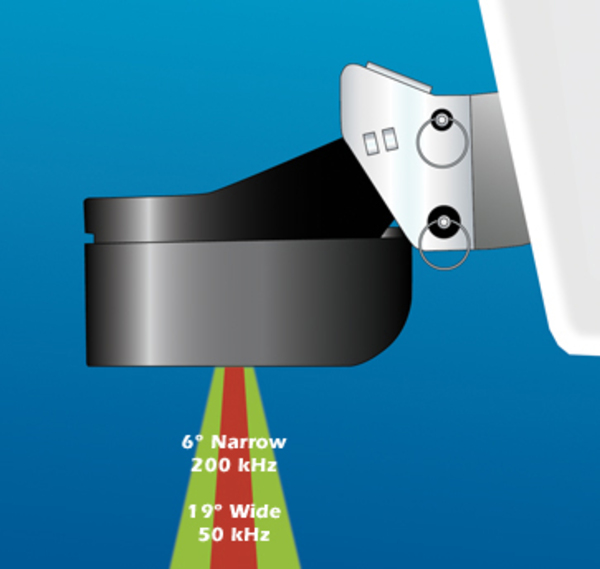

• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600 W or 1 kW sounder
• Depth and fast-response water-temperature sensor
• Kick-up assembly locks in the “up” position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat Size: Up to 12 m (40’)
50 kHz-AE / 200 kHz-BH
Number of Elements and Confguration
Beamwidth (@-3 dB): 19° / 6°
RMS Power (W): 1 kW / 1 kW
TVR: 162 dB / 175 dB
RVR: -173 dB / -183 dB
FOM: -14 dB / -10 dB
Q: 8 / 8
Impedance: 250 Ohm 90 Ohm
MAXIMUM DEPTH RANGE
50 kHz 529 m to 735 m
200 kHz 206 m to 294 m
BEAM DIAMETER VS DEPTH
Depth 50 kHz 200 kHz
9 m 3 m 0.9 m
30 m 10 m 3.3 m
122 m 41 m 13 m
305 m 102 m 32 m

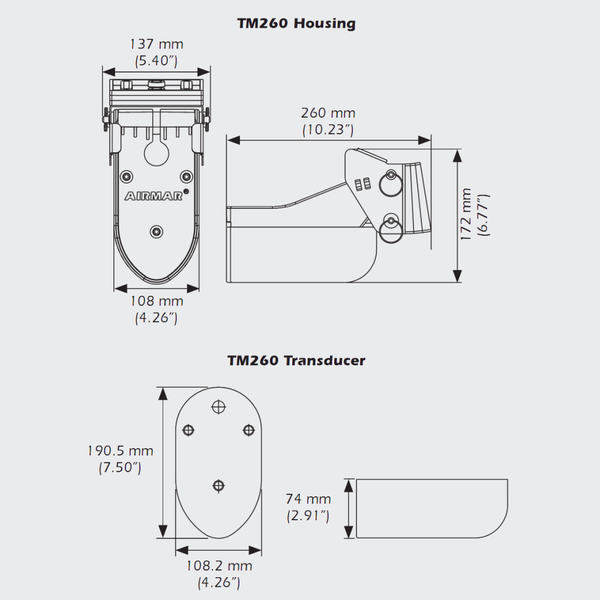

SPECIFICATIONS
Weight: 4 kg (8.9 lb)
Hull Deadrise: Up to 28°
Acoustic Window: Urethane
