Unique design features and Lifetime Actuator warranty make these tabs a great investment.
Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. Made in the USA.
Lectrotab are electromechanical trim tab systems for the leisure & commercial markets, simple installaton & lifetime warranty.

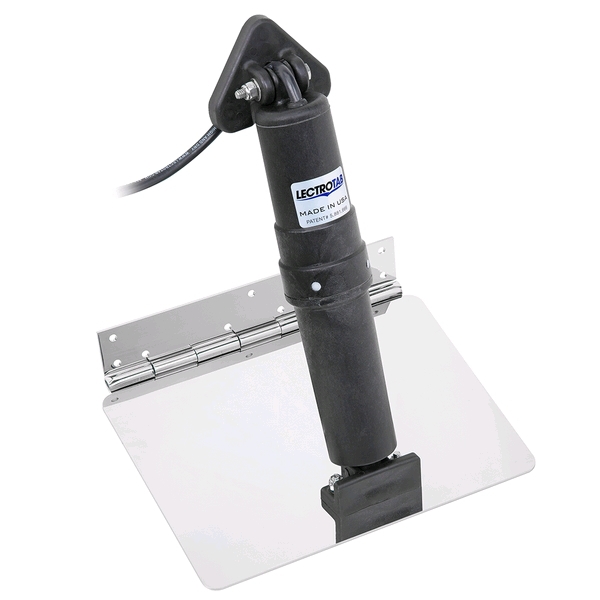

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard profile transom mounting bracket.

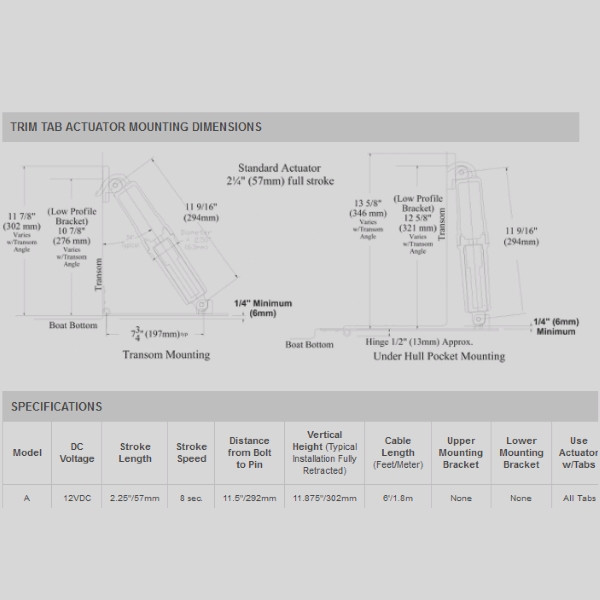

Standard actuators, 12vdc, 2.25" stroke, 8 second stroke time.
FEATURES
Actuator covered by a Lifetime Warranty
Upper ram seal patented location cannot be damaged due to fouled ram or barnacle growth
Utilizes patented internal pressure equalization system
Upgrades to most popular hydraulic and electromechanical systems
Internal brake system prevents unwanted tab movement when under way or backing down
Quiet operation
All actuators fully load tested to push 1000 lbs of force
Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

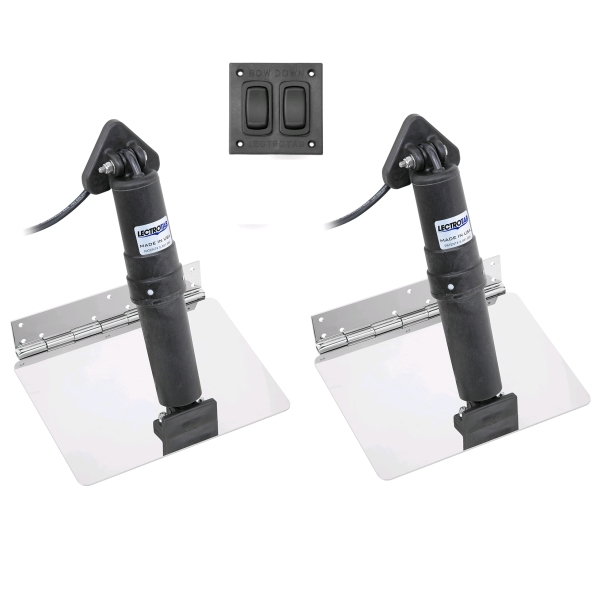

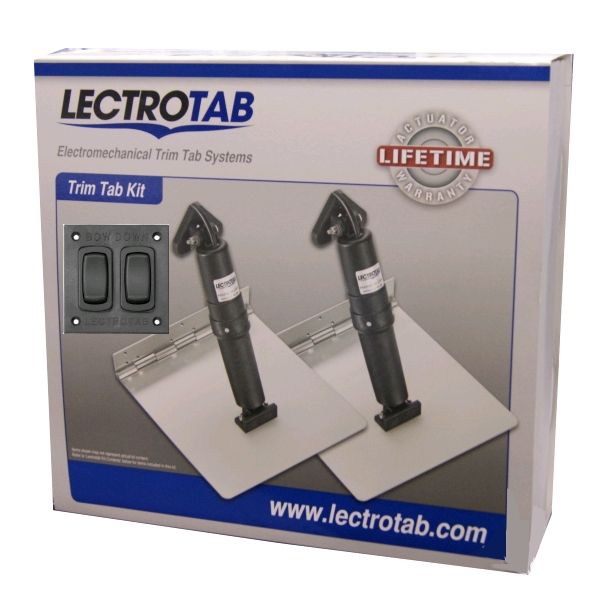

Kit contains:
2 - Actuators with 23' (7m) cable
2 - Flat Stainless Steel 9 x 12" Tabs, 12 Gauge

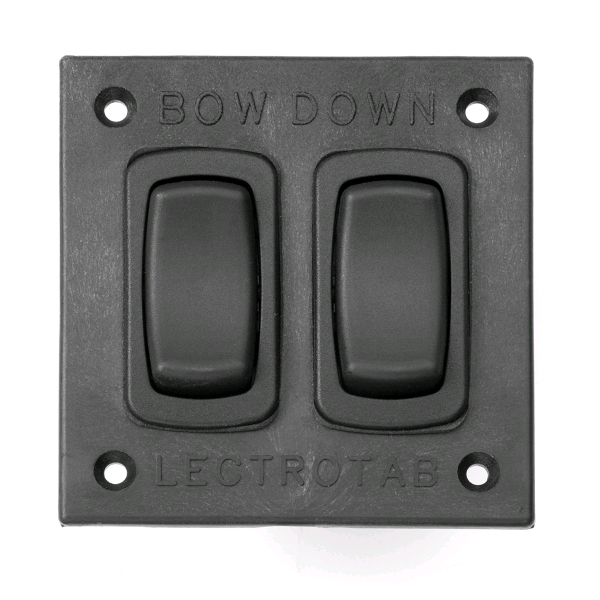

1 - Rocker switch
TRIM TAB DETAILS:
Stainless Steel Trim Tabs
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel (mirror finished stainless steel).
FEATURES
Strong, corrosion resistant 12 gauge, 304 stainless steel
Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
Zinc anodes may be installed for additional galvanic corrosion resistance
Includes carriage bolts and nuts for actuator mounting to tab
