INTRODUCING THE NEW SPIRIT 1.0 EVO
The Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276Wh large integrated lithium battery for long range. The hydrogeneration function is great for a sustainable sailing experience. The safety wristband keeps you safe in case of MOB.

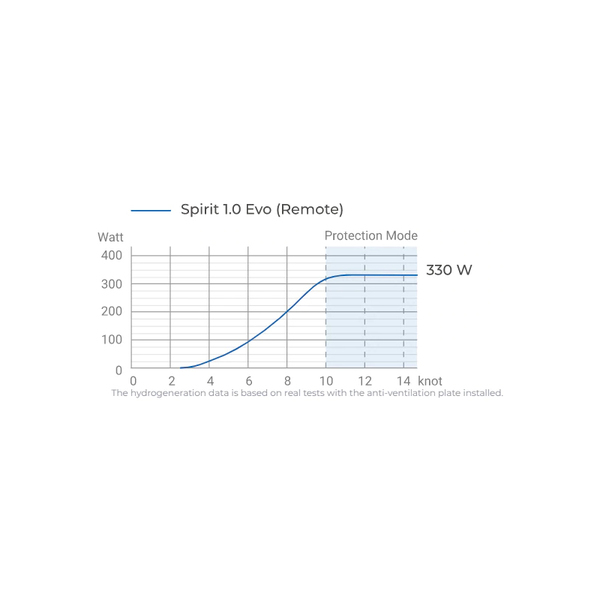

HYDROGENERATION
The Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. The Hydrogeneration is operational between 3 knots to 10 knots. Over 10 knots, Spirit 1.0 Evo will enter protection mode and the recharging power will not go up.

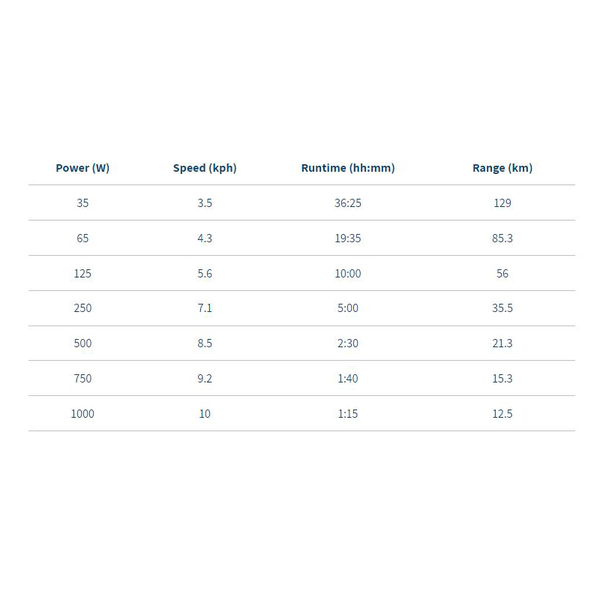

PERFORMANCE
With one charge, you can go 35.5km at an economical throttle.
*The performance data is based on a 12-foot aluminium boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

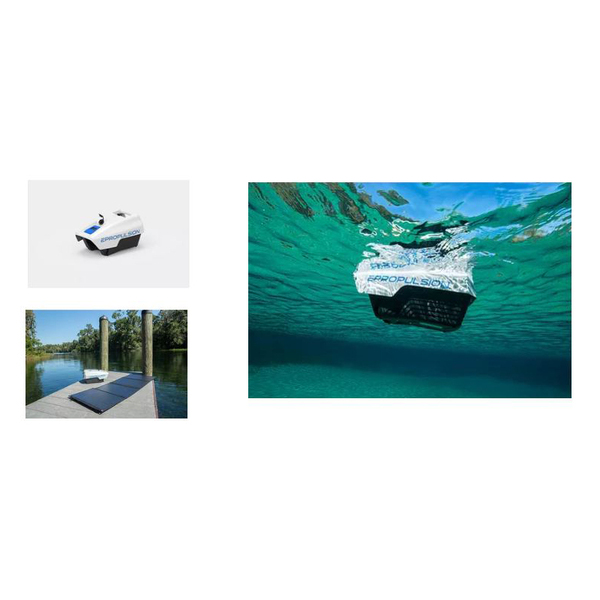

THE BATTERY
The Spirit 1.0 Evo electric outboard motor is designed with a built-in battery. The integrated rechargeable battery is lightweight, weighing only 8.7kg. Its robust and been designed for tough conditions.
- The battery floats - giving you piece of mind when your out and about
- 1276Wh capacity - high energy density in a compact size to build large battery capacity
- 180W solar charging - dual ports allow allow solar charging when discharging. (solar charger and panel not included)

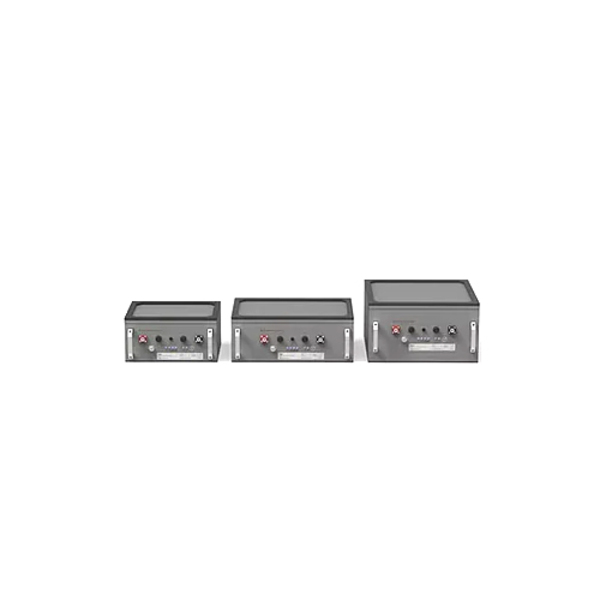

E-SERIES BATTERY
48V lithium battery, the affordable battery solution. Extend the runtime to an entire day by replacing the integrated Spirit battery.
Why choose the E-Series Battery.
- Affordable cost - unit price is as low as $0.5 per watt-hour
- Longer life cycles - 3,000 cycles at 80% DOD
- High energy density - 70% less weight and space than standard lead-acid batteries
DESIGNED FOR PORTABILITY
The Spirit 1.0 Evo outboard with battery is portable & easy to transport. The outboard and battery combined weighs 20kgs.

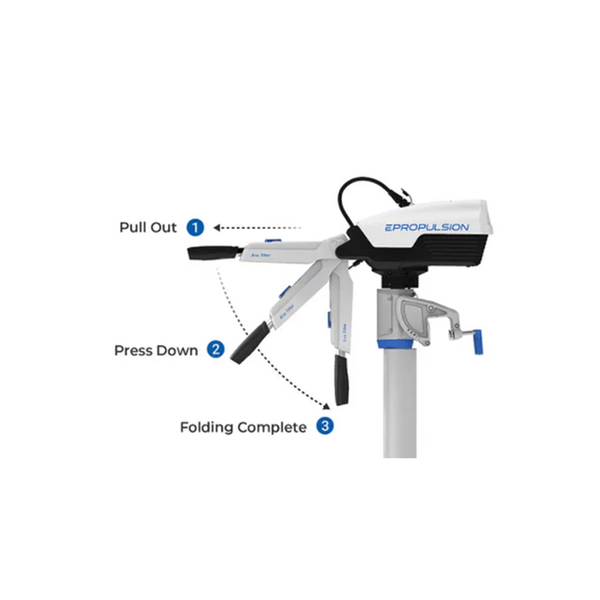

FOLDING TILLER
Quick to pack and deploy your Spirit.

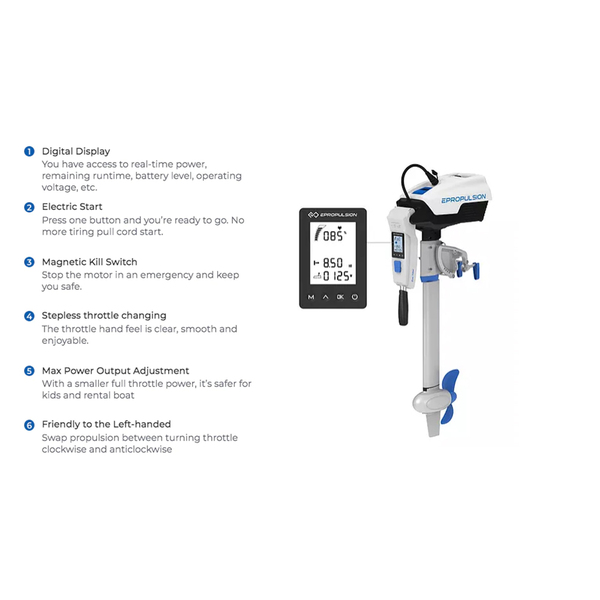

DIGITAL OPERATION
Electric outboard motors are easy to operate and keep you informed of the operation status.

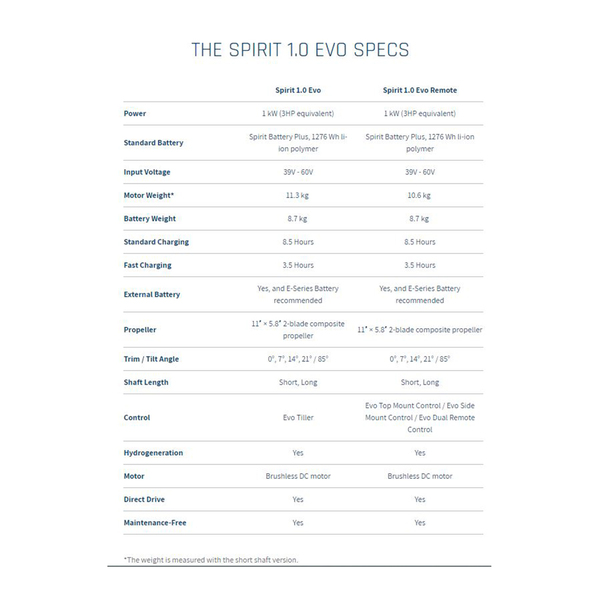

THE SPIRIT 1.0 EVO SPECS
Spirit 1.0 Evo
Power 1 kW (3HP equivalent)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V - 60V
Motor Weight* 11.3 kg
Battery Weight 8.7 kg
Standard Charging 8.5 Hours
Fast Charging 3.5 Hours
External Battery Yes, and E-Series Battery recommended
Propeller 11 × 5.8 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 85°
Shaft Length Short, Long
Control Evo Tiller
Hydrogeneration Yes
Motor Brushless DC motor
Direct Drive Yes
Maintenance-Free Yes
*Please note also available in the Evo 1.0 Remote version. Please enquire
